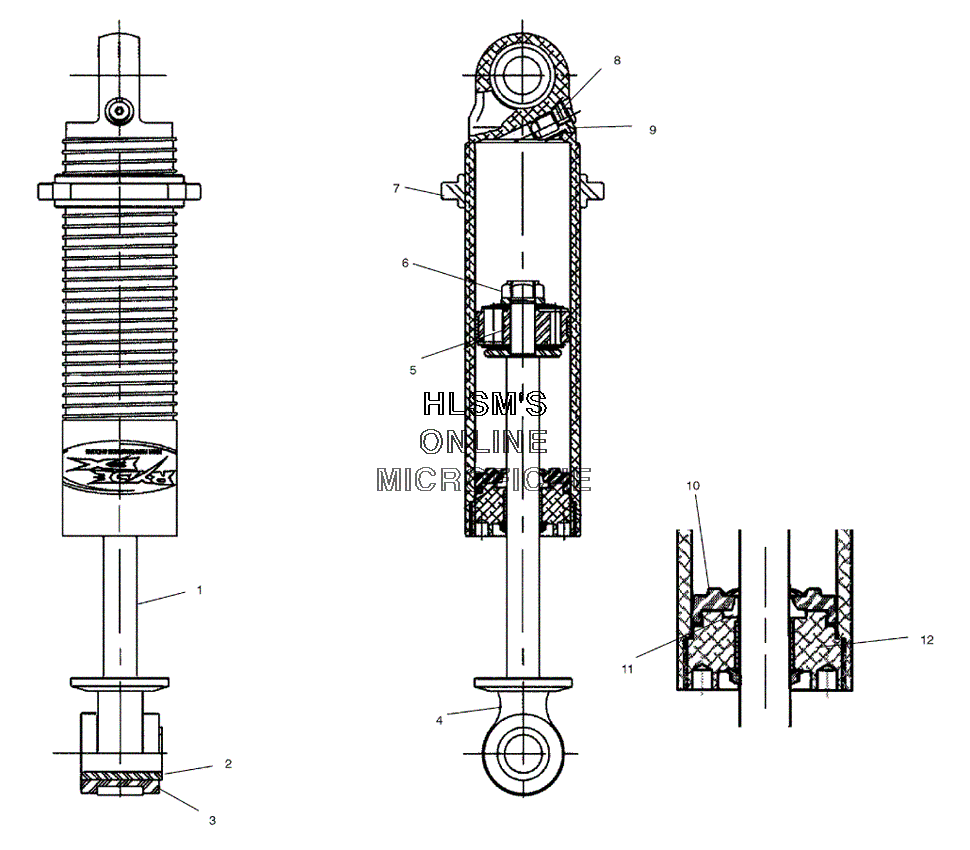

RYDE FX/REAR TRACK SHOCK для Polaris 800 CLASSIC TOURING (S03NT8CS) - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    1700215 SHAFT
    SHAFT
  • 2
    1700069 SLEEVE
    SLEEVE
  • 3
    1700075 BUSHING
    BUSHING
  • 4
    1700011 UPPER MOUNT
    UPPER MOUNT
  • 5
    1700100 ASSY., BANDED PISTON .060" ORIFCE
    ASSY., BANDED PISTON .060" ORIFCE
  • 5
    1700031 PISTON WEAR BAND
    PISTON WEAR BAND
  • 5
    1700077 TOP - OUT WASHER
    TOP - OUT WASHER
  • 5
    1700078 BACK - UP WASHER
    BACK - UP WASHER
  • 6
    1700216 NUT
    NUT
  • 7
    1700033 NUT, SPRING RETAINER
    NUT, SPRING RETAINER
  • 8
    1700056 VALVE SCREW
    VALVE SCREW
  • 9
    1700184 PRESS - VALVE ASSY
    PRESS - VALVE ASSY
  • 9
    1700047 PRESS - VALVE O - RING
    PRESS - VALVE O - RING
  • 10
    1700156 CYL HEAD ASSY. 215098 - 100
    CYL HEAD ASSY. 215098 - 100
  • 11
    1700212 Body
    Body
  • 12
    1700007 CYL HEAD ASSY (1/2" ROD)
    CYL HEAD ASSY (1/2" ROD)
  • 12
    7042141 SHOCK - REAR TRACK
    SHOCK - REAR TRACK
