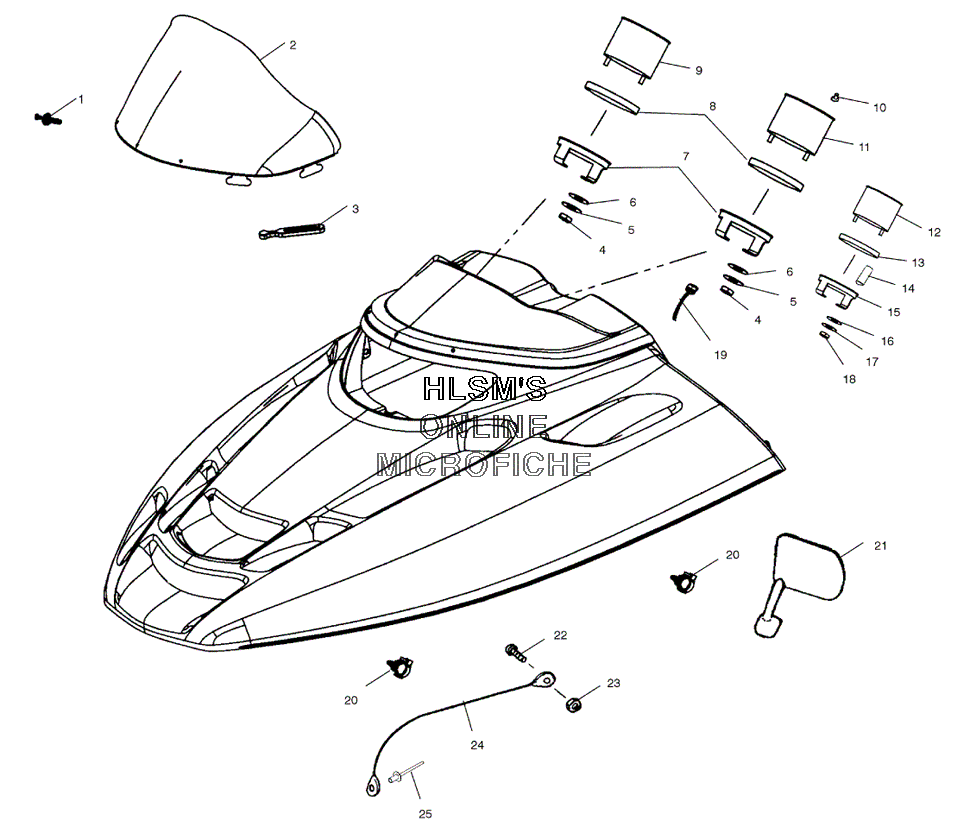

WINDSHIELD/GUAGES/HOOD RETAINER для Polaris 800 CLASSIC TOURING (S03NT8CS) - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    7621509 RIVET, PLASTI - LOCK
    RIVET, PLASTI - LOCK
  • 2
    2872910 WINDSHIELD, EDGE 17" HIGH FLRD
    WINDSHIELD, EDGE 17" HIGH FLRD
  • 3
    5410970 RETAINER, WINDSHIELD,
    RETAINER, WINDSHIELD,
  • 4
    3280158 NUT
    NUT
  • 5
    3280156 WASHER, SPLIT LOCK
    WASHER, SPLIT LOCK
  • 6
    3280157 WASHER, FLAT
    WASHER, FLAT
  • 7
    3280210 BRACKET, TACH/SPEEDO, 5"
    BRACKET, TACH/SPEEDO, 5"
  • 8
    3280209 CUSHION, TACH/SPEEDO, RUBBER
    CUSHION, TACH/SPEEDO, RUBBER
  • 9
    3280413 ASSY. - TACH, 5", 6P, W/REV, WHT/BK
    ASSY. - TACH, 5", 6P, W/REV, WHT/BK
  • 9
    4030015 BULB TAILLIGHT/TACH/SPEEDO
    BULB TAILLIGHT/TACH/SPEEDO
  • 10
    3280186 KNOB, TRIP ODOMETER (LEFT) THD.
    KNOB, TRIP ODOMETER (LEFT) THD.
  • 11
    3280411 ASSY. - SPD, 5", 120MPH, WH/BK, W/O AN
    ASSY. - SPD, 5", 120MPH, WH/BK, W/O AN
  • 11
    4030015 BULB TAILLIGHT/TACH/SPEEDO
    BULB TAILLIGHT/TACH/SPEEDO
  • 12
    3280410 ASSY. - FUEL GAUGE, 2" BCKLT, WHT/BK
    ASSY. - FUEL GAUGE, 2" BCKLT, WHT/BK
  • 12
    4060139 FUSE
    FUSE
  • 13
    3280230 CUSHION, FUELGAUGE (2"), RUBBER
    CUSHION, FUELGAUGE (2"), RUBBER
  • 14
    3280228 SPACER, BRACKET (FUELGAUGE)
    SPACER, BRACKET (FUELGAUGE)
  • 15
    3280229 BRACKET, FUEL GAUGE
    BRACKET, FUEL GAUGE
  • 16
    3280231 WASHER
    WASHER
  • 17
    3280233 WASHER, SPLITLOCK
    WASHER, SPLITLOCK
  • 18
    3280232 NUT
    NUT
  • 19
    3280385 CABLE - SPEEDOMETER
    CABLE - SPEEDOMETER
  • 20
    4010589 CLIP - PLASTIC, DART NYLON
    CLIP - PLASTIC, DART NYLON
  • 21
    2632246-070 ASSY. - MIRROR (LEFT) (BLACK)
    ASSY. - MIRROR (LEFT) (BLACK)
  • 21
    2632247-070 ASSY. - MIRROR (RIGHT) (BLACK)
    ASSY. - MIRROR (RIGHT) (BLACK)
  • 21
    7556088 WASHER, FLAT
    WASHER, FLAT
  • 21
    7546703 NUT, NYLOK
    NUT, NYLOK
  • 22
    7512018 SCREW
    SCREW
  • 23
    7541925 NUT, NYLOK
    NUT, NYLOK
  • 24
    7080521 CABLE, HOOD RETAINER
    CABLE, HOOD RETAINER
  • 25
    7661637 RIVET, INTERLOCK, Z
    RIVET, INTERLOCK, Z
