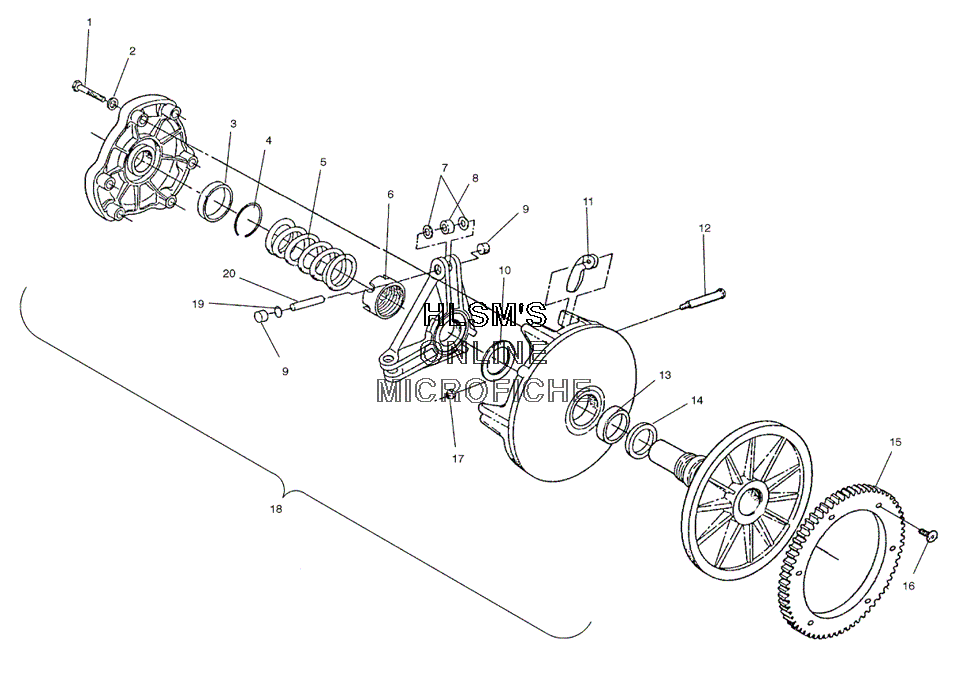

CLUTCH - DRIVE для Polaris 800 CLASSIC TOURING (S03NT8CS) - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    7512265 BOLT
    BOLT
  • 2
    7552801 WASHER, SPRING LOCK
    WASHER, SPRING LOCK
  • 3
    3514347 BEARING, COVER
    BEARING, COVER
  • 4
    7710417 RING, RETAINING, COVER
    RING, RETAINING, COVER
  • 5
    7042083 SPRING - CLUTCH (BLACK)/GREEN
    SPRING - CLUTCH (BLACK)/GREEN
  • 6
    5020425 NUT, JAM
    NUT, JAM
  • 7
    5430945 WASHER
    WASHER
  • 8
    1321622 ASSY., ROLLER AND BUSHING (3)
    ASSY., ROLLER AND BUSHING (3)
  • 9
    5430445 BUTTON, GUIDE
    BUTTON, GUIDE
  • 10
    5210754 SPACER, .050 (.050 INCH)
    SPACER, .050 (.050 INCH)
  • 10
    5210753 SPACER, .032 (.032 INCH)
    SPACER, .032 (.032 INCH)
  • 10
    5242981 SPACER, .025 (.025 INCH)
    SPACER, .025 (.025 INCH)
  • 10
    5210752 SPACER, .020 (.020 INCH)
    SPACER, .020 (.020 INCH)
  • 11
    1321585 WT/BUSH.ASSY.
    WT/BUSH.ASSY.
  • 12
    7515105 PIN, WT., HARDENED
    PIN, WT., HARDENED
  • 13
    3576502 BEARING, SLEEVE
    BEARING, SLEEVE
  • 14
    5010188 INSERT, MOVEABLE
    INSERT, MOVEABLE
  • 15
    5131062 GEAR - RING
    GEAR - RING
  • 16
    7515351 BOLT
    BOLT
  • 17
    7541906 NUT FLEXLOC
    NUT FLEXLOC
  • 18
    1322022 ASSY. - DRIVE CLUTCH, ES, BASIC, #125 (INCL. ALL LESS 5, 11)
    ASSY. - DRIVE CLUTCH, ES, BASIC, #125 (INCL. ALL LESS 5, 11)
  • 19
    2200387 KIT, SHIM, DRIVE CLUTCH
    KIT, SHIM, DRIVE CLUTCH
  • 20
    5133079 PIN - ROLLER, 1", SBN
    PIN - ROLLER, 1", SBN
