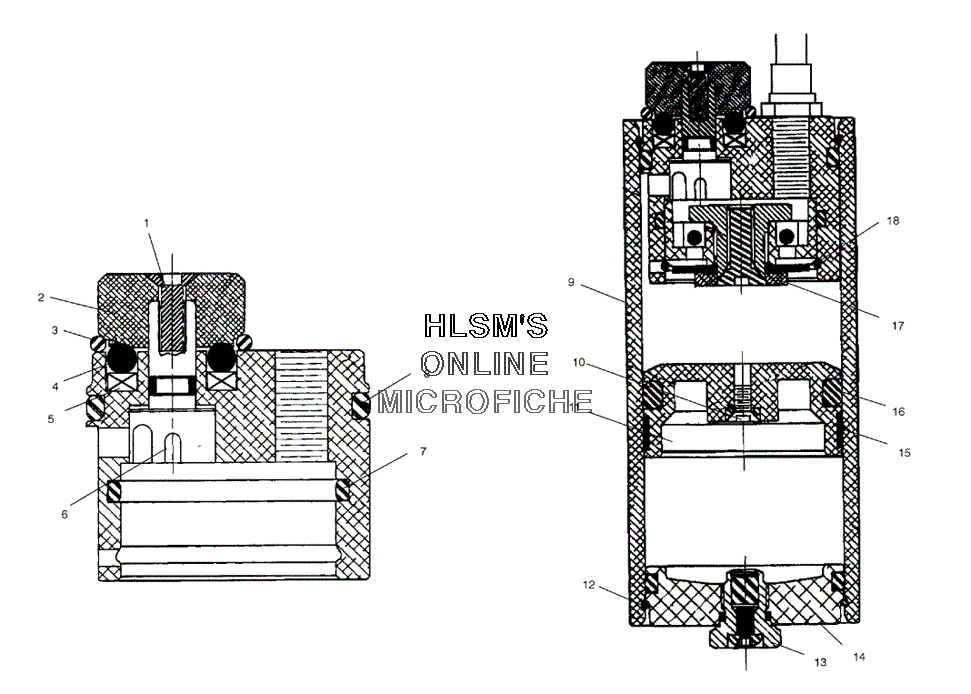

SUSPENSION - COMPRESSION DAMPING RESERVOIR для Polaris 500 XC SP EDGE (S03NP5CSA/B) - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    1500223 SCREW
    SCREW
  • 2
    1500224 KNOB - DAMP ADJUST
    KNOB - DAMP ADJUST
  • 3
    1500253 O - RING
    O - RING
  • 4
    1500226 BALL
    BALL
  • 5
    1500225 SPRING
    SPRING
  • 6
    1500254 DRUM, COMPRESSION DAMPING
    DRUM, COMPRESSION DAMPING
  • 7
    1500227 O - RING
    O - RING
  • 8
    1500228 O - RING
    O - RING
  • 9
    1500325 BODY
    BODY
  • 10
    1500161 SCREW/O - RING ASSY.
    SCREW/O - RING ASSY.
  • 11
    1500235 PISTON, FLOAT, ASSY.
    PISTON, FLOAT, ASSY.
  • 12
    1500236 RING, RETAINING
    RING, RETAINING
  • 13
    1500232 SCREW
    SCREW
  • 14
    1500231 RES.END CAP ASSY.
    RES.END CAP ASSY.
  • 15
    1500230 BEARING, EXTERNAL
    BEARING, EXTERNAL
  • 16
    1500229 SEAL, O - RING
    SEAL, O - RING
  • 17
    1500324 PLATE, DAMPING, 4 - HOLE
    PLATE, DAMPING, 4 - HOLE
  • 18
    1500233 RING, RETAINING
    RING, RETAINING
  • 18
    1500263 HOUSING - COMP.DAMP. (INCL. 1 - 8)
    HOUSING - COMP.DAMP. (INCL. 1 - 8)
  • 18
    1500329 RESERVOIR, ASSY., W/GROOVE (INCL. 1 - 18)
    RESERVOIR, ASSY., W/GROOVE (INCL. 1 - 18)
