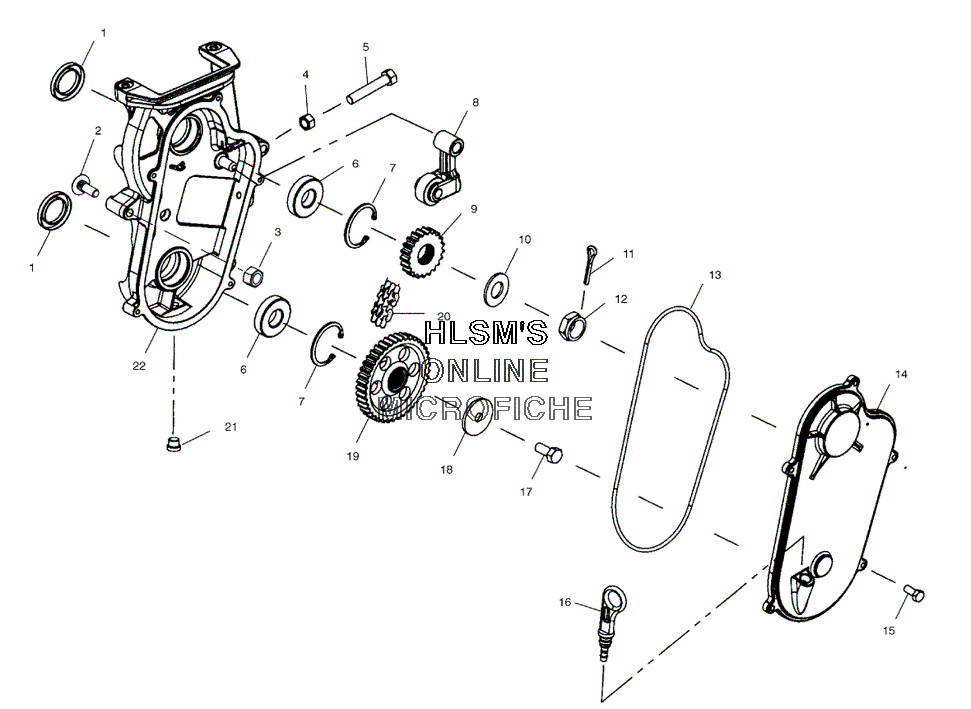

CHAINCASE ASSEMBLY для Polaris 500 XC SP EDGE (S03NP5CSA/B) - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    3610030 SEAL, OIL
    SEAL, OIL
  • 2
    7515477 SCREW, CARRIAGE
    SCREW, CARRIAGE
  • 3
    7542451 NUT, NYLOK
    NUT, NYLOK
  • 4
    5132237 NUT - CHAIN ADJUSTER
    NUT - CHAIN ADJUSTER
  • 5
    7512470 SCREW
    SCREW
  • 6
    3514309 BEARING, BALL
    BEARING, BALL
  • 7
    7718406 RING, RETAINING
    RING, RETAINING
  • 8
    1332213 TIGHTENER, CHAINCASE
    TIGHTENER, CHAINCASE
  • 8
    3553002 BEARING
    BEARING
  • 8
    5630123 WHEEL, C/C IDLER
    WHEEL, C/C IDLER
  • 8
    7558702 WASHER THRUST
    WASHER THRUST
  • 8
    7662210 PIN, CHAIN TIGHTENER
    PIN, CHAIN TIGHTENER
  • 8
    5630958 TIGHTENER, CHAINCASE
    TIGHTENER, CHAINCASE
  • 9
    3221098 SPKT, 22T, 3/4W, 15 SPL, HV, PM (500)
    SPKT, 22T, 3/4W, 15 SPL, HV, PM (500)
  • 9
    3221099 SPKT, 23T, 3/4W, 15 SPL, HV, PM (600)
    SPKT, 23T, 3/4W, 15 SPL, HV, PM (600)
  • 10
    7571620 WASHER, SPRING
    WASHER, SPRING
  • 11
    7661401 PIN, COTTER
    PIN, COTTER
  • 12
    7542811 NUT
    NUT
  • 13
    5411497 GASKET, O - RING
    GASKET, O - RING
  • 14
    5132368 CVR, CHNCASE, 7.92 CD, ALUM
    CVR, CHNCASE, 7.92 CD, ALUM
  • 15
    7512242 SCREW
    SCREW
  • 16
    1332250 ASSY. - DIPSTICK, W/MAGNET, EDGE
    ASSY. - DIPSTICK, W/MAGNET, EDGE
  • 17
    7517979 SCREW
    SCREW
  • 18
    7571618 WASHER, SPRING
    WASHER, SPRING
  • 19
    3222099 SPKT, 40T, 15T SPL, HYVO, PM (500)
    SPKT, 40T, 15T SPL, HYVO, PM (500)
  • 19
    3222108 SPKT, 39T, 3/4W, 15T, HYVO, PM (600)
    SPKT, 39T, 3/4W, 15T, HYVO, PM (600)
  • 20
    3221109 CHAIN, HYVO.74P, 3/4W
    CHAIN, HYVO.74P, 3/4W
  • 21
    7052115 PLUG
    PLUG
  • 22
    5132773 CHAINCASE - 7.92 CD, ALUM
    CHAINCASE - 7.92 CD, ALUM
