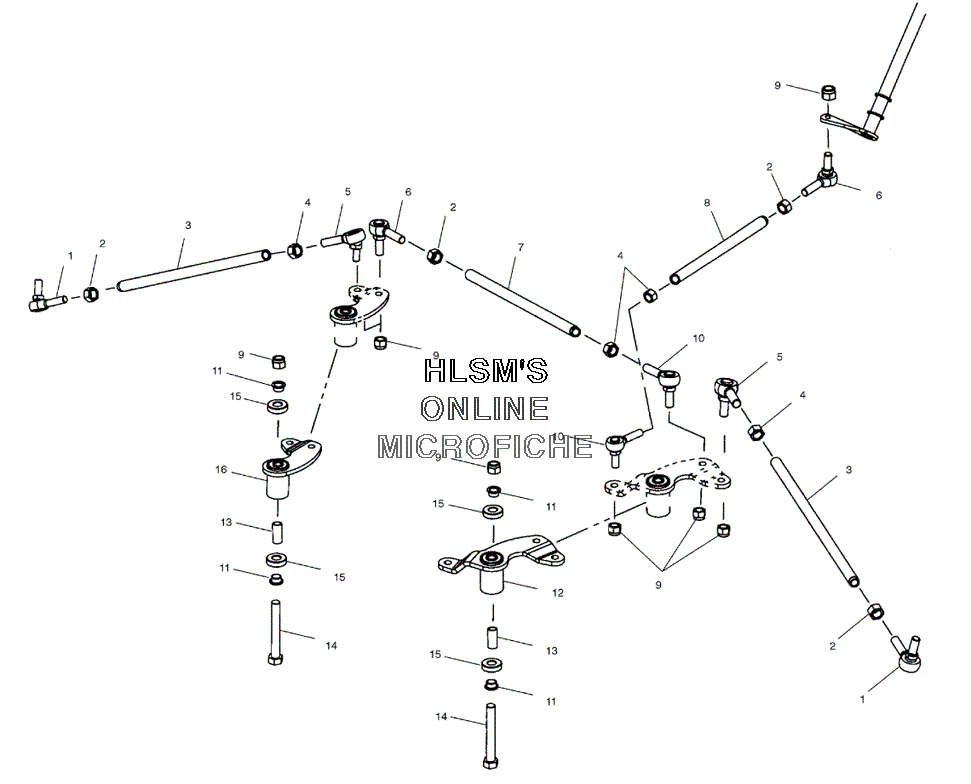

STEERING LINKAGE для Polaris 500 XC SP EDGE (S03NP5CSA/B) - 2003 года выпуска

‹-+›
  • №
    Артикул
    Название
  • 1
    7061057 ROD END - 3/8, PL, 75Ш, 1.00, (RIGHT)
    ROD END - 3/8, PL, 75Ш, 1.00, (RIGHT)
  • 2
    7542401 NUT, HEX, (RIGHT)
    NUT, HEX, (RIGHT)
  • 3
    5333949 ROD - TIE
    ROD - TIE
  • 4
    7542424 NUT, (LEFT)
    NUT, (LEFT)
  • 5
    7061055 ROD END - 3/8, PL, 75Ш (LEFT), 750 STUD
    ROD END - 3/8, PL, 75Ш (LEFT), 750 STUD
  • 6
    7061076 ROD END - 3/8 (RIGHT), HI - ANGLE, PR
    ROD END - 3/8 (RIGHT), HI - ANGLE, PR
  • 7
    5333772 ROD, STEERING RACK, 11.50
    ROD, STEERING RACK, 11.50
  • 8
    5333773-067 ROD, DRAGLINK
    ROD, DRAGLINK
  • 9
    7542439 NUT, NYLOK
    NUT, NYLOK
  • 10
    7061075 ROD END - 3/8 (LEFT), HI - ANGLE, PR
    ROD END - 3/8 (LEFT), HI - ANGLE, PR
  • 11
    5132106 BUSHING - REDUCER, 12MM TO .385
    BUSHING - REDUCER, 12MM TO .385
  • 12
    1820957 ASSY., PITMAN ARM (INCL. 11, 13, 15)
    ASSY., PITMAN ARM (INCL. 11, 13, 15)
  • 13
    5133423 SPACER - TUBE PITMAN/IDLER ARMS
    SPACER - TUBE PITMAN/IDLER ARMS
  • 14
    7512435 SCREW
    SCREW
  • 15
    3514320 BEARING - BALL
    BEARING - BALL
  • 16
    1820959 ASSY. - IDLER ARM (INCL. 11, 13, 15)
    ASSY. - IDLER ARM (INCL. 11, 13, 15)
