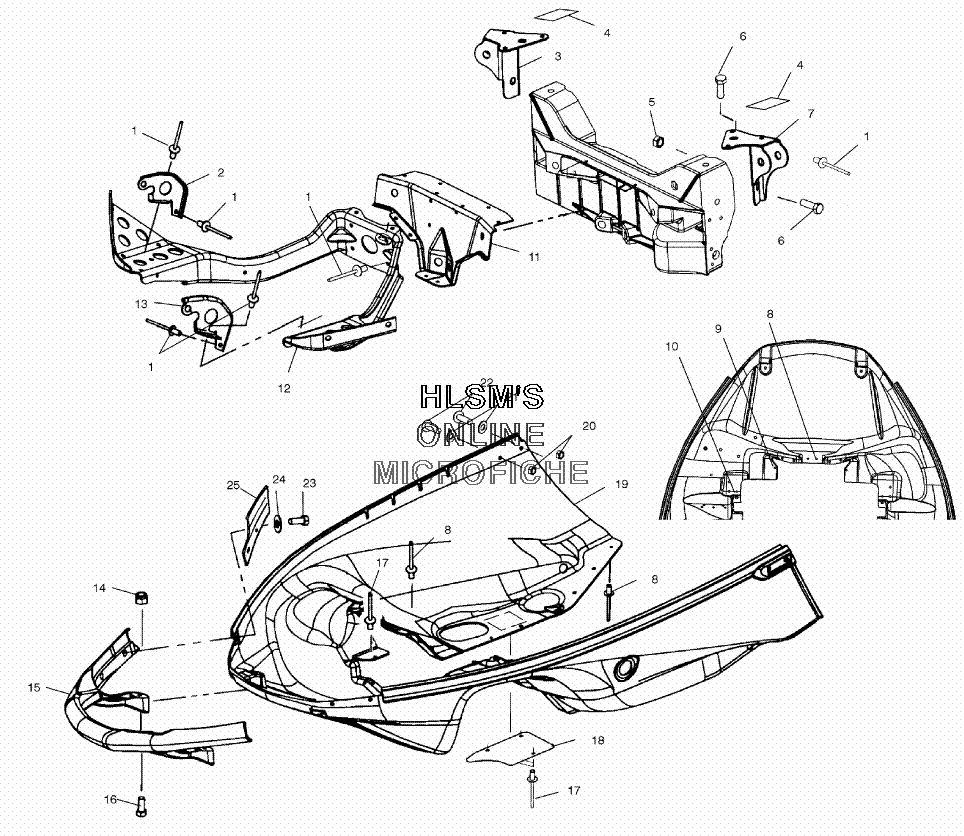

NOSEPAN ASSEMBLY #1 для Polaris 500 EDGE (S03NB4BS) - 2003 года выпуска`
-
№АртикулНазвание
-
17661637 RIVET, INTERLOCK ZRIVET, INTERLOCK Z
-
25243992-067 HINGE, PIVOT (LOWER/RIGHT/BLACK)HINGE, PIVOT (LOWER/RIGHT/BLACK)
-
35243978 MOUNT, SHOCK HD (UPPER/BLACK/RIGHT)MOUNT, SHOCK HD (UPPER/BLACK/RIGHT)
-
45810947 SEAL, FOAMSEAL, FOAM
-
57547180 NUT, FLANGED 3/8-16 NYLON ZNUT, FLANGED 3/8-16 NYLON Z
-
67517935 SCREWSCREW
-
75243977 MOUNT, SHOCK (BLACK/LEFT/UPPER)MOUNT, SHOCK (BLACK/LEFT/UPPER)
-
87621467 RIVET, BLINDRIVET, BLIND
-
97621431 RIVETRIVET
-
107661136 RIVETRIVET
-
115244049-067 BRACKET RADIUS ROD SUPPORT (BLACK)BRACKET RADIUS ROD SUPPORT (BLACK)
-
125244050 BRACE, PAN (LOWER)BRACE, PAN (LOWER)
-
135243991-067 HINGE, PIVOT (LOWER/LEFT/BLACK)HINGE, PIVOT (LOWER/LEFT/BLACK)
-
147542153 NUT, NYLOK, FLANGEDNUT, NYLOK, FLANGED
-
155433518-070 BUMPER, ASSY (FRONT/BLACK)BUMPER, ASSY (FRONT/BLACK)
-
167512163 BOLTBOLT
-
177621472 RIVETRIVET
-
185245853 SHIELD, EXHAUST HEAT EXTENDEDSHIELD, EXHAUST HEAT EXTENDED
-
195434343-070 NOSEPAN, GAS ASSIST (BLACK)NOSEPAN, GAS ASSIST (BLACK)
-
207542122 NUT, NYLOKNUT, NYLOK
-
217555827 WASHERWASHER
-
227515166 SCREWSCREW
-
237517312 SCREWSCREW
-
247552801 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
255244888 GUIDE, HOOD (LEFT)GUIDE, HOOD (LEFT)
-
255244889 GUIDE, HOOD (RIGHT)GUIDE, HOOD (RIGHT)
