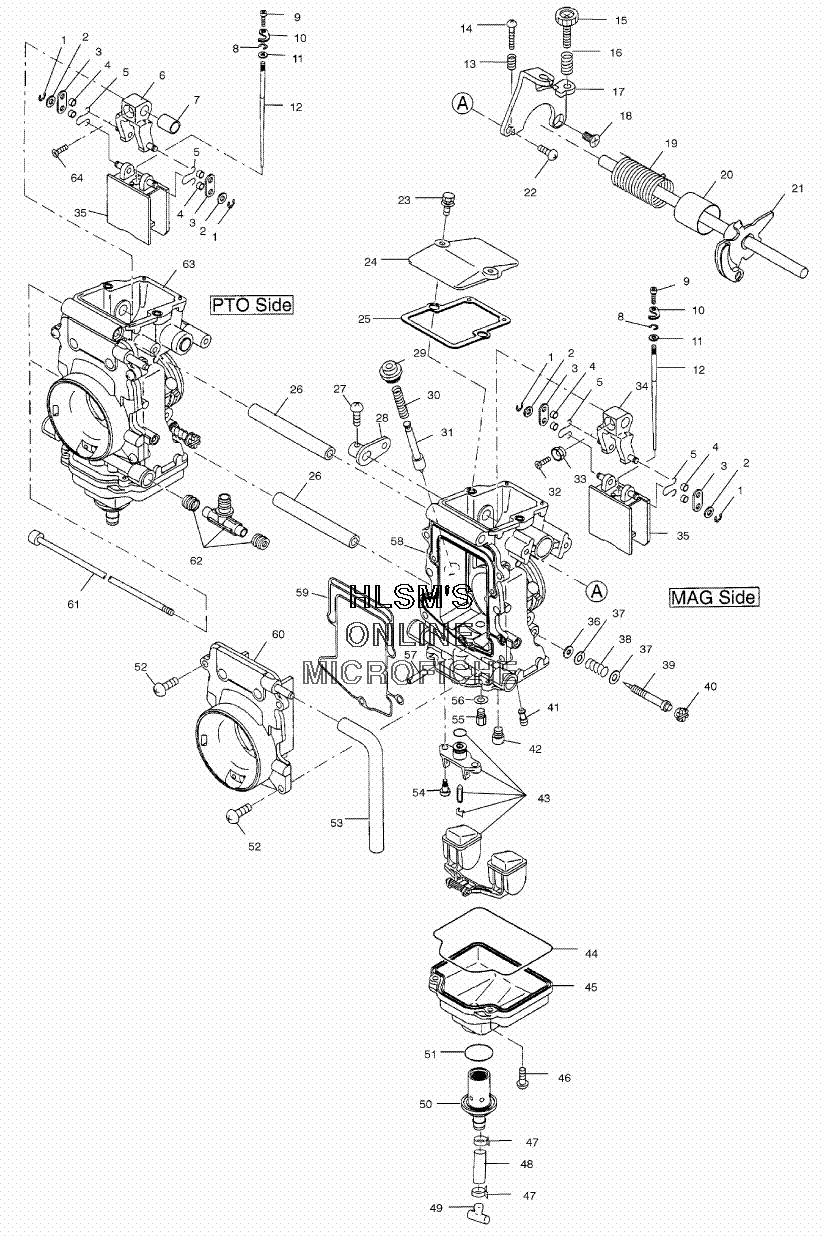

CARBURETOR ASSEMBLY для Polaris 500 EDGE (S03NB4BS) - 2003 года выпуска
-
№АртикулНазвание
-
13130847 E-RINGE-RING
-
23130981 WASHER, PACKINGWASHER, PACKING
-
33130857 PLATEPLATE
-
43130845 RINGRING
-
53130856 CLIPCLIP
-
63130855 LEVER ASSY.LEVER ASSY.
-
73140032 RINGRING
-
83130868 E-RINGE-RING
-
93130844 SCREWSCREW
-
103130843 PLATEPLATE
-
113130867 PACKINGPACKING
-
123131287 NEEDLE, JET (9DFY1-54)NEEDLE, JET (9DFY1-54)
-
133130817 SPRINGSPRING
-
143130816 SCREWSCREW
-
153130812 ADJUSTERADJUSTER
-
163130811 SPRINGSPRING
-
173130815 BRACKETBRACKET
-
183130810 SCREWSCREW
-
193130950 SPRINGSPRING
-
203130853 RINGRING
-
213131281 SHAFT, ASSYSHAFT, ASSY
-
223130809 SCREWSCREW
-
233130951 SCREWSCREW
-
243130976 CAP, TOPCAP, TOP
-
253130871 GASKETGASKET
-
263131274 SPACERSPACER
-
273131283 SCREWSCREW
-
283131282 LEVER, ASSYLEVER, ASSY
-
293131276 HOLDER, GUIDEHOLDER, GUIDE
-
303131277 SPRINGSPRING
-
313131278 PLUNGER, ASSYPLUNGER, ASSY
-
323130850 SCREWSCREW
-
333130848 RINGRING
-
343130849 LEVER ASSY.LEVER ASSY.
-
353130789 PISTON, VALVE (2.0)PISTON, VALVE (2.0)
-
363130835 PACKINGPACKING
-
373130837 WASHERWASHER
-
383130836 SPRINGSPRING
-
393130987 ADJUSTERADJUSTER
-
403130986 CAPCAP
-
413130067 JET, PILOT (#40)JET, PILOT (#40)
-
423130769 JET, STARTER (#145)JET, STARTER (#145)
-
433130977 FLOAT, ASSYFLOAT, ASSY
-
443130861 O-RING, FLOAT BOWLO-RING, FLOAT BOWL
-
453130858 FLOAT, BODYFLOAT, BODY
-
463130824 SCREW, FLOAT BOWLSCREW, FLOAT BOWL
-
477080003 CLAMP, HOSECLAMP, HOSE
-
488350017-600 FUEL, LINE ETHER (RED) (5/16")FUEL, LINE ETHER (RED) (5/16")
-
495431893 PLUG, TRAPPLUG, TRAP
-
503130862 NIPPLE, DRAIN SCREWNIPPLE, DRAIN SCREW
-
513130863 O-RING, DRAIN SCREWO-RING, DRAIN SCREW
-
523130825 SCREW, AIR FUNNELSCREW, AIR FUNNEL
-
533131280 HOSEHOSE
-
543130860 SCREW, VALVE SEATSCREW, VALVE SEAT
-
553130139 JET, MAIN HEXAGON HEAD (#360)JET, MAIN HEXAGON HEAD (#360)
-
563130949 WASHERWASHER
-
573130993 JET, AIR PILOT (1.0)JET, AIR PILOT (1.0)
-
583131272 MIXING, BODY ASSY (MAG)MIXING, BODY ASSY (MAG)
-
593130870 O-RING, AIR FUNNELO-RING, AIR FUNNEL
-
603130975 FUNNELFUNNEL
-
613131275 BOLTBOLT
-
623131279 NIPPLE, ASSYNIPPLE, ASSY
-
633131349 CARBURETOR, ASSY (INCL. 1, 46, 50, 64)CARBURETOR, ASSY (INCL. 1, 46, 50, 64)
-
643130854 SCREWSCREW
