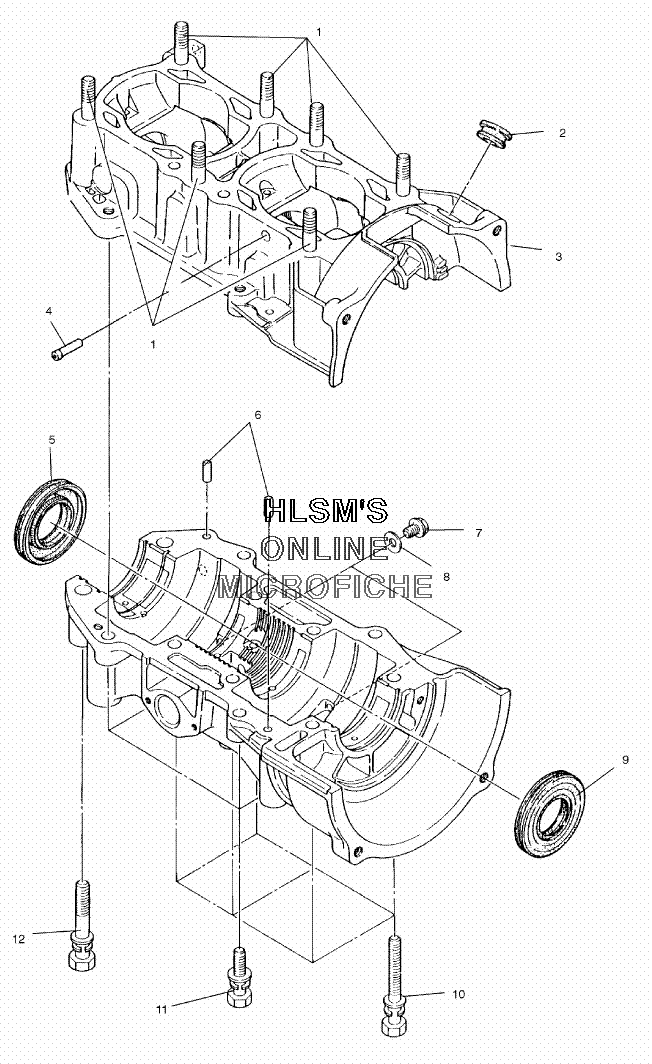

CRANKCASE ASSEMBLY для Polaris 500 EDGE (S03NB4BS) - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    3084119 STUD
    STUD
  • 2
    3082875 GROMMET
    GROMMET
  • 3
    3086832 CRANKCASE, ASSY. (INCL. 1, 4, 6, 10, 12)
    CRANKCASE, ASSY. (INCL. 1, 4, 6, 10, 12)
  • 4
    3083798 PIPE, PULSE
    PIPE, PULSE
  • 5
    3085200 SEAL, OIL (PTO SIDE)
    SEAL, OIL (PTO SIDE)
  • 6
    3080103 PIN, DOWEL
    PIN, DOWEL
  • 7
    3083568 BOLT, FLANGE
    BOLT, FLANGE
  • 8
    3082758 WASHER, FLAT
    WASHER, FLAT
  • 9
    3086833 SEAL, OIL (MAG SIDE)
    SEAL, OIL (MAG SIDE)
  • 10
    3080739 BOLT AND WASHER, ASSY
    BOLT AND WASHER, ASSY
  • 11
    3083078 BOLT AND WASHER, ASSY
    BOLT AND WASHER, ASSY
  • 12
    3084220 BOLT AND WASHER, ASSY
    BOLT AND WASHER, ASSY
