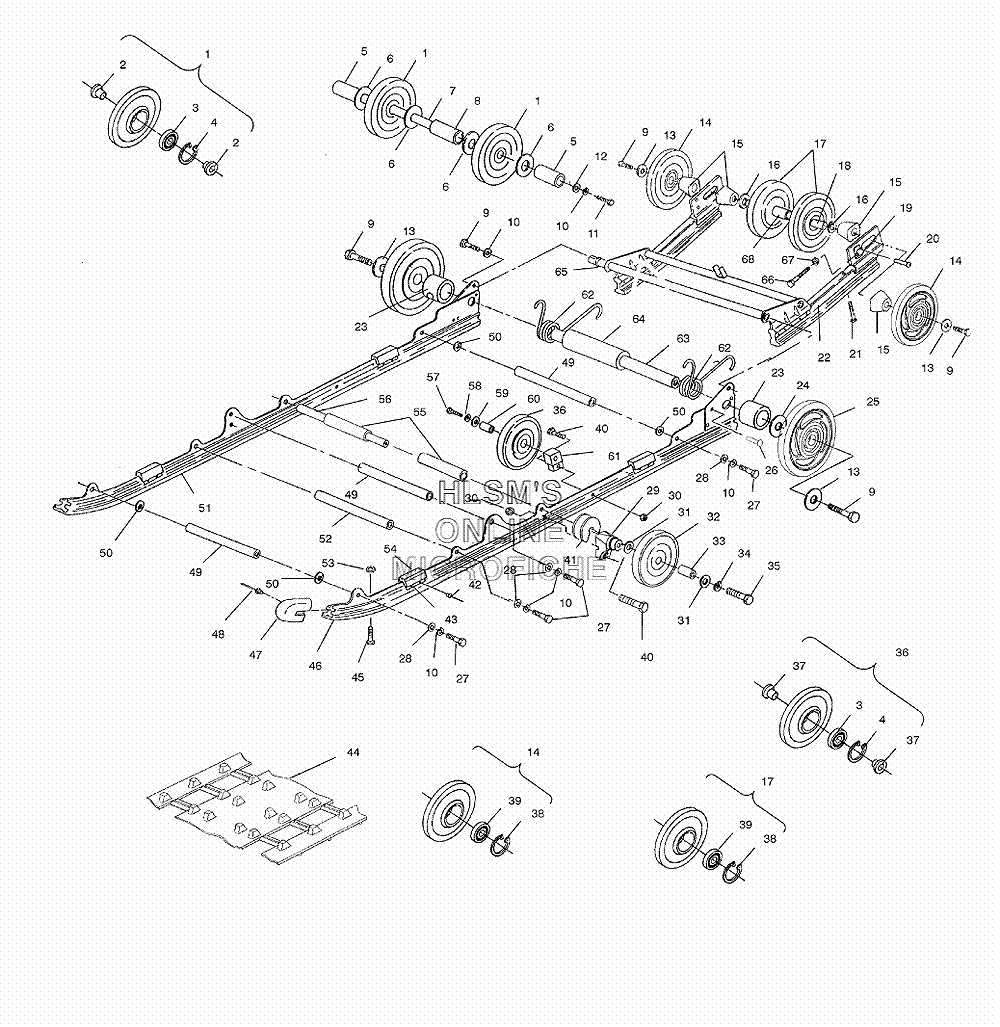

RAIL ASSEMBLY W/ IDLER WHEELS для Polaris WIDETRAK LX (S02SU4BS) - 2002 года выпуска`
-
№АртикулНазвание
-
11543021 WHEEL, CARRIER (INCL. 2,3,4)WHEEL, CARRIER (INCL. 2,3,4)
-
25430723 INSERTS, WHEELINSERTS, WHEEL
-
33514303 BEARING (1 PER WHEEL)BEARING (1 PER WHEEL)
-
47718407 RING, RETAINING (1 PER WHEEL)RING, RETAINING (1 PER WHEEL)
-
55333019-067 SPACER (OUTER)SPACER (OUTER)
-
67555726 WASHERWASHER
-
75020836 SHAFT, MTG.SHAFT, MTG.
-
85333020-067 SPACER, IN. CARRIER (BLACK)SPACER, IN. CARRIER (BLACK)
-
97517731 BOLTBOLT
-
107552603 WASHERWASHER
-
117517435 BOLTBOLT
-
127555893 WASHERWASHER
-
137556130 WASHERWASHER
-
141594083-312 ASSY., WHEEL, SCROLL, IDLER (INDY BLUE)ASSY., WHEEL, SCROLL, IDLER (INDY BLUE)
-
155432535 SPACER, IDLERSPACER, IDLER
-
167555918 BUSHINGBUSHING
-
171594087 WHEEL ASSY. PLAIN (6.38 O.D.)WHEEL ASSY. PLAIN (6.38 O.D.)
-
185020879 SHAFT, IDLERSHAFT, IDLER
-
195130530 BLOCK, IDLER BOLT ADJUSTBLOCK, IDLER BOLT ADJUST
-
207621501 RIVET,RIVET,
-
217512225 SCREWSCREW
-
221541133 RAIL ASSY., SWINGARM, RIVETED (INCL. 19, 20)RAIL ASSY., SWINGARM, RIVETED (INCL. 19, 20)
-
225521452 SLIDER, WHI.SLIDER, WHI.
-
235330171-067 TUBESPACER, OUTSIDE (CENTER)TUBESPACER, OUTSIDE (CENTER)
-
247556301 MACHINERY BUSHINGMACHINERY BUSHING
-
251590276-312 ASSY., WHEEL IDLER SCRL6675 (INDY BLUE)ASSY., WHEEL IDLER SCRL6675 (INDY BLUE)
-
267621508 RIVETRIVET
-
277517247 SCREWSCREW
-
287555806 WASHERWASHER
-
295630399 SPACERSPACER
-
307542439 NUT, NYLOCKNUT, NYLOCK
-
317555852 WASHER, FLATWASHER, FLAT
-
321594082-312 ASSY., WHEEL, SCROLLED BOGIE (INDY BLUE)ASSY., WHEEL, SCROLLED BOGIE (INDY BLUE)
-
335333116 SPACER, WHEELSPACER, WHEEL
-
347553101 WASHER LOCKWASHER LOCK
-
357512538 BOLTBOLT
-
361543018 WHEEL, IDLER (INCL. 3,4,37)WHEEL, IDLER (INCL. 3,4,37)
-
375431531 INSERT, WHEEL (2 PER WHEEL)INSERT, WHEEL (2 PER WHEEL)
-
387710444 RING, RETAININGRING, RETAINING
-
393514012 BEARINGBEARING
-
407512404 BOLTBOLT
-
415431366 ROLLER, SPRINGROLLER, SPRING
-
427621476 RIVETRIVET
-
435222629 REINF., BUMPERREINF., BUMPER
-
445411682 TRACK (20'' X 156 X 1'') SHOCKWAVETRACK (20'' X 156 X 1'') SHOCKWAVE
-
445222839 CLIP, TRACK (CAMOPLAST)CLIP, TRACK (CAMOPLAST)
-
445222840 CLIP, GUIDE (CAMOPLAST)CLIP, GUIDE (CAMOPLAST)
-
457512227 SCREWSCREW
-
461540751 RAIL ASSY. (W'TRAK) (INCL. 43,47,54) (LEFT)RAIL ASSY. (W'TRAK) (INCL. 43,47,54) (LEFT)
-
465521452 SLIDER, WHI.SLIDER, WHI.
-
475430627 COVER, RAIL TIPCOVER, RAIL TIP
-
487621435 RIVETRIVET
-
495132239 SHAFT, PIVOT (.750 X 13.235)SHAFT, PIVOT (.750 X 13.235)
-
507555823 WASHERWASHER
-
511540752 RAIL ASSY. W/TRAK (INCL. 43,47,54) (RIGHT)RAIL ASSY. W/TRAK (INCL. 43,47,54) (RIGHT)
-
515521452 SLIDER, WHI.SLIDER, WHI.
-
525020720 SHAFT, SPANNERSHAFT, SPANNER
-
537542122 NUT, LOCKNUT, LOCK
-
545810554 BUMPER, RAILBUMPER, RAIL
-
555333138 SPACER SHOCK (REAR)SPACER SHOCK (REAR)
-
565020651 SHAFT, SHOCK (REAR)SHAFT, SHOCK (REAR)
-
577512659 BOLTBOLT
-
587553201 LOCK WASHERLOCK WASHER
-
597555804 WASHERWASHER
-
605332786 SPACERSPACER
-
615130570 BRACKET, BOGIE WHEELBRACKET, BOGIE WHEEL
-
627041231-067 SPRING, EXT (BLACK/REAR)SPRING, EXT (BLACK/REAR)
-
635020726 SHAFT, IDLERSHAFT, IDLER
-
645333014-067 TUBE, IDLER (BLACK/CENTER)TUBE, IDLER (BLACK/CENTER)
-
655020725 SHAFT, PIVOT ARMSHAFT, PIVOT ARM
-
667515459 BOLTBOLT
-
677542404 NUTNUT
-
685333523 SPACER, IDLERSPACER, IDLER
