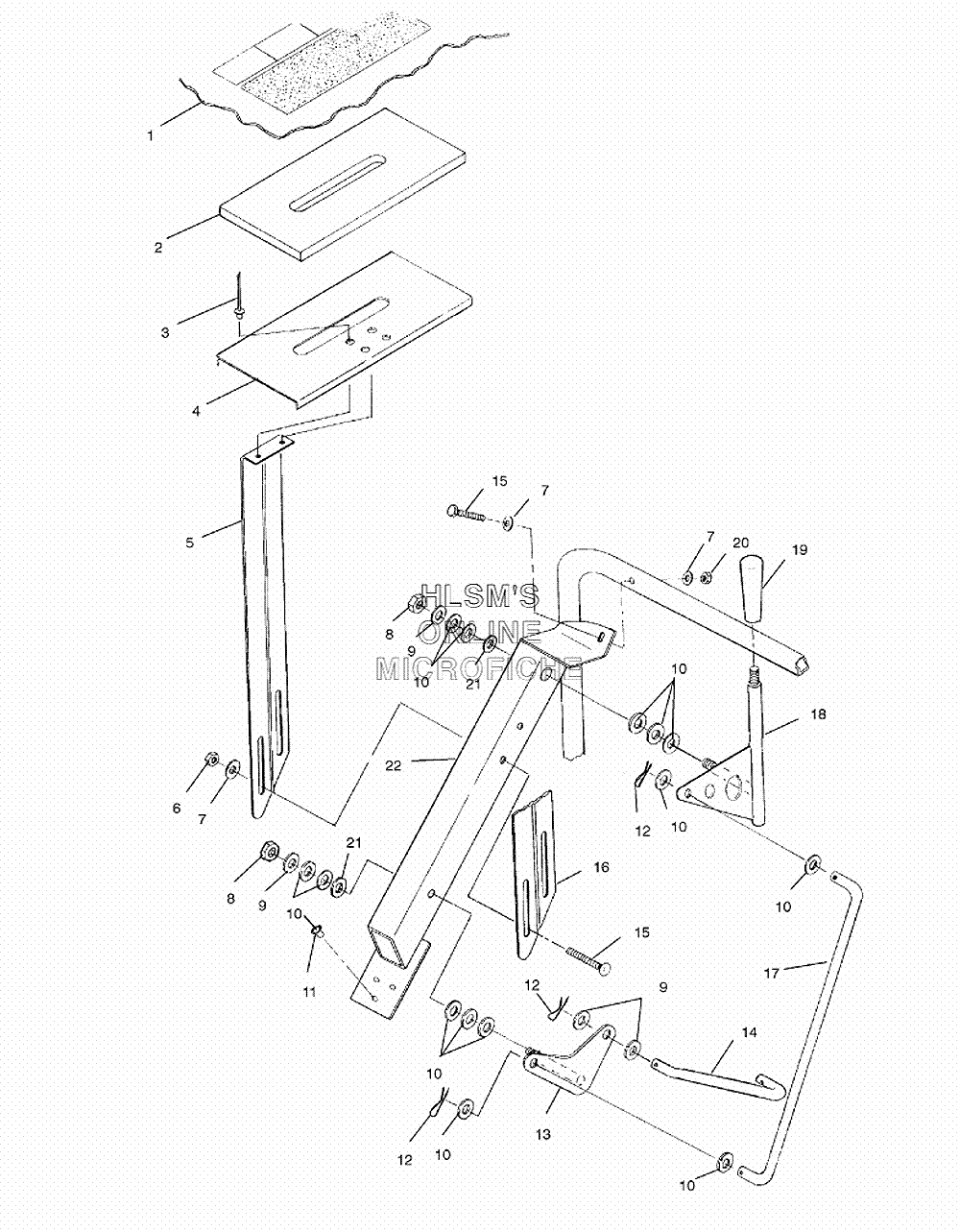

SHIFT LINKAGE для Polaris WIDETRAK LX (S02SU4BS) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    7077619 DECAL, SHIFT PATTERN
    DECAL, SHIFT PATTERN
  • 2
    5811768 FOAM, INDICATOR PLATE HYB
    FOAM, INDICATOR PLATE HYB
  • 3
    7661637 RIVET, INTERLOCK
    RIVET, INTERLOCK
  • 4
    5243204 PLATE, INDICATOR (GENII W/T)
    PLATE, INDICATOR (GENII W/T)
  • 5
    5241897 SUPPORT, INDIC.PLATE (RIGHT)
    SUPPORT, INDIC.PLATE (RIGHT)
  • 6
    7542101 NUT, HEX-LOCK
    NUT, HEX-LOCK
  • 7
    7558301 WASHER
    WASHER
  • 8
    7542324 NUT
    NUT
  • 9
    7558402 WASHER STEEL
    WASHER STEEL
  • 10
    7555820 WASHER
    WASHER
  • 11
    7661637 RIVET, INTERLOCK
    RIVET, INTERLOCK
  • 12
    7661203 PIN COTTER
    PIN COTTER
  • 13
    1012558 PLATE, PIVOT (LOWER)
    PLATE, PIVOT (LOWER)
  • 14
    5224770 ROD, LINKAGE (LOWER)
    ROD, LINKAGE (LOWER)
  • 15
    7517931 BOLT, CARR. (1/4-20 UNC-2AX1.5)
    BOLT, CARR. (1/4-20 UNC-2AX1.5)
  • 16
    5241896 SUPPORT, INDIC. PLATE (LEFT)
    SUPPORT, INDIC. PLATE (LEFT)
  • 17
    5224769 ROD, LINKAGE (UPPER)
    ROD, LINKAGE (UPPER)
  • 18
    1341250 ROD, SHIFT LEVER
    ROD, SHIFT LEVER
  • 19
    5132004 HANDLE, SHIFT
    HANDLE, SHIFT
  • 20
    7542122 NUT, LOCK
    NUT, LOCK
  • 21
    7571619 WASHER, WAVE
    WASHER, WAVE
  • 22
    1012559 SUPPORT, SHIFT LEVER ROD
    SUPPORT, SHIFT LEVER ROD
