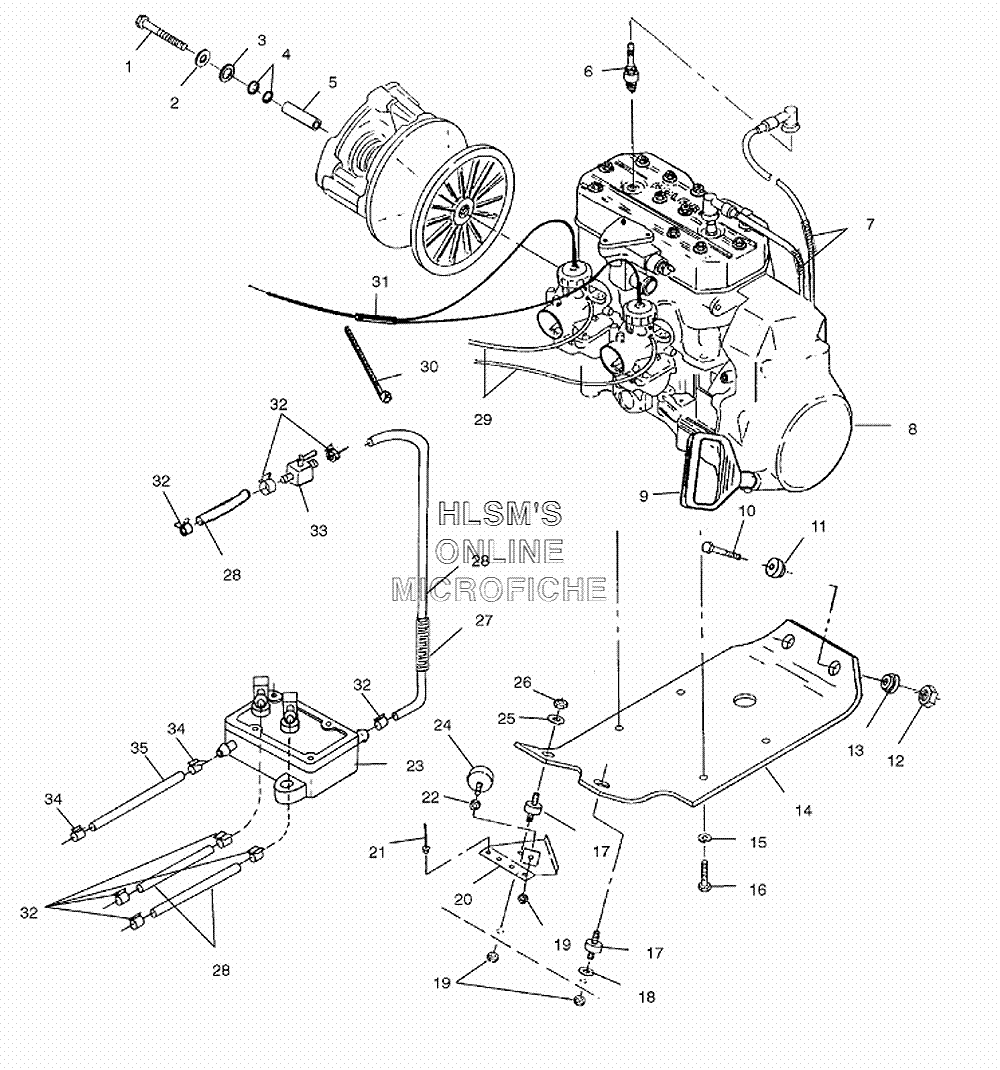

ENGINE MOUNTING W/ SHORT BLOCK для Polaris WIDETRAK LX (S02SU4BS) - 2002 года выпуска`
-
№АртикулНазвание
-
17512565 BOLTBOLT
-
27575202 WASHER LOCKWASHER LOCK
-
35010278 WASHER, CLUTCH RETAINERWASHER, CLUTCH RETAINER
-
45410507 O-RINGO-RING
-
55020513 SPACER, CLUTCH BOLTSPACER, CLUTCH BOLT
-
63070166 SPARKPLUG, RN3CSPARKPLUG, RN3C
-
75521516-10 TUBING, CONVOLUTED 10CMTUBING, CONVOLUTED 10CM
-
83086509 SHORT BLOCKSHORT BLOCK
-
95431499-070 HANDLE, RECOIL (BLACK)HANDLE, RECOIL (BLACK)
-
107512530 SCREWSCREW
-
115411685 MOUNT, ENGINE RUBBER (TOP)MOUNT, ENGINE RUBBER (TOP)
-
127542522 NUT, FLANGENUT, FLANGE
-
135411686 MOUNT, ENGINE RUBBER (BOTTOM)MOUNT, ENGINE RUBBER (BOTTOM)
-
145242496 PLATE, MOTOR MOUNTPLATE, MOTOR MOUNT
-
157553101 WASHER LOCKWASHER LOCK
-
167512539 BOLTBOLT
-
173110061 MOUNT, ENGINEMOUNT, ENGINE
-
187555915 WASHER, FLATWASHER, FLAT
-
197542451 NUT, NYLOCKNUT, NYLOCK
-
201012048-067 LIMITER, TORQUE (BLACK)LIMITER, TORQUE (BLACK)
-
217661637 RIVET, INTERLOCKRIVET, INTERLOCK
-
227542414 NUT, HEXNUT, HEX
-
233085490 ASSY., WATER PUMP/FUEL PUMP (SEE FUEL PUMP REF. 10)ASSY., WATER PUMP/FUEL PUMP (SEE FUEL PUMP REF. 10)
-
243110063 STOP, TORQUE COARSE 1.94 DIASTOP, TORQUE COARSE 1.94 DIA
-
257555893 WASHERWASHER
-
267547008 NUT, FLEXLOCKNUT, FLEXLOCK
-
274010051-15 CONDUIT, CONVOL (15 CM)CONDUIT, CONVOL (15 CM)
-
288350018-600 TUBING, ETHER ERETHNE, 160CM SVCTUBING, ETHER ERETHNE, 160CM SVC
-
298360009-600 FUEL LINE (1/8 ID 600 CM.)FUEL LINE (1/8 ID 600 CM.)
-
307080138 CABLE TIECABLE TIE
-
317080554 CABLE, THROTTLE W/OILCABLE, THROTTLE W/OIL
-
327080307 CLAMPCLAMP
-
337052248 VALVE, FUEL PLASTIC INLINE 1/4''VALVE, FUEL PLASTIC INLINE 1/4''
-
347080003 CLAMP, HOSECLAMP, HOSE
-
358450040-600 FUEL LINE 1/4 ID (600 CM.)FUEL LINE 1/4 ID (600 CM.)
