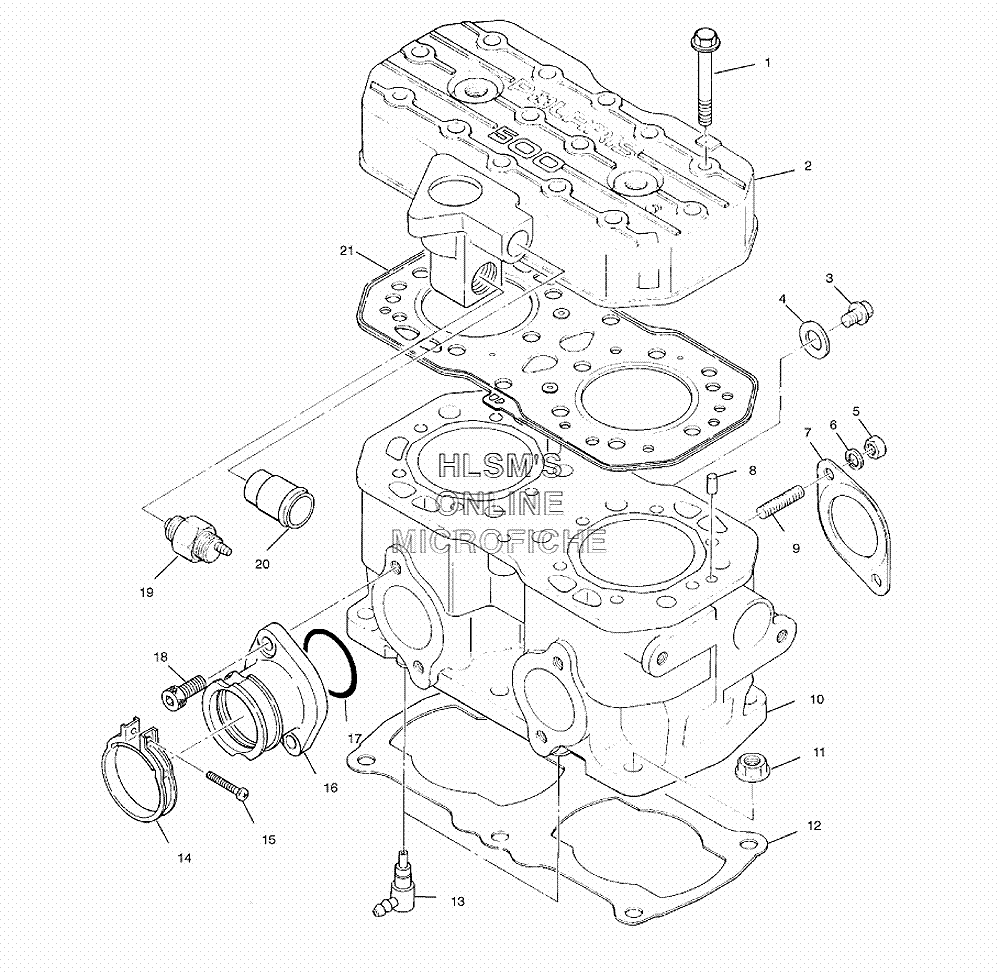

CYLINDER ASSEMBLY для Polaris WIDETRAK LX (S02SU4BS) - 2002 года выпуска`
-
№АртикулНазвание
-
13085582 BOLT, FLANGEBOLT, FLANGE
-
23085584 HEAD, CYLINDER (INCL. 20)HEAD, CYLINDER (INCL. 20)
-
33084491 PLUGPLUG
-
43084492 GASKET, ALUMINUMGASKET, ALUMINUM
-
53080285 NUTNUT
-
63080530 WASHER LOCKWASHER LOCK
-
73086995 GASKET, EXHAUSTGASKET, EXHAUST
-
83080103 PIN, DOWELPIN, DOWEL
-
93085326 STUDSTUD
-
103085583 CYLINDER (INCL. 9)CYLINDER (INCL. 9)
-
113082911 NUT, FLANGENUT, FLANGE
-
123084768 GASKET, BASEGASKET, BASE
-
133086785 VALVE, CHECKVALVE, CHECK
-
143083166 BAND ASSY. (INCL. 15)BAND ASSY. (INCL. 15)
-
153081497 SCREWSCREW
-
163085044 ADAPTER, CARB. (INCL. 17)ADAPTER, CARB. (INCL. 17)
-
173085619 O-RINGO-RING
-
183081330 BOLT, ALLENBOLT, ALLEN
-
193084284 SWITCH, THERMAL (105 DEGREE C)SWITCH, THERMAL (105 DEGREE C)
-
203083452 PIPE, WATERPIPE, WATER
-
213085585 GASKET 2 HEADGASKET 2 HEAD
