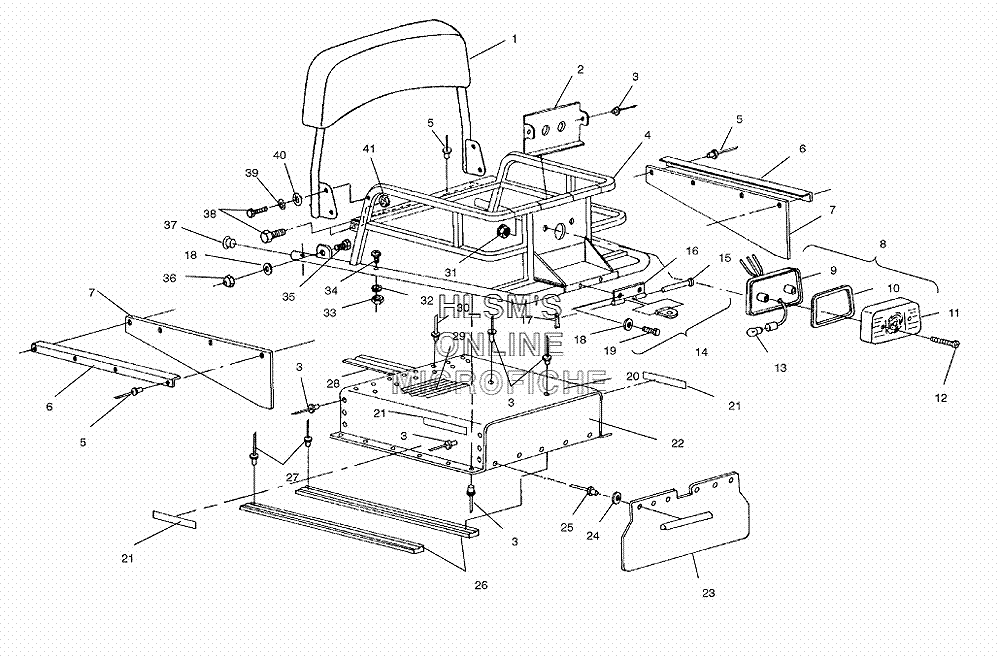

TUNNEL EXTENSION ASSEMBLY W/RACK для Polaris WIDETRAK LX EURO (S02SU4BE) - 2002 года выпуска`
-
№АртикулНазвание
-
12682782 ASSY., WT BACKREST (INCL. 2) (SONIC BLUE/BLACK)ASSY., WT BACKREST (INCL. 2) (SONIC BLUE/BLACK)
-
12682783 ASSY., WIDETRAK BACKREST COVERASSY., WIDETRAK BACKREST COVER
-
25222868-067 SHIELD, TAILLIGHTSHIELD, TAILLIGHT
-
37661637 RIVET, INTERLOCKRIVET, INTERLOCK
-
41012076-067 RACK, 'LX' (BLACK)RACK, 'LX' (BLACK)
-
57621462 RIVETRIVET
-
65220497-067 BRACKET, SNOW FLAPBRACKET, SNOW FLAP
-
75812321 FLAP, SNOW, SIDE TUNNEL EXTFLAP, SNOW, SIDE TUNNEL EXT
-
82432035 TAILLIGHT ASSY. (INCL. 9-13)TAILLIGHT ASSY. (INCL. 9-13)
-
94032047 BASE AND SOCKET TAILLIGHTBASE AND SOCKET TAILLIGHT
-
104032045 GASKET, TAILLIGHTGASKET, TAILLIGHT
-
114032046 LENS, TAILLIGHTLENS, TAILLIGHT
-
124032029 SCREW, TAILLIGHTSCREW, TAILLIGHT
-
134030063 BULB, TAILLIGHT EXT.DUTYBULB, TAILLIGHT EXT.DUTY
-
142870708 HITCHKIT, L.T./STARTRAK (INCL. 15-19)HITCHKIT, L.T./STARTRAK (INCL. 15-19)
-
141011624-067 HITCH WELD (BLACK)HITCH WELD (BLACK)
-
157662209 CLEVIS PINCLEVIS PIN
-
177661401 COTTER PINCOTTER PIN
-
187552603 WASHERWASHER
-
197512490 SCREWSCREW
-
205240516-067 EXTRUSION, TUNNEL (REAR/BLACK)EXTRUSION, TUNNEL (REAR/BLACK)
-
212670133 REFLECTOR ASSY. (RED)REFLECTOR ASSY. (RED)
-
225240530-067 PANEL, TUNNEL BACK W/T (BLACK)PANEL, TUNNEL BACK W/T (BLACK)
-
235412320 COVER, FUEL TANK MOUNT (RIGHT)COVER, FUEL TANK MOUNT (RIGHT)
-
247556044 WASHERWASHER
-
257621418 POP RIVETPOP RIVET
-
265222448 STRIP, WEAR EXT.STRIP, WEAR EXT.
-
277621449 RIVETRIVET
-
285222323 BRACKET, HARNESS PROTECTORBRACKET, HARNESS PROTECTOR
-
295410560 PROTECTOR, BEDPROTECTOR, BED
-
307621429 RIVETRIVET
-
317670054 NUT, PUSH-ONNUT, PUSH-ON
-
327558301 WASHERWASHER
-
337542122 NUT, LOCKNUT, LOCK
-
347517377 SCREWSCREW
-
357515522 BOLTBOLT
-
367542458 NUTNUT
-
375430713 PLUGPLUG
-
387515341 SCREWSCREW
-
397552901 LOCK WASHERLOCK WASHER
-
407555843 WASHER, WROUGHTWASHER, WROUGHT
-
417542324 NUTNUT
