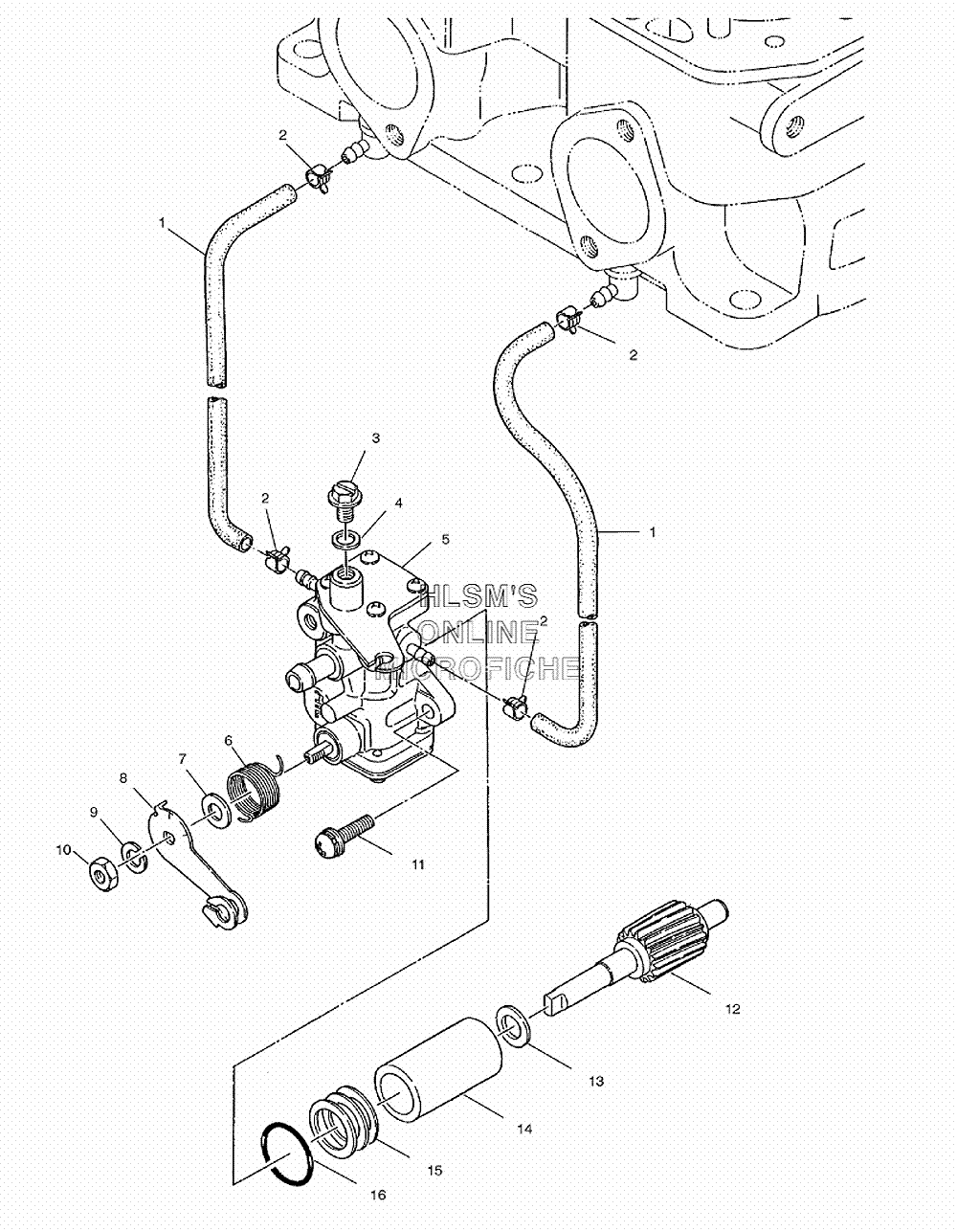

OIL PUMP ASSEMBLY для Polaris WIDETRAK LX EURO (S02SU4BE) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    3083488 PIPE 3, VINYL
    PIPE 3, VINYL
  • 2
    3083141 CLAMP, HOSE
    CLAMP, HOSE
  • 3
    3083125 SCREW, AIR VENT
    SCREW, AIR VENT
  • 4
    3083126 PACKING
    PACKING
  • 5
    3084013 PUMP, OIL (INCL. 3-10,16)
    PUMP, OIL (INCL. 3-10,16)
  • 6
    3083123 SPRING, RETURN
    SPRING, RETURN
  • 7
    3083445 COLLAR, CAMSHAFT
    COLLAR, CAMSHAFT
  • 8
    3084014 LEVER, CONTROL
    LEVER, CONTROL
  • 9
    3083121 WASHER, SPRING
    WASHER, SPRING
  • 10
    3083120 NUT
    NUT
  • 11
    3083783 SCREW AND WASHER
    SCREW AND WASHER
  • 12
    3083131 GEAR, SMALL OIL PUMP
    GEAR, SMALL OIL PUMP
  • 13
    3083130 SPACER
    SPACER
  • 14
    3083353 BUSHING (OIL PUMP)
    BUSHING (OIL PUMP)
  • 15
    3083671 SPACER #1 (.15MM)
    SPACER #1 (.15MM)
  • 15
    3083672 SPACER #2 (.3MM)
    SPACER #2 (.3MM)
  • 15
    3083673 SPACER #3 (.6MM)
    SPACER #3 (.6MM)
  • 16
    3083127 O-RING
    O-RING
