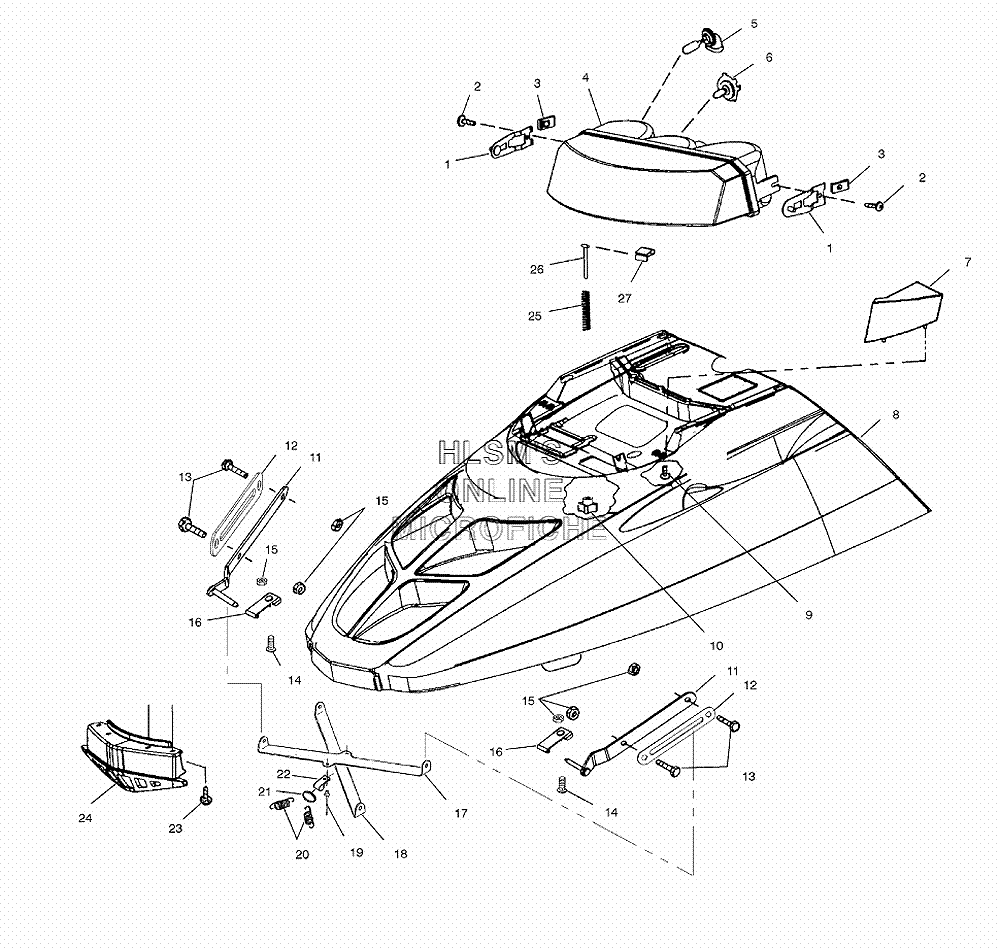

HOOD ASSEMBLY W/ WINDSHIELD для Polaris WIDETRAK LX EURO (S02SU4BE) - 2002 года выпуска`

№

Артикул

Название
1

1011944-067 MOUNT, WELD, HEADLIGHT

MOUNT, WELD, HEADLIGHT

3 120 ₽
2

7515107 BOLT

BOLT

0 ₽
3

7670057 NUT, SPEED

NUT, SPEED

150 ₽
4

2433016 ASSY., HEADLAMP, THREE BULB (INCL. BULBS)

ASSY., HEADLAMP, THREE BULB (INCL. BULBS)

43 680 ₽
5

4010253 BULB, HEADLIGHT 50 WATT

BULB, HEADLIGHT 50 WATT

4 990 ₽
6

2870448 BULB, QUARTZ.HEADLIGHTS INDY

BULB, QUARTZ.HEADLIGHTS INDY

3 120 ₽
7

5431855 LENS, CLEAR REFLECTOR (LEFT)

LENS, CLEAR REFLECTOR (LEFT)

7 910 ₽
7

5431856 LENS, CLEAR REFLECTOR

LENS, CLEAR REFLECTOR

12 480 ₽
8

2632227-341 ASSY., HOOD HYB SVC (INCL. FOAM/FOIL) (SONIC BLUE)

ASSY., HOOD HYB SVC (INCL. FOAM/FOIL) (SONIC BLUE)

0 ₽
9

7511953 SCREW

SCREW

460 ₽
10

7080887 KNOB, HEADLIGHT ADJUST LOCKING

KNOB, HEADLIGHT ADJUST LOCKING

750 ₽
11

1012750 HINGE (LEFT/UPPER)

HINGE (LEFT/UPPER)

8 740 ₽
11

1012751 HINGE (RIGHT/UPPER)

HINGE (RIGHT/UPPER)

8 740 ₽
12

5242948 PLATE, BOLT

PLATE, BOLT

1 460 ₽
13

7515184 BOLT

BOLT

150 ₽
14

7512193 BOLT

BOLT

630 ₽
15

7542122 NUT, LOCK

NUT, LOCK

110 ₽
16

5244395 PLATE, HINGE (LOWER)

PLATE, HINGE (LOWER)

2 710 ₽
17

5242945 BRACE, HOOD (UPPER)

BRACE, HOOD (UPPER)

7 070 ₽
18

5242946 BRACE, HOOD (LOWER)

BRACE, HOOD (LOWER)

6 870 ₽
19

7661637 RIVET, INTERLOCK

RIVET, INTERLOCK

150 ₽
20

7041732 SPRING, EXT.

SPRING, EXT.

1 250 ₽
21

7041760 SPRING, ATTACHMENT RING

SPRING, ATTACHMENT RING

110 ₽
22

7080372 CLAMP, RETAINER

CLAMP, RETAINER

460 ₽
23

7517441 SCREW

SCREW

630 ₽
24

5432931 SCREEN, HYB (FRONT)

SCREEN, HYB (FRONT)

5 620 ₽
25

7041308 SPRING, ADJUST (HEADLIGHTS)

SPRING, ADJUST (HEADLIGHTS)

340 ₽
26

7517746 BOLT, TEE ADJUSTER 2.25

BOLT, TEE ADJUSTER 2.25

3 120 ₽
27

7670040 CLIP, U TYPE

CLIP, U TYPE

630 ₽
