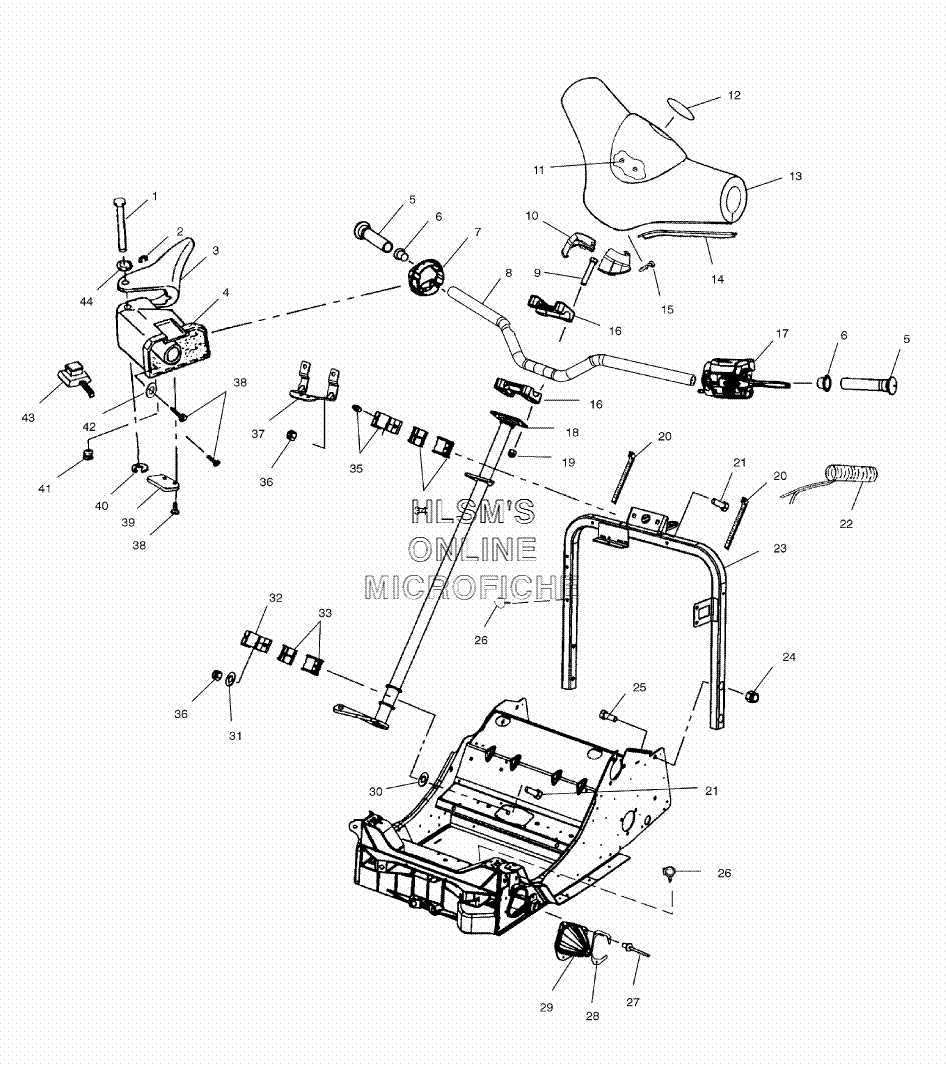

HANDLEBAR ASSEMBLY для Polaris INDY FRONTIER (S02NT7DS) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    7661624 PIN, HINGE
    PIN, HINGE
  • 2
    7710503 RETAINING RING
    RETAINING RING
  • 3
    5432970 THROTLE, LEVER
    THROTLE, LEVER
  • 3
    2010171 LEVER ASSY., HEATER HI/LO
    LEVER ASSY., HEATER HI/LO
  • 4
    5431592 BLOCK, THROTTLE/BRAKE
    BLOCK, THROTTLE/BRAKE
  • 5
    5432634 GRIP, HANDLEBAR
    GRIP, HANDLEBAR
  • 6
    5431096 PLUG, OVERFLOW
    PLUG, OVERFLOW
  • 7
    5433345 ADAPTER, BLOCK THROTTLE
    ADAPTER, BLOCK THROTTLE
  • 8
    5243355-067 HANDLE BAR (BLACK)
    HANDLE BAR (BLACK)
  • 9
    7517238 SCREW
    SCREW
  • 10
    5434487 COLLAR, CONSOLE (STD) (LEFT)
    COLLAR, CONSOLE (STD) (LEFT)
  • 10
    5434488 COLLAR, CONSOLE (STD) (RIGHT)
    COLLAR, CONSOLE (STD) (RIGHT)
  • 11
    7670106 NUT, PUSH ON
    NUT, PUSH ON
  • 12
    5434179 EMBLEM, ''STAR''
    EMBLEM, ''STAR''
  • 13
    5433159-070 COVER, HANDLEBAR (BLACK)
    COVER, HANDLEBAR (BLACK)
  • 14
    5433160-070 SLIDE, HANDLEBAR COVER (BLACK)
    SLIDE, HANDLEBAR COVER (BLACK)
  • 15
    4010287 DART, CLIP NYLON (BLACK)
    DART, CLIP NYLON (BLACK)
  • 16
    5630187-067 BLOCK, HANDLEBAR
    BLOCK, HANDLEBAR
  • 17
    2010215 CONTROL ASSY. (LEFT)
    CONTROL ASSY. (LEFT)
  • 18
    1821155-067 WELD, STEERING POST (BLACK)
    WELD, STEERING POST (BLACK)
  • 19
    7542122 NUT, LOCK
    NUT, LOCK
  • 20
    7080804 CABLE TIE, RELEASABLE (5 1/2'')
    CABLE TIE, RELEASABLE (5 1/2'')
  • 21
    7517579 BOLT, CARR
    BOLT, CARR
  • 22
    2460677 HEATER, GRIP, LO/MED/HI
    HEATER, GRIP, LO/MED/HI
  • 23
    1013558-067 WELD, STEERING HOOP (BLACK)
    WELD, STEERING HOOP (BLACK)
  • 24
    7542343 NUT, NYLOCK
    NUT, NYLOCK
  • 25
    7512377 BOLT
    BOLT
  • 26
    7670109 CLIP, ROUTING
    CLIP, ROUTING
  • 27
    7621433 RIVET
    RIVET
  • 28
    5244470 PLATE, TIE ROD BOOT
    PLATE, TIE ROD BOOT
  • 29
    5433532 BOOT, TIE ROD (LEFT)
    BOOT, TIE ROD (LEFT)
  • 29
    5433533 BOOT, TIE ROD (RIGHT)
    BOOT, TIE ROD (RIGHT)
  • 30
    7547030 PALNUT
    PALNUT
  • 31
    7558402 WASHER, STEEL
    WASHER, STEEL
  • 32
    5132967 BRACKET, STEERING POST
    BRACKET, STEERING POST
  • 32
    7080510 FITTING, ZERK
    FITTING, ZERK
  • 33
    5434167 BUSHING, STEERING POST
    BUSHING, STEERING POST
  • 34
    5432785 BUSHING, STEERING POST
    BUSHING, STEERING POST
  • 35
    5131841 BRACKET, STEERING POST
    BRACKET, STEERING POST
  • 35
    7080510 FITTING, ZERK
    FITTING, ZERK
  • 36
    7542324 NUT
    NUT
  • 37
    5245354 BRACKET, CONSOLE FRONT NECK (STD)
    BRACKET, CONSOLE FRONT NECK (STD)
  • 38
    7511848 SCREW, SEMS
    SCREW, SEMS
  • 39
    5432261 HOLDER, WIRE
    HOLDER, WIRE
  • 40
    7710401 E-RING
    E-RING
  • 41
    7512465 SCREW
    SCREW
  • 42
    7555727 RIVET BURR
    RIVET BURR
  • 43
    4110106 SWITCH, AUX. SHUT OFF
    SWITCH, AUX. SHUT OFF
  • 44
    7555730 WASHER
    WASHER
