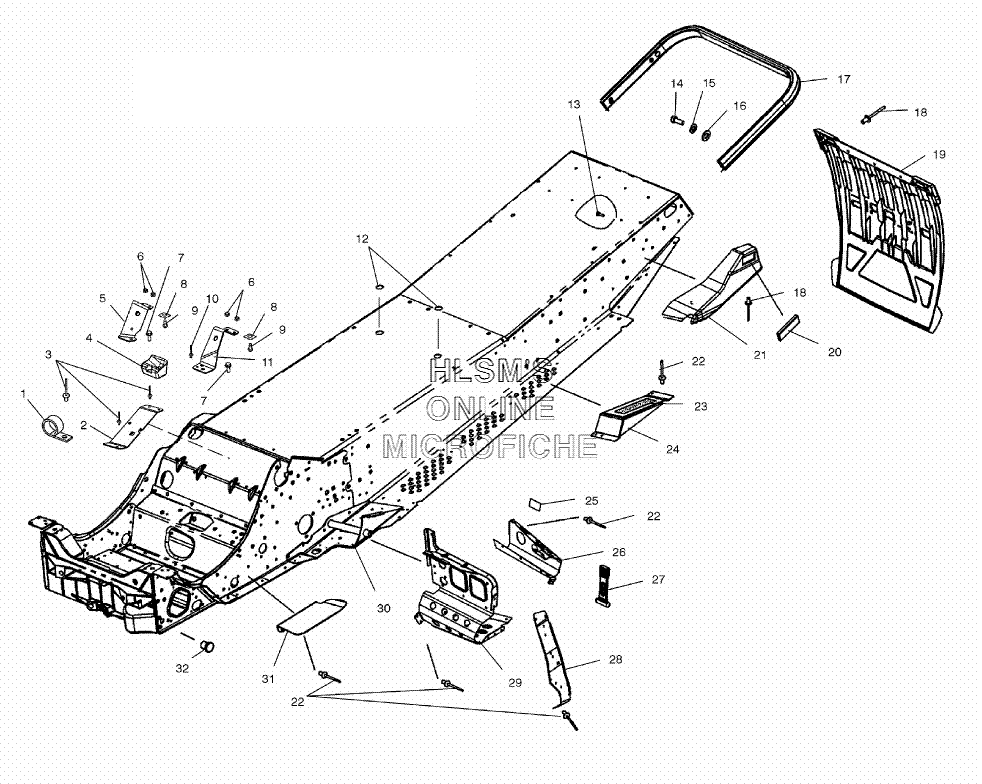

FRAME - CHASSIS для Polaris INDY FRONTIER (S02NT7DS) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1A
    1013563-309 CHASSIS ASSY.
    CHASSIS ASSY.
  • 1
    7080693 CLAMP, HOSE NYLON
    CLAMP, HOSE NYLON
  • 2
    1013786 BRACKET ASSY., COIL W/NUTS
    BRACKET ASSY., COIL W/NUTS
  • 3
    7621432 RIVET
    RIVET
  • 4
    5412224 TORQUE STOP, FRONTIER
    TORQUE STOP, FRONTIER
  • 5
    1013542 WELD, REAR ENGINE (LEFT)
    WELD, REAR ENGINE (LEFT)
  • 6
    7542122 NUT, LOCK
    NUT, LOCK
  • 7
    7517854 SCREW
    SCREW
  • 8
    7670021 SPEED NUT
    SPEED NUT
  • 9
    7515203 BOLT
    BOLT
  • 10
    7661637 RIVET, INTERLOCK
    RIVET, INTERLOCK
  • 11
    1013543 WELD, ENGINE MOUNT (REAR/RIGHT)
    WELD, ENGINE MOUNT (REAR/RIGHT)
  • 12
    7080592 CAPLUG (3/4'')
    CAPLUG (3/4'')
  • 13
    7517441 SCREW
    SCREW
  • 14
    7512240 BOLT
    BOLT
  • 15
    7552801 LOCK WASHER
    LOCK WASHER
  • 16
    7558301 WASHER
    WASHER
  • 17
    2670169-309 REAR BUMPER ASSY. (NATURAL)
    REAR BUMPER ASSY. (NATURAL)
  • 18
    7621472 RIVET
    RIVET
  • 19
    5434356-1106 FLAP, SNOW (BLACK W/CHROME)
    FLAP, SNOW (BLACK W/CHROME)
  • 20
    2670133 REFLECTOR ASSY. (RED)
    REFLECTOR ASSY. (RED)
  • 21
    5434383-070 SKIRT, SNOW (LEFT/BLACK) (INCL. 20)
    SKIRT, SNOW (LEFT/BLACK) (INCL. 20)
  • 21
    5434384-070 SKIRT, SNOW (RIGHT/BLACK) (INCL. 20)
    SKIRT, SNOW (RIGHT/BLACK) (INCL. 20)
  • 22
    7661637 RIVET, INTERLOCK
    RIVET, INTERLOCK
  • 23
    5830230 PAD, FOOTREST GRIP
    PAD, FOOTREST GRIP
  • 24
    1013812 FOOTREST ASSY., W/GRIP PAD (LEFT) (INCL. 23)
    FOOTREST ASSY., W/GRIP PAD (LEFT) (INCL. 23)
  • 24
    1013813 FOOTREST ASSY., W/GRIP PAD (RIGHT) (INCL. 23)
    FOOTREST ASSY., W/GRIP PAD (RIGHT) (INCL. 23)
  • 25
    5521238 EXTRUSION, CLUTCH GUARD
    EXTRUSION, CLUTCH GUARD
  • 26
    5245457 MOUNT, CONSOLE TOE CLIP (LEFT)
    MOUNT, CONSOLE TOE CLIP (LEFT)
  • 26
    5245458 MOUNT, CONSOLE TOE CLIP (RIGHT)
    MOUNT, CONSOLE TOE CLIP (RIGHT)
  • 27
    5433150 STRAP, RUBBER
    STRAP, RUBBER
  • 28
    5246310 SUPPORT, FOOTREST (LEFT)
    SUPPORT, FOOTREST (LEFT)
  • 28
    5246311 SUPPORT, FOOTREST (RIGHT)
    SUPPORT, FOOTREST (RIGHT)
  • 29
    5245288 FOOTREST (LEFT)
    FOOTREST (LEFT)
  • 29
    5242740 FOOTREST (RIGHT)
    FOOTREST (RIGHT)
  • 30
    1013436 WELD, TRAILING ARM (MOUNT/LEFT)
    WELD, TRAILING ARM (MOUNT/LEFT)
  • 30
    1013650 WELD, TRAILING ARM (MOUNT/RIGHT)
    WELD, TRAILING ARM (MOUNT/RIGHT)
  • 31
    5221583 GUARD, ADAPTER DRIVE
    GUARD, ADAPTER DRIVE
  • 32
    7080416 PLUG, HOLE
    PLUG, HOLE
