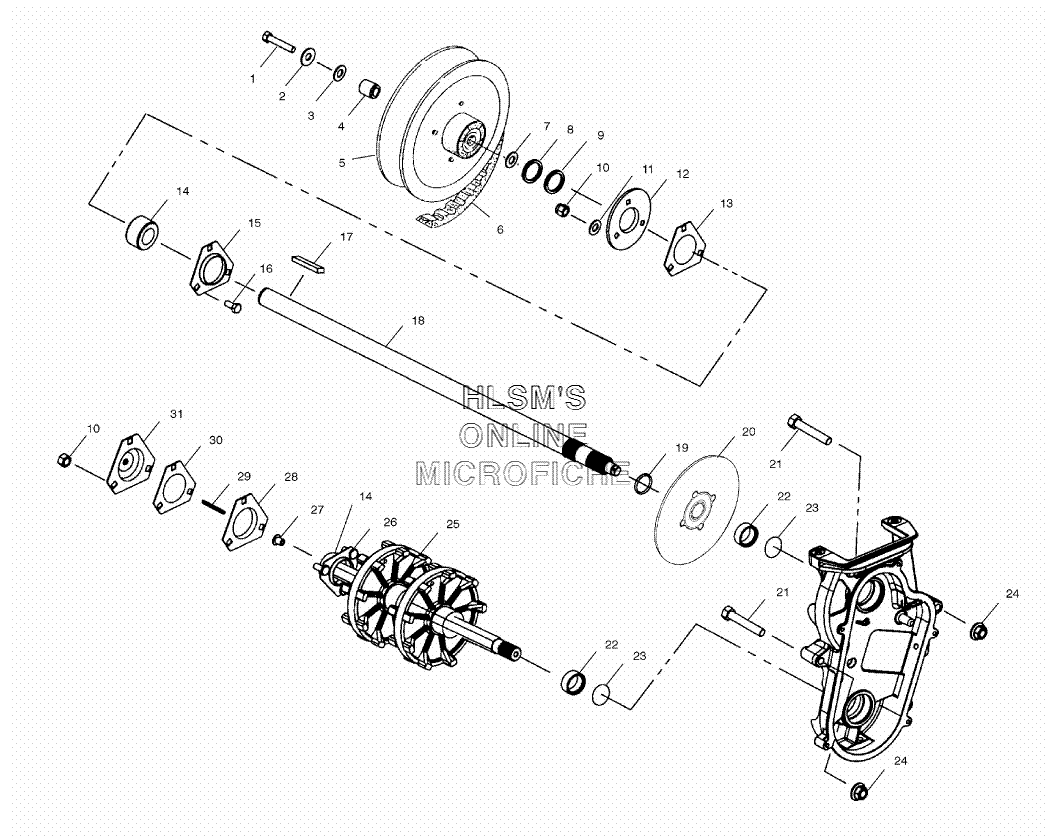

DRIVE TRAIN ASSEMBLY W/ DRIVE BELT для Polaris INDY FRONTIER (S02NT7DS) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    7517820 BOLT
    BOLT
  • 2
    7555701 WASHER, FLAT
    WASHER, FLAT
  • 3
    7555734 WASHER
    WASHER
  • 4
    5020291 SPACER
    SPACER
  • 5
    1321927 DRIVEN CLUTCH ASSY.
    DRIVEN CLUTCH ASSY.
  • 6
    3211092 BELT, DRIVE
    BELT, DRIVE
  • 7
    7555917 WASHER
    WASHER
  • 8
    7555864 BUSHING
    BUSHING
  • 9
    7556509 WASHER, SPECIAL
    WASHER, SPECIAL
  • 10
    7542324 NUT
    NUT
  • 11
    7558402 WASHER STEEL
    WASHER STEEL
  • 12
    5241359 FLANGE, RELUBE W/ZERK
    FLANGE, RELUBE W/ZERK
  • 12
    7080561 FITTING
    FITTING
  • 13
    5811095 GASKET, JACKSHAFT (BLACK)
    GASKET, JACKSHAFT (BLACK)
  • 14
    3514525 BEARING
    BEARING
  • 15
    5222751 FLANGETTE
    FLANGETTE
  • 16
    7512377 BOLT
    BOLT
  • 17
    7721128 KEY
    KEY
  • 18
    1332220 JACKSHAFT ASSY., W/M15 BEARING (15 SPLINE) (INCL. 16, 19)
    JACKSHAFT ASSY., W/M15 BEARING (15 SPLINE) (INCL. 16, 19)
  • 19
    7710422 RING, RETAINING
    RING, RETAINING
  • 20
    1910403 BRAKE, DISC ASSY.
    BRAKE, DISC ASSY.
  • 21
    7515428 BOLT
    BOLT
  • 22
    5020588 SLEEVE, SEAL
    SLEEVE, SEAL
  • 23
    5410613 O-RING
    O-RING
  • 24
    7542423 NUT
    NUT
  • 25
    1590340 DRIVE SHAFT ASSY. (INCL. 14, 26, 27)
    DRIVE SHAFT ASSY. (INCL. 14, 26, 27)
  • 26
    1012945 FLANGETTE ASSY., W/SCREWS
    FLANGETTE ASSY., W/SCREWS
  • 27
    3280019 BUSHING, METAL SPEEDO
    BUSHING, METAL SPEEDO
  • 28
    5243529 FLANGETTE, OFFSET W/HOLE
    FLANGETTE, OFFSET W/HOLE
  • 29
    3280017 SQ. KEY SPEEDOMETER
    SQ. KEY SPEEDOMETER
  • 30
    5830012 GASKET, DRIVE ADAPTOR
    GASKET, DRIVE ADAPTOR
  • 31
    3280116 ADAPTER, DRIVE W/ZERK
    ADAPTER, DRIVE W/ZERK
