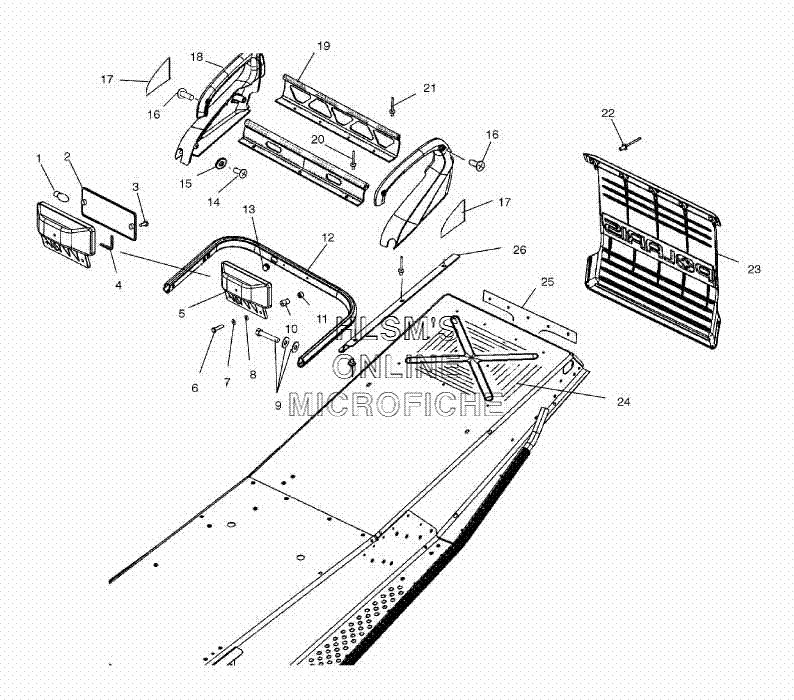

TAILLIGHT ASSY. W/ REFLECTORS AND REAR BUMPER для Polaris 800 RMK F/O 144 STOCK (S02NK8CSA) - 2002 года выпуска`
-
№АртикулНазвание
-
14030043 BULB, TAILLIGHTBULB, TAILLIGHT
-
24032014 LENS, TAILLIGHTLENS, TAILLIGHT
-
37518019 SCREWSCREW
-
44032015 GASKETGASKET
-
52410271 TAILLIGHT ASSY. (INCL. 1-4)TAILLIGHT ASSY. (INCL. 1-4)
-
67515140 SCREWSCREW
-
77552605 WASHERWASHER
-
87556033 WASHERWASHER
-
97512113 SCREWSCREW
-
97552801 LOCK WASHERLOCK WASHER
-
97558301 WASHERWASHER
-
103021186 MOUNT, RUBBER CARB DURO 55MOUNT, RUBBER CARB DURO 55
-
117555916 WASHER, NYLONWASHER, NYLON
-
122632460-309 BUMPER ASSY. 136/144 NATRL (REAR)BUMPER ASSY. 136/144 NATRL (REAR)
-
137081039 BUSHING, SNAP #2073BUSHING, SNAP #2073
-
147512094 SCREWSCREW
-
157558301 WASHERWASHER
-
167517686 SCREWSCREW
-
177079667 DECAL, REFLECTOR (RED/LEFT)DECAL, REFLECTOR (RED/LEFT)
-
177079668 DECAL, REFLECTOR (RED/RIGHT)DECAL, REFLECTOR (RED/RIGHT)
-
185434097-070 SKIRT, SNOW EDGE (LEFT/BLACK)SKIRT, SNOW EDGE (LEFT/BLACK)
-
185434098-070 SKIRT, SNOW EDGE (RIGHT/BLACK)SKIRT, SNOW EDGE (RIGHT/BLACK)
-
195133058 RACK MACHINED, EDGE RMK (FRONT)RACK MACHINED, EDGE RMK (FRONT)
-
195133059 RACK MACHINED, EDGE RMK (REAR)RACK MACHINED, EDGE RMK (REAR)
-
207661637 RIVET, INTERLOCK ZRIVET, INTERLOCK Z
-
217661130 RIVETRIVET
-
227621418 POP RIVETPOP RIVET
-
235434356-1106 FLAP, SNOW RMK (BLACK W/CHROME)FLAP, SNOW RMK (BLACK W/CHROME)
-
245412033 PROTECTOR, BED RMK EDE F/RPROTECTOR, BED RMK EDE F/R
-
245412074 PROTECTOR, BED RMK EDGE (LEFT)PROTECTOR, BED RMK EDGE (LEFT)
-
245412134 PROTECTOR, BED RMK EDGE (RIGHT)PROTECTOR, BED RMK EDGE (RIGHT)
-
255812229 SUPPORT, SNOW FLAPSUPPORT, SNOW FLAP
-
265245726 GUARD, WIRE TAILLIGHT (INCL. RIVETS)GUARD, WIRE TAILLIGHT (INCL. RIVETS)
-
267661079 RIVETRIVET
