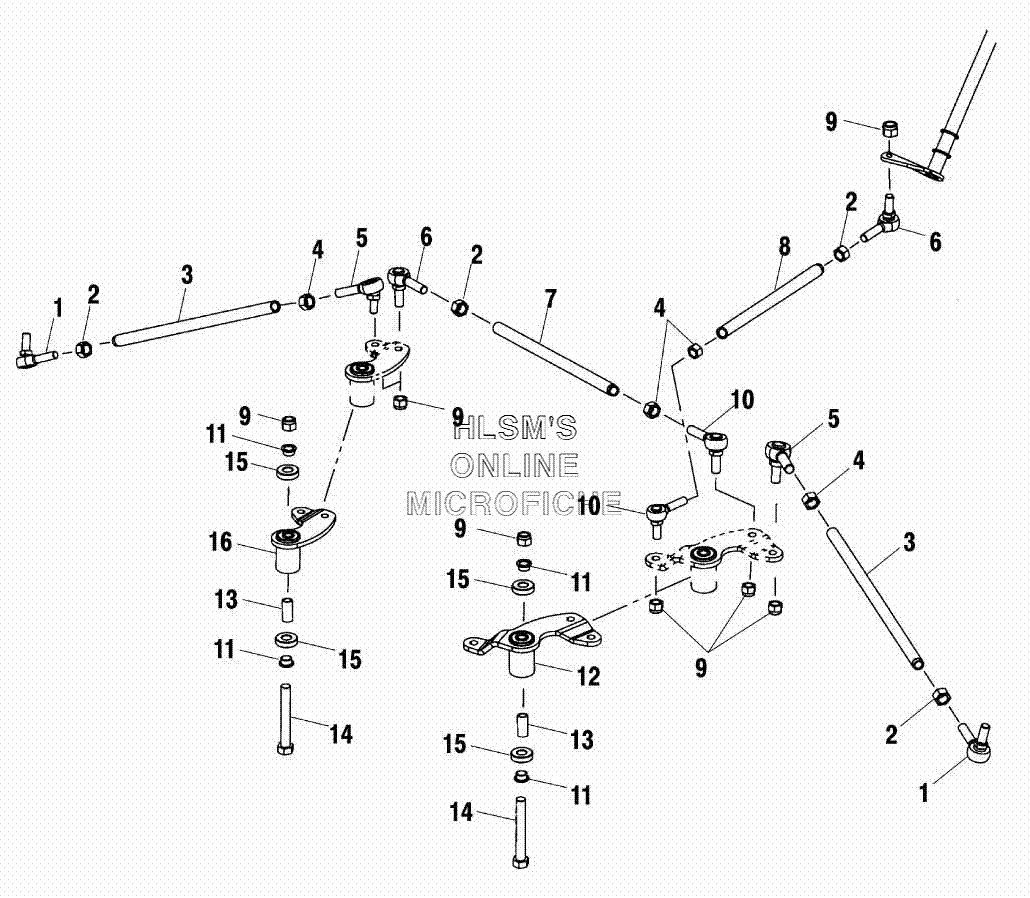

STEERING ASSEMBLY для Polaris 800 RMK F/O 144 STOCK (S02NK8CSA) - 2002 года выпуска

‹-+›
  • №
    Артикул
    Название
  • 1
    7061086 ROD-END (3/8, 50Ш, 1.00) (RIGHT)
    ROD-END (3/8, 50Ш, 1.00) (RIGHT)
  • 2
    7542401 NUT HEX
    NUT HEX
  • 3
    5333937 ROD-TIE ROD
    ROD-TIE ROD
  • 4
    7542424 NUT
    NUT
  • 5
    7061085 ROD, END (3/8, 50Ш, .750) (LEFT)
    ROD, END (3/8, 50Ш, .750) (LEFT)
  • 6
    7061076 ROD END (3/8 HI-ANGLE PR) (RIGHT)
    ROD END (3/8 HI-ANGLE PR) (RIGHT)
  • 7
    5333772 STEERING ROD RACK 11.50
    STEERING ROD RACK 11.50
  • 8
    5333773-067 ROD, DRAGLINK 12.50, STEEL (BLACK)
    ROD, DRAGLINK 12.50, STEEL (BLACK)
  • 9
    7542439 NUT, NYLOCK
    NUT, NYLOCK
  • 10
    7061075 ROD END (3/8 HI-ANGLE PR) (LEFT)
    ROD END (3/8 HI-ANGLE PR) (LEFT)
  • 11
    5132106 BUSHING, REDUCER (12MM TO .385)
    BUSHING, REDUCER (12MM TO .385)
  • 12
    1820957 ARM, PITMAN ARM, EDGE (INCL. 11, 13, 15)
    ARM, PITMAN ARM, EDGE (INCL. 11, 13, 15)
  • 13
    5133368 SPACER, TUBE PITMAN/IDLER ARMS
    SPACER, TUBE PITMAN/IDLER ARMS
  • 14
    7512435 BOLT
    BOLT
  • 15
    3514320 BEARING, BALL (600ILLU)
    BEARING, BALL (600ILLU)
  • 16
    1820959 IDLER ARM ASSY., EDGE (INCL. 11, 13, 15)
    IDLER ARM ASSY., EDGE (INCL. 11, 13, 15)
