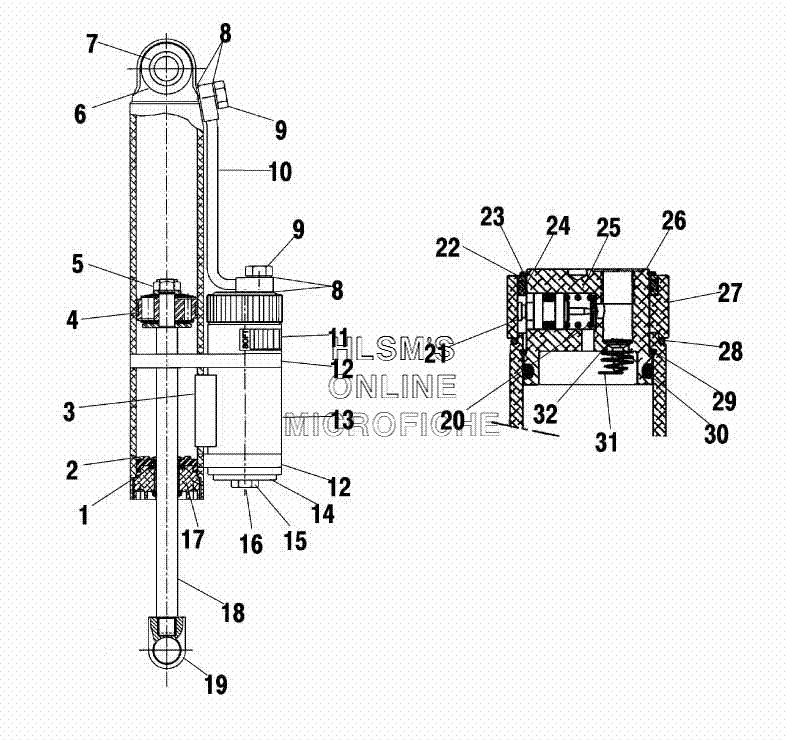

SUSPENSION - REAR SHOCK для Polaris 800 RMK F/O 144 STOCK (S02NK8CSA) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    1700021 ROD SEAL
    ROD SEAL
  • 2
    1700022 CAP SEAL
    CAP SEAL
  • 3
    1700162 ISOLATOR
    ISOLATOR
  • 4
    1700110 BANDED PISTON .094'' ORIFICE
    BANDED PISTON .094'' ORIFICE
  • 4
    1700031 PISTON WEAR BAND
    PISTON WEAR BAND
  • 4
    1700077 TOP-OUT WASHER
    TOP-OUT WASHER
  • 4
    1700078 BACK-UP WASHER
    BACK-UP WASHER
  • 5
    1700057 NUT
    NUT
  • 6
    1700073 BUSHING
    BUSHING
  • 7
    1700069 SLEEVE (.57''IDX.80''ODX1.20)
    SLEEVE (.57''IDX.80''ODX1.20)
  • 8
    1700168 WASHER, COPPER
    WASHER, COPPER
  • 9
    1700169 BOLT, BANJO
    BOLT, BANJO
  • 10
    1700167 PRESSURE LINE
    PRESSURE LINE
  • 11
    1700166 LABEL, ADJUSTMENT
    LABEL, ADJUSTMENT
  • 12
    1700163 CLAMP, CRIMP STYLE
    CLAMP, CRIMP STYLE
  • 12
    1700063 HOSE CLAMP
    HOSE CLAMP
  • 13
    1700165 RESERVOIR CYLINDER
    RESERVOIR CYLINDER
  • 14
    1700164 RES END CAP W/VALVE
    RES END CAP W/VALVE
  • 15
    1700053 PRESS, VALVE ASSY.
    PRESS, VALVE ASSY.
  • 15
    1700045 PRESS, VALVE O-RING
    PRESS, VALVE O-RING
  • 16
    1700055 VALVE SCREW
    VALVE SCREW
  • 17
    1700007 CYLINDER HEAD ASSY. (1/2'' ROD)
    CYLINDER HEAD ASSY. (1/2'' ROD)
  • 18
    1700183 SHAFT
    SHAFT
  • 19
    1700024 UPPER MOUNT
    UPPER MOUNT
  • 20
    1700177 VALVE, METERING
    VALVE, METERING
  • 21
    1700174 PLUNGER ASSY.
    PLUNGER ASSY.
  • 22
    1700173 SPACER
    SPACER
  • 23
    1700175 RING-RETAINING
    RING-RETAINING
  • 24
    1700051 CYLINDER HEAD O-RING
    CYLINDER HEAD O-RING
  • 25
    1700176 SPRING, COMPRESSION
    SPRING, COMPRESSION
  • 26
    1700181 HOUSING, ADJUSTER
    HOUSING, ADJUSTER
  • 27
    1700172 ADJUSTING KNOB
    ADJUSTING KNOB
  • 28
    1700171 O-RING
    O-RING
  • 29
    1700170 CIRCLIP
    CIRCLIP
  • 30
    1700149 CYLINDER HEAD O-RING
    CYLINDER HEAD O-RING
  • 31
    1700179 SPRING, REPLENISH VALVE
    SPRING, REPLENISH VALVE
  • 32
    1700178 VALVE, REPLENISHING
    VALVE, REPLENISHING
  • 32
    7041968 SHOCK-R/T, RMK IFP COMP ADJUST
    SHOCK-R/T, RMK IFP COMP ADJUST
  • 32
    1700023 IFP
    IFP
  • 32
    1700032 IFP WEAR BAND
    IFP WEAR BAND
  • 32
    1700048 IFP O-RING
    IFP O-RING
