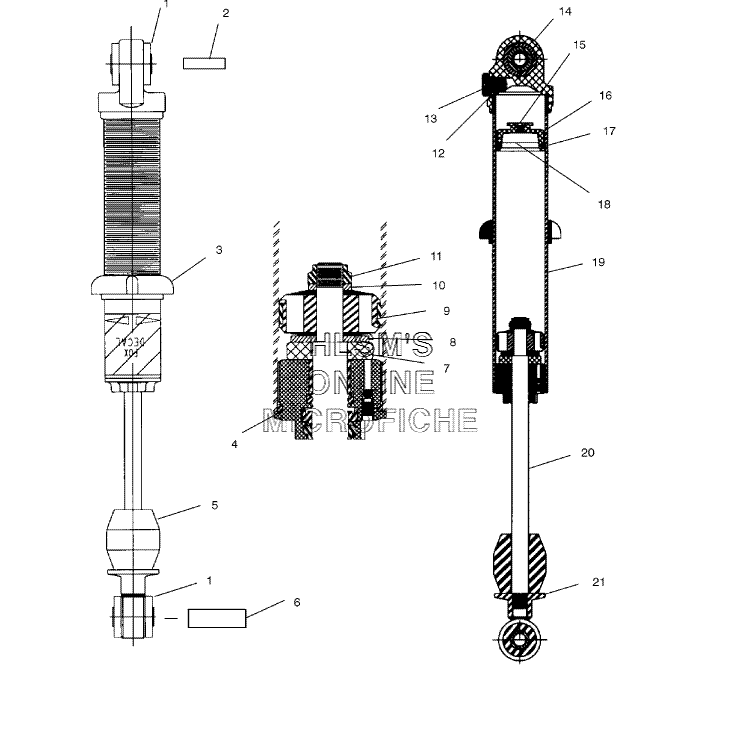

SUSPENSION - FOX SHOCK - IFS LEFT AND RIGHT HAND- FRONT для Polaris 700 XC SP (S02NP7CSA) - 2002 года выпуска`
-
№АртикулНазвание
-
1A7041976 SHOCK, IFSSHOCK, IFS
-
1B2200618 VALVE PISTON KITVALVE PISTON KIT
-
11500137 BUSHING, EYELETBUSHING, EYELET
-
25020613 BUSHINGBUSHING
-
35432304 RING, SPRING PRELOADRING, SPRING PRELOAD
-
41500186 BEARING ASSYBEARING ASSY
-
41500020 O-RINGO-RING
-
41500021 O-RING (INNER)O-RING (INNER)
-
41500268 SEAL, WIPER URETHANESEAL, WIPER URETHANE
-
41500266 U-CUP-4300 URETHU-CUP-4300 URETH
-
41500070 SCREWSCREW
-
41500071 BALLBALL
-
55410855 BUMPER, JOUNCEBUMPER, JOUNCE
-
61500138 SLEEVE, STEELSLEEVE, STEEL
-
75431355 SPACERSPACER
-
81500017 PLATE, OUT (TOP)PLATE, OUT (TOP)
-
91500002 DAMPER, PISTON RINGDAMPER, PISTON RING
-
101500015 BUSHING, BACKUPBUSHING, BACKUP
-
111500016 NUT, LOCKNUT, LOCK
-
121500108 O-RINGO-RING
-
131500014 VALVE ASSY., AIRVALVE ASSY., AIR
-
131500019 SCREWSCREW
-
131500023 O-RING (OUTER)O-RING (OUTER)
-
141500316 CAP BODY ASSY.CAP BODY ASSY.
-
151500018 SCREWSCREW
-
151500022 O-RING, DRUM (OUTER)O-RING, DRUM (OUTER)
-
161500003 O-RING, ENDCAPO-RING, ENDCAP
-
171500006 RING, PISTON FLOATINGRING, PISTON FLOATING
-
181500187 PISTON, FLOATINGPISTON, FLOATING
-
191500289 BODYBODY
-
201500205 SHAFTSHAFT
-
211500317 EYELETEYELET
