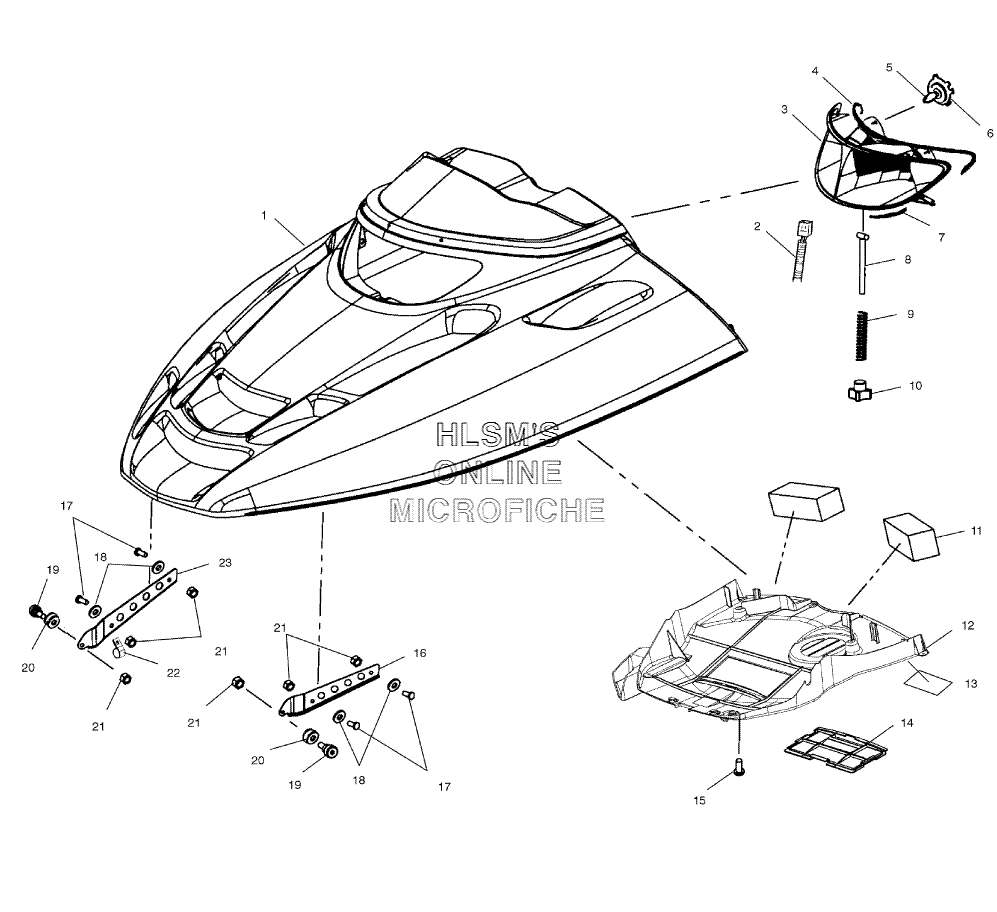

HOOD ASSEMBLY W/ HEADLIGHT для Polaris 700 XC SP (S02NP7CSA) - 2002 года выпуска
‹-+›
-
№АртикулНазвание
-
12632440-177 HOOD ASSY. (BLACK)HOOD ASSY. (BLACK)
-
12632440-293 HOOD ASSY. (RED)HOOD ASSY. (RED)
-
22460791 HARNESS, HEADLIGHT EDGE COMMONHARNESS, HEADLIGHT EDGE COMMON
-
32410132 HEADLAMP ASSY. (INCL. BULBS)HEADLAMP ASSY. (INCL. BULBS)
-
45812175 FOAM, HEADLIGHT SEAL (TOP)FOAM, HEADLIGHT SEAL (TOP)
-
52870448 BULB, QUARTZ HEADLIGHTBULB, QUARTZ HEADLIGHT
-
64032063 RETAINER, HEADLIGHT BULBRETAINER, HEADLIGHT BULB
-
75812174 FOAM, HEADLIGHT SEAL EDGE (BOTTOM)FOAM, HEADLIGHT SEAL EDGE (BOTTOM)
-
87517872 BOLT, TEE ADJUSTERBOLT, TEE ADJUSTER
-
97041954 SPRING-HEADLIGHT ADJUSTSPRING-HEADLIGHT ADJUST
-
107080887 KNOB, HEADLIGHT ADJUST LOCKINGBKNOB, HEADLIGHT ADJUST LOCKINGB
-
115811793 FOAM, PREFILTERFOAM, PREFILTER
-
125433516 PLENUM, HOOD INTAKEPLENUM, HOOD INTAKE
-
137079197 DECAL, SUSPENSION SET-UPDECAL, SUSPENSION SET-UP
-
145433660 COVER, HEADLIGHT ACCESSCOVER, HEADLIGHT ACCESS
-
157512068 SCREWSCREW
-
165243567-067 HINGE (UPPER/LEFT/BLACK)HINGE (UPPER/LEFT/BLACK)
-
177512240 BOLTBOLT
-
187558301 WASHERWASHER
-
197512113 SCREWSCREW
-
205332403 SPACER, HINGESPACER, HINGE
-
217542122 NUT, LOCKNUT, LOCK
-
227080367 CLAMP, CABLECLAMP, CABLE
-
235243568-067 HINGE (UPPER/RIGHT/BLACK)HINGE (UPPER/RIGHT/BLACK)
Все узлы модели:
- AIR BOX
- BRAKE ASSEMBLY
- CARBURETOR ASSEMBLY
- CARBURETOR LINKAGE ASSEMBLY
- CHAINCASE ASSEMBLY
- CLUTCH - DRIVE
- CLUTCH - DRIVEN
- CONSOLE
- COOLING SYSTEM
- CRANKCASE ASSEMBLY
- CYLINDER ASSEMBLY
- DECALS
- DRIVE TRAIN ASSEMBLY W/ DRIVE BELT
- ELECTRICAL - MAGNETO ASSEMBLY W/ COIL
- ENGINE MOUNTING W/ SHORT BLOCK
- EXHAUST SYSTEM
- FRAME - CHASSIS
- HANDLEBAR ASSEMBLY
- HOOD - FOAM/FOIL
- • HOOD ASSEMBLY W/ HEADLIGHT
- HOOD ASSEMBLY W/ WINDSHIELD
- NOSEPAN ASSEMBLY #1
- NOSEPAN ASSEMBLY #2
- PISTON AND CRANKSHAFT
- RAIL ASSEMBLY W/ IDLER WHEELS
- SEAT W/ GAS TANK ASSEMBLY
- SKI ASSEMBLY
- STARTER - RECOIL ASSEMBLY
- STARTING MOTOR
- STEERING ASSEMBLY
- SUSPENSION - FOX SHOCK - FRONT TRACK
- SUSPENSION - FOX SHOCK - IFS LEFT AND RIGHT HAND- FRONT
- SUSPENSION - FOX SHOCK - REAR TRACK
- SUSPENSION - FRONT
- SUSPENSION - FRONT TORQUE ARM ASSEMBLY
- SUSPENSION - REAR TORQUE ARM ASSEMBLY
- SUSPENSION - REAR TRACK
- TOOL KIT
- WATER PUMP/OIL PUMP
