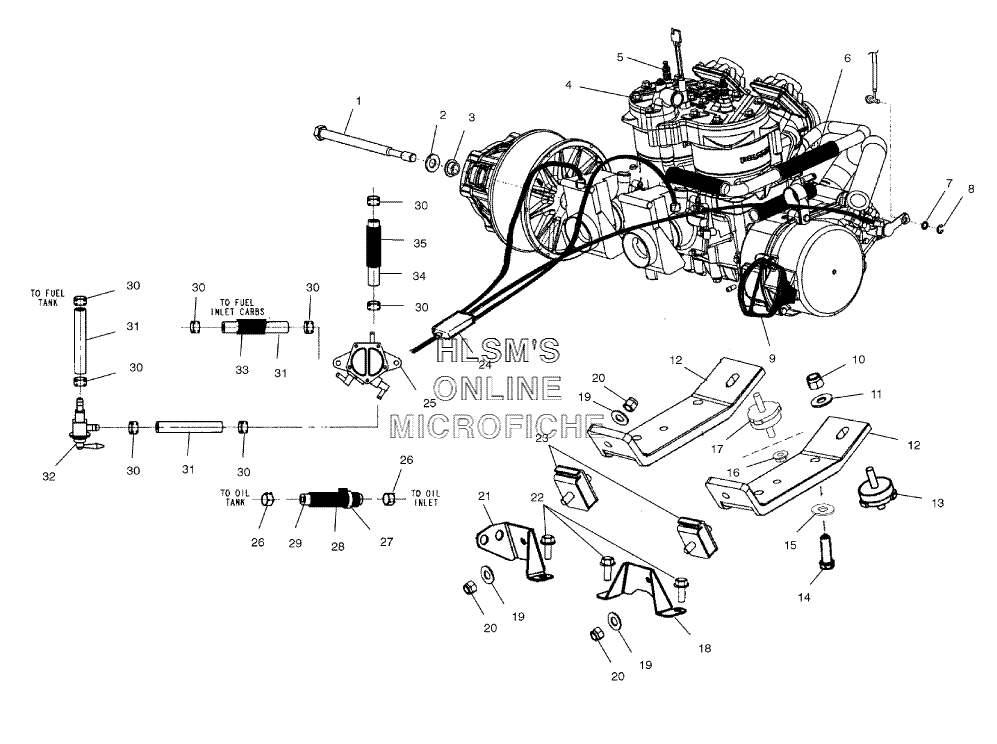

ENGINE MOUNTING W/ SHORT BLOCK для Polaris 700 XC SP (S02NP7CSA) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    7517501 SCREW
    SCREW
  • 2
    7556003 WASHER
    WASHER
  • 3
    5131872 WASHER, CLUTCH RET.
    WASHER, CLUTCH RET.
  • 4
    2201934 SHORT BLOCK
    SHORT BLOCK
  • 5
    3070190 SPARK PLUG RN57Y
    SPARK PLUG RN57Y
  • 6
    5521398-13 CONDUIT, FLEX (.75''ID)
    CONDUIT, FLEX (.75''ID)
  • 7
    7555944 WASHER
    WASHER
  • 8
    7710427 RING-E, RET.
    RING-E, RET.
  • 9
    5431499 HANDLE, RECOIL (BLACK)
    HANDLE, RECOIL (BLACK)
  • 10
    7542451 NUT, NYLOC
    NUT, NYLOC
  • 11
    7555893 WASHER
    WASHER
  • 12
    5245462 STRAP, ENGINE MOUNT (LEFT)
    STRAP, ENGINE MOUNT (LEFT)
  • 12
    5245475 STRAP, ENGINE MOUNT (RIGHT)
    STRAP, ENGINE MOUNT (RIGHT)
  • 13
    3021290 MOUNT, ENGINE
    MOUNT, ENGINE
  • 14
    7512539 BOLT
    BOLT
  • 15
    7553101 WASHER, LOCK
    WASHER, LOCK
  • 16
    7547180 NUT, FLANGED
    NUT, FLANGED
  • 17
    3021220 MOUNT, ENGINE
    MOUNT, ENGINE
  • 18
    5245044 BRACKET, ENGINE MOUNT (RIGHT)
    BRACKET, ENGINE MOUNT (RIGHT)
  • 19
    7555806 WASHER
    WASHER
  • 20
    7547008 NUT, FLEXLOCK
    NUT, FLEXLOCK
  • 21
    1013397 WELD, ENGINE MOUNT BRACKET (LEFT)
    WELD, ENGINE MOUNT BRACKET (LEFT)
  • 22
    7517854 SCREW
    SCREW
  • 23
    3021206 MOUNT, ENGINE
    MOUNT, ENGINE
  • 24
    7080897 CABLE, THROTTLE
    CABLE, THROTTLE
  • 25
    2520260 PUMP, FUEL
    PUMP, FUEL
  • 26
    7080307 CLAMP
    CLAMP
  • 27
    7080138 STRAP, PANDUIT
    STRAP, PANDUIT
  • 28
    8360058-40 CONVOLUTED TUBING
    CONVOLUTED TUBING
  • 29
    8450003-1525 FUEL LINE (1/4 ID 1525 CM.)
    FUEL LINE (1/4 ID 1525 CM.)
  • 30
    7080003 CLAMP, HOSE
    CLAMP, HOSE
  • 31
    8350017-600 FUEL LINE, ETHER 5/16'' (RED)
    FUEL LINE, ETHER 5/16'' (RED)
  • 32
    7052268 VLV, FUEL SHUTOFF
    VLV, FUEL SHUTOFF
  • 33
    863052-15 TUBING, CONVOLUTED
    TUBING, CONVOLUTED
  • 34
    8450040-600 FUEL LINE (1/4 ID 600 CM.)
    FUEL LINE (1/4 ID 600 CM.)
  • 35
    8360052-25 TUBING, CONVOLUTED
    TUBING, CONVOLUTED
