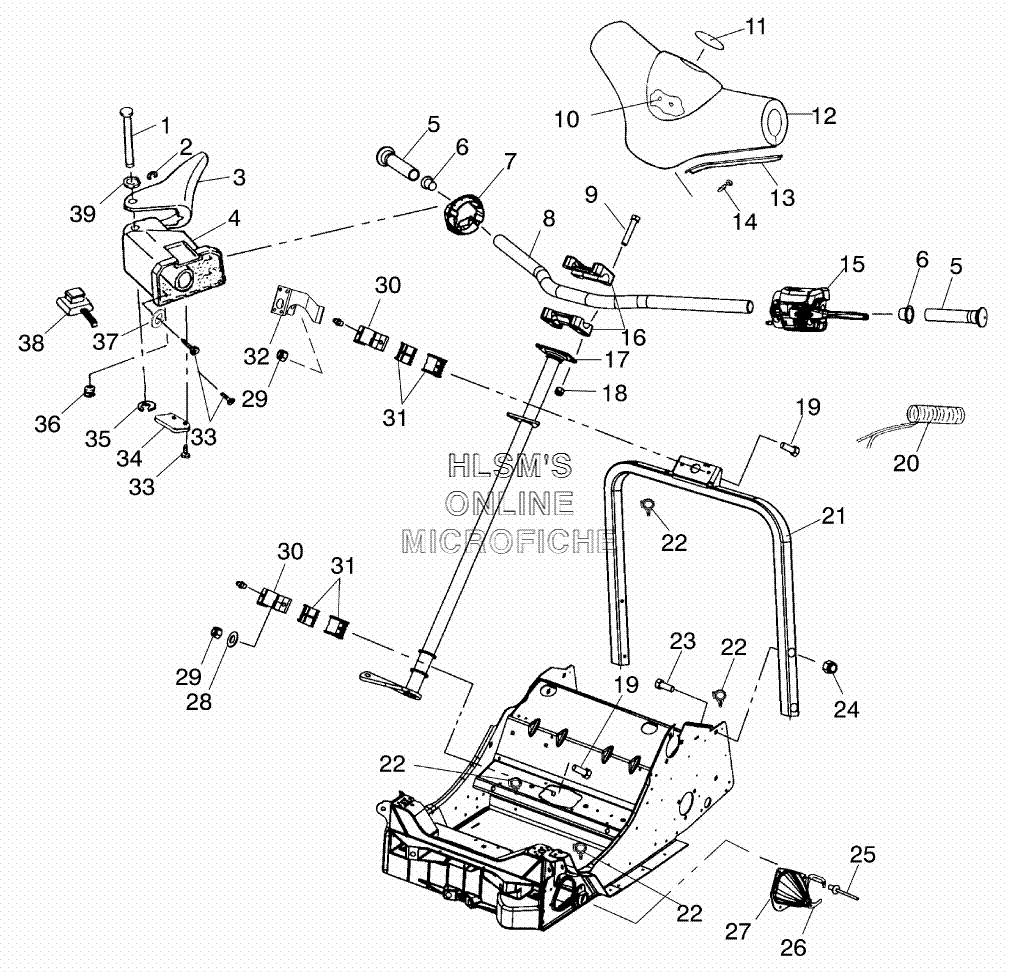

STEERING POST ASSY W/ HANDLEBAR ASSY для Polaris 700 XC SP F/O (S02NP7CS) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    7661624 PIN, HINGE
    PIN, HINGE
  • 2
    7710503 RETAINING RING
    RETAINING RING
  • 3
    5432970 THROTLE, LEVER (35.5MM)
    THROTLE, LEVER (35.5MM)
  • 3
    2010171 LEVER ASSY., HTR, HI/LO (35.5MM)
    LEVER ASSY., HTR, HI/LO (35.5MM)
  • 4
    5431592 BLOCK, THROTTLE/BRAKE
    BLOCK, THROTTLE/BRAKE
  • 5
    5432634 GRIP, HANDLEBAR
    GRIP, HANDLEBAR
  • 6
    5431096 PLUG, OVERFLOW
    PLUG, OVERFLOW
  • 7
    5433345 ADAPTER-BLOCK, THROTTLE
    ADAPTER-BLOCK, THROTTLE
  • 8
    5243355-067 HANDLE BAR (BLACK)
    HANDLE BAR (BLACK)
  • 9
    7517238 SCREW
    SCREW
  • 10
    7670106 NUT, PUSH ON (.170-.180-Y)
    NUT, PUSH ON (.170-.180-Y)
  • 11
    5434179 EMBLEM-''STAR'' PLM.BEZEL, HANDLEBAR
    EMBLEM-''STAR'' PLM.BEZEL, HANDLEBAR
  • 12
    5433159-070 COVER, HANDLEBAR (BLACK)
    COVER, HANDLEBAR (BLACK)
  • 13
    5433160-070 SLIDE, HANDLEBAR COVER (BLACK)
    SLIDE, HANDLEBAR COVER (BLACK)
  • 14
    4010287 DART-CLIP NYLON (BLACK)
    DART-CLIP NYLON (BLACK)
  • 16
    5630187-067 BLOCK, HANDLEBAR
    BLOCK, HANDLEBAR
  • 17
    1820965-067 WELD-STEERING POST, EDGE (BLACK)
    WELD-STEERING POST, EDGE (BLACK)
  • 18
    7542122 NUT-LOCK
    NUT-LOCK
  • 19
    7517579 BOLT, CARR. (5/16-X1''GR5 Y LO)
    BOLT, CARR. (5/16-X1''GR5 Y LO)
  • 20
    2460677 HEATER, GRIP (LO/MED/HI)
    HEATER, GRIP (LO/MED/HI)
  • 21
    1013602-067 WELD-STEERING HOOP, REV. (BLACK) [EDGE]
    WELD-STEERING HOOP, REV. (BLACK) [EDGE]
  • 21
    1013262-067 STEERING HOOP (BLACK) [M-10]
    STEERING HOOP (BLACK) [M-10]
  • 22
    4020139 CLIP, PLASTIC
    CLIP, PLASTIC
  • 23
    7512377 BOLT
    BOLT
  • 24
    7542343 NUT, NYLOCK
    NUT, NYLOCK
  • 25
    7621433 RIVET
    RIVET
  • 26
    5244470 PLATE, TIE ROD BOOT
    PLATE, TIE ROD BOOT
  • 27
    5433532 BOOT, TIE ROD (LEFT)
    BOOT, TIE ROD (LEFT)
  • 27
    5433533 BOOT, TIE ROD (RIGHT)
    BOOT, TIE ROD (RIGHT)
  • 28
    7558402 WASHER STEEL
    WASHER STEEL
  • 29
    7542324 NUT
    NUT
  • 30
    5131841 BRACKET, STEER.POST
    BRACKET, STEER.POST
  • 30
    7080510 FITTING, ZERK
    FITTING, ZERK
  • 31
    5432785 BUSHING, STEER.POST
    BUSHING, STEER.POST
  • 32
    5244829 BRACKET-CONSOLE SUPPORT
    BRACKET-CONSOLE SUPPORT
  • 33
    7511848 SCREW (SEMS)
    SCREW (SEMS)
  • 34
    5432261 HOLDER, WIRE
    HOLDER, WIRE
  • 35
    7710401 E-RING
    E-RING
  • 36
    7512465 SCREW
    SCREW
  • 37
    7555727 RIVET BURR
    RIVET BURR
  • 38
    4110106 SWITCH, AUX.SHUT-OFF
    SWITCH, AUX.SHUT-OFF
  • 39
    7555730 WASHER
    WASHER
