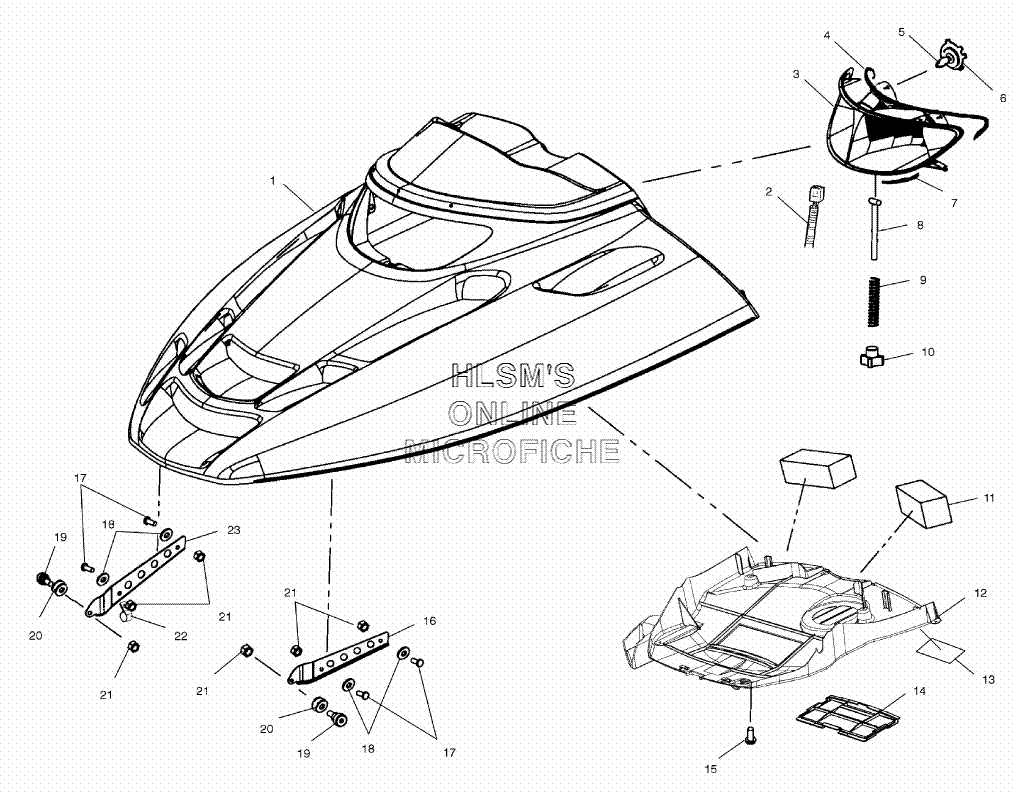

HOOD ASSEMBLY W/ WINDSHIELD для Polaris 700 XC SP F/O (S02NP7CS) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    2632440-293 HOOD ASSY. (RED)
    HOOD ASSY. (RED)
  • 1
    2632440-177 HOOD ASSY. (BLACK)
    HOOD ASSY. (BLACK)
  • 1
    2632440-341 HOOD ASSY. (SONIC BLUE)
    HOOD ASSY. (SONIC BLUE)
  • 2
    2460791 HARNESS, HEADLIGHT
    HARNESS, HEADLIGHT
  • 3
    2410132 HEADLAMP ASSY. (INCL. BULBS)
    HEADLAMP ASSY. (INCL. BULBS)
  • 4
    5812175 FOAM, HEADLIGHT SEAL
    FOAM, HEADLIGHT SEAL
  • 5
    2870448 BULB, QUARTZ HEADLIGHT
    BULB, QUARTZ HEADLIGHT
  • 6
    4032063 RETAINER, HEADLIGHT BULB
    RETAINER, HEADLIGHT BULB
  • 7
    5812174 FOAM, HEADLIGHT SEAL (BOTTOM)
    FOAM, HEADLIGHT SEAL (BOTTOM)
  • 8
    7517872 BOLT, TEE ADJUSTER (2.25)
    BOLT, TEE ADJUSTER (2.25)
  • 9
    7041954 SPRING, HEADLIGHT ADJUST
    SPRING, HEADLIGHT ADJUST
  • 10
    7080887 KNOB, HEADLIGHT ADJUST LOCKINGB
    KNOB, HEADLIGHT ADJUST LOCKINGB
  • 11
    5811793 FOAM, PREFILTER
    FOAM, PREFILTER
  • 12
    2632491 PLENUM, FOIL ASSY.
    PLENUM, FOIL ASSY.
  • 12
    5812324 FOIL, PLENUM
    FOIL, PLENUM
  • 12
    5811948 FOIL (4.5X1.0)
    FOIL (4.5X1.0)
  • 13
    7079197 DECAL, SUSPENSION SET-UP (EDGE)
    DECAL, SUSPENSION SET-UP (EDGE)
  • 13
    7079333 DECAL, SUSPENSION SET-UP (M-10)
    DECAL, SUSPENSION SET-UP (M-10)
  • 14
    5433660 COVER, HEADLIGHT ACCESS
    COVER, HEADLIGHT ACCESS
  • 15
    7512068 SCREW
    SCREW
  • 16
    5243567-067 HINGE (UPPER/LEFT/BLACK)
    HINGE (UPPER/LEFT/BLACK)
  • 17
    7512240 BOLT
    BOLT
  • 18
    7558301 WASHER
    WASHER
  • 19
    7512113 SCREW
    SCREW
  • 20
    5332403 SPACER, HINGE
    SPACER, HINGE
  • 21
    7542122 NUT, LOCK
    NUT, LOCK
  • 22
    7080367 CLAMP, CABLE
    CLAMP, CABLE
  • 23
    5243568-067 HINGE (UPPER/RIGHT/BLACK)
    HINGE (UPPER/RIGHT/BLACK)
