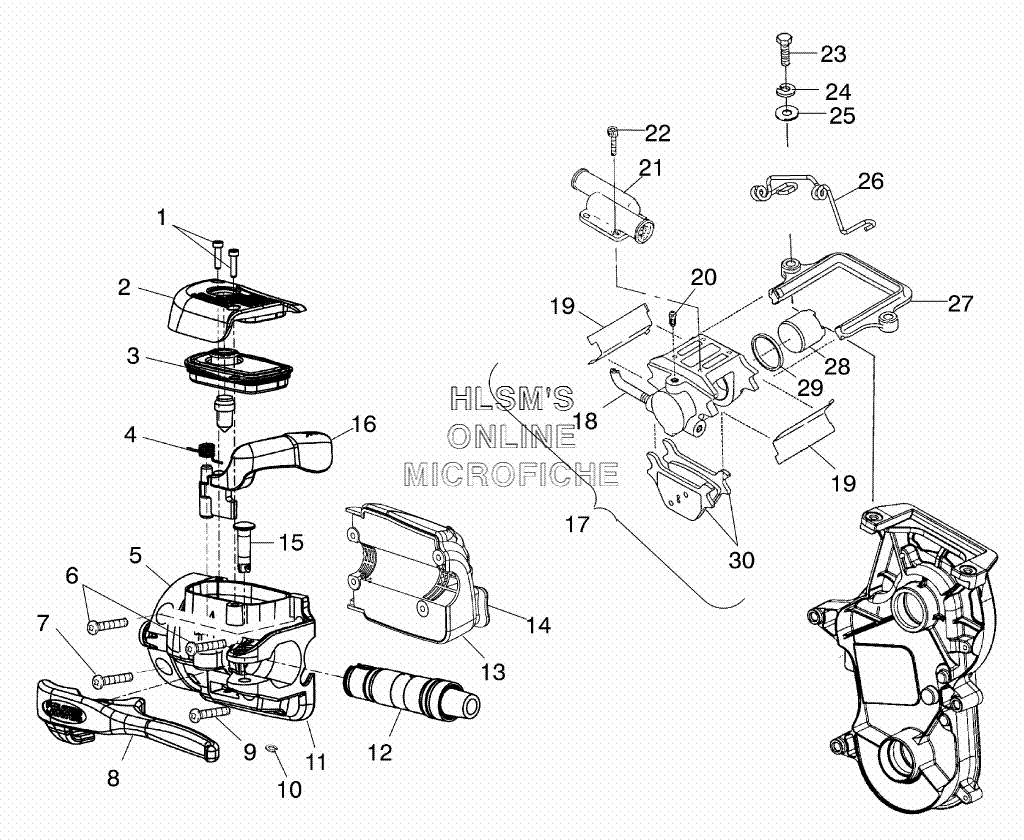

BRAKE ASSEMBLY для Polaris 700 XC SP F/O (S02NP7CS) - 2002 года выпуска

‹-+›
  • №
    Артикул
    Название
  • 1
    2201254 COVER SCREW KIT
    COVER SCREW KIT
  • 2
    2201255 COVER ASSY. (INCL. 1, 3)
    COVER ASSY. (INCL. 1, 3)
  • 4
    2201250 PARKLEVER SPRING KIT
    PARKLEVER SPRING KIT
  • 5
    2010209 MASTER CYLINDER KIT (INCL. 2, 4, 8, 11, 12, 15)
    MASTER CYLINDER KIT (INCL. 2, 4, 8, 11, 12, 15)
  • 6
    7517441 SCREW
    SCREW
  • 7
    7512078 SCREW
    SCREW
  • 8
    2201943 LEVER, 3 NOTCH/PIN/RING KIT
    LEVER, 3 NOTCH/PIN/RING KIT
  • 9
    7517566 SCREW
    SCREW
  • 10
    2201945 SNAP RING KIT
    SNAP RING KIT
  • 11
    2201948 MASTER CYLINDER KIT
    MASTER CYLINDER KIT
  • 11
    4010157 SWITCH, BRAKE LIGHT
    SWITCH, BRAKE LIGHT
  • 12
    2201944 5/8'' CARTRIDGE SUB ASSY.
    5/8'' CARTRIDGE SUB ASSY.
  • 13
    2010167 CONTROL ASSY. (LEFT)
    CONTROL ASSY. (LEFT)
  • 14
    5433291 BUTTON, SWITCH HI/LO
    BUTTON, SWITCH HI/LO
  • 15
    2201946 PIVOT PIN, ALUM W/SNAP RING
    PIVOT PIN, ALUM W/SNAP RING
  • 16
    2201251 PARKLEVER AND SPRING KIT (INCL. 4)
    PARKLEVER AND SPRING KIT (INCL. 4)
  • 17
    1910344 BRAKE CALIPER (INCL. 28, 29, 30)
    BRAKE CALIPER (INCL. 28, 29, 30)
  • 18
    1910546 LINE, BRAKE
    LINE, BRAKE
  • 19
    2200467 CLIP SPRING KIT (QTY. 2)
    CLIP SPRING KIT (QTY. 2)
  • 20
    1930735 INLET KIT
    INLET KIT
  • 21
    1930728 COOLER, WATER BRAKE
    COOLER, WATER BRAKE
  • 21
    2201024 GASKET, BRAKE COOLER
    GASKET, BRAKE COOLER
  • 22
    1930729 SCREW SET (PKG. OF 4)
    SCREW SET (PKG. OF 4)
  • 23
    7515521 BOLT
    BOLT
  • 24
    7552603 WASHER
    WASHER
  • 25
    7555801 WASHER
    WASHER
  • 26
    5244413 GUIDE, ROPE
    GUIDE, ROPE
  • 27
    1930733 CALIPER BRACKET KIT
    CALIPER BRACKET KIT
  • 28
    1930734 PISTON SEAL (INCL. 29)
    PISTON SEAL (INCL. 29)
  • 29
    2200466 SEAL
    SEAL
  • 30
    2201430 BRAKE PAD KIT (INCL. 19)
    BRAKE PAD KIT (INCL. 19)
