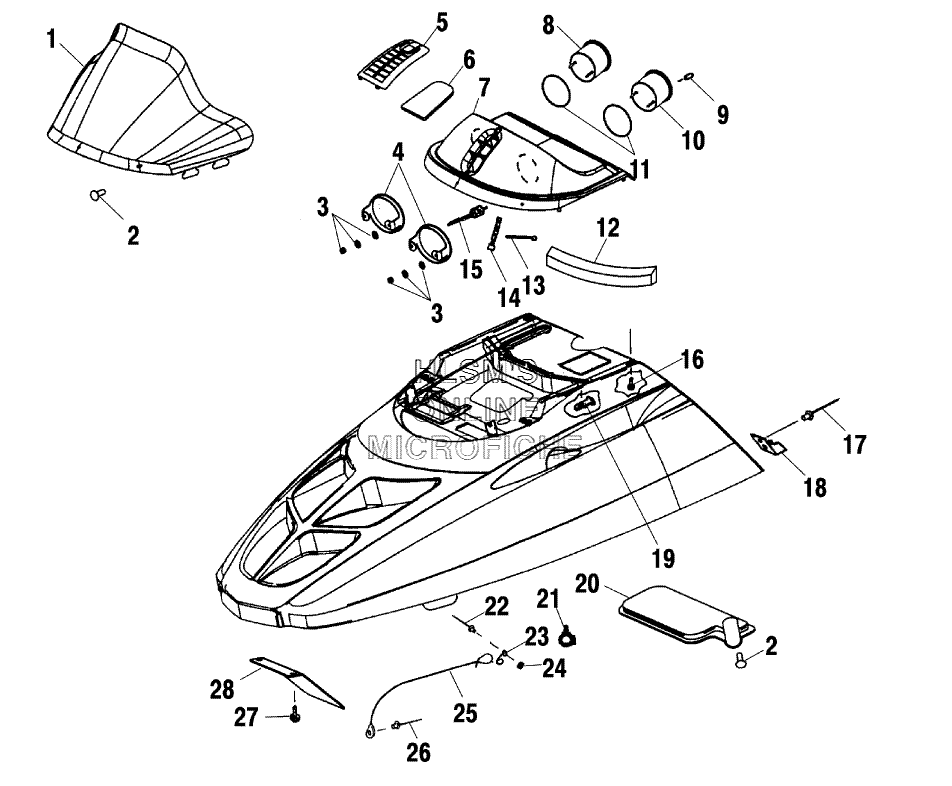

WINDSHIELD W/ GUAGES AND HOOD RETAINER для Polaris 700 SKS (S02SS7CS) - 2002 года выпуска`
-
№АртикулНазвание
-
15433165 WINDSHIELD-GEN 2, FLR, 14'' SMOKEWINDSHIELD-GEN 2, FLR, 14'' SMOKE
-
27621509 RIVET, PLASTI-LOC.RIVET, PLASTI-LOC.
-
33280158 NUTNUT
-
33280156 WASHER, SPLIT LOCKWASHER, SPLIT LOCK
-
33280157 WASHER, FLAT,WASHER, FLAT,
-
43280210 BRACKET, TACHOMETER/SPEEDOOMETER, 5''BRACKET, TACHOMETER/SPEEDOOMETER, 5''
-
55433419 COVER-INTAKE, INSTR, HOUS, SRPCOVER-INTAKE, INSTR, HOUS, SRP
-
65811821 FOAM, PREFILTER, SRPFOAM, PREFILTER, SRP
-
72632106 INSTR HOUSING ASSY, SRP, 45TH ANV (INCL. WARNING DECALS)INSTR HOUSING ASSY, SRP, 45TH ANV (INCL. WARNING DECALS)
-
83280329 TACHOMETER, 6 P, W/FUEL LIGHT (WHITE)TACHOMETER, 6 P, W/FUEL LIGHT (WHITE)
-
84030015 BULB TAILLIGHT/TACHOMETER/SPEEDOMETERBULB TAILLIGHT/TACHOMETER/SPEEDOMETER
-
93280186 KNOB, TRIP ODOMETER, (LEFT) THD.KNOB, TRIP ODOMETER, (LEFT) THD.
-
103280328 SPEEDO, 5'' , 120MPH, (WHITE)SPEEDO, 5'' , 120MPH, (WHITE)
-
104030015 BULB TAILLIGHT/TACHOMETER/SPEEDOMETERBULB TAILLIGHT/TACHOMETER/SPEEDOMETER
-
113280209 CUSHION, TACHOMETER/SPEEDOMETER, RUBBERCUSHION, TACHOMETER/SPEEDOMETER, RUBBER
-
125811822 FOAM, HEADLIGHT/POD SEAL SRPFOAM, HEADLIGHT/POD SEAL SRP
-
137080138 STRAP PANDUITSTRAP PANDUIT
-
142460732 HARNESS-HEADLIGHT, G2 COMMONHARNESS-HEADLIGHT, G2 COMMON
-
153280341 CABLE, SPEEDOMETER, 90 IN.CABLE, SPEEDOMETER, 90 IN.
-
167517441 SCREWSCREW
-
177621334 RIVETRIVET
-
185430733 CUP, HOOD LATCHCUP, HOOD LATCH
-
195410970 RETAINER, WINDSHIELDRETAINER, WINDSHIELD
-
205433723 COVER, ACCESS, HEADLIGHT, SRPCOVER, ACCESS, HEADLIGHT, SRP
-
217080886 CLIP, (ROSEBUD/GRAY)CLIP, (ROSEBUD/GRAY)
-
227661084 RIVET, 3/16 (.251-.375)RIVET, 3/16 (.251-.375)
-
235242893 CLIP, PIGTAILCLIP, PIGTAIL
-
247555904 BURR, RIVETBURR, RIVET
-
257080764 CABLE, HOOD, HYB.CABLE, HOOD, HYB.
-
267621402 POP RIVETPOP RIVET
-
277512068 SCREWSCREW
-
285243393 DEFLECTOR-AIRDEFLECTOR-AIR
