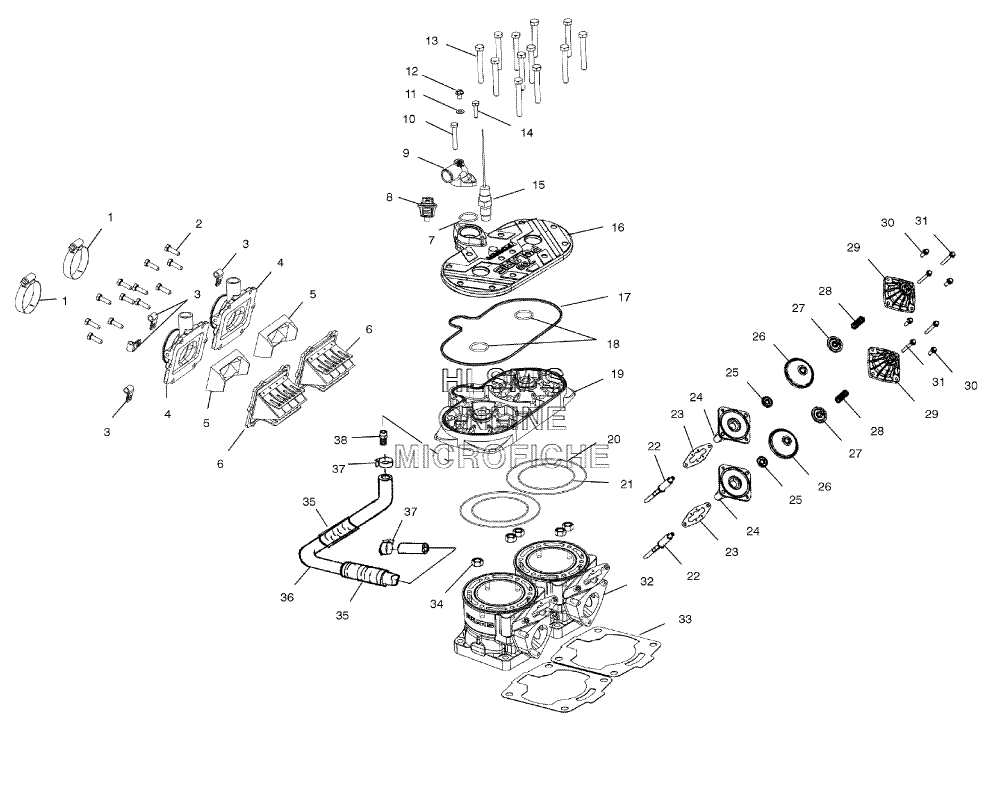

CYLINDER ASSEMBLY для Polaris 700 SKS (S02SS7CS) - 2002 года выпуска
-
№АртикулНазвание
-
17080681 CLAMP, HOSE S.S.CLAMP, HOSE S.S.
-
27517398 SCREWSCREW
-
37080683 CLAMP, HOSECLAMP, HOSE
-
41253327 ADAPTER, CARB, 40MM, SNOADAPTER, CARB, 40MM, SNO
-
55433151 STUFFER-REED BLOCK, NOKSTUFFER-REED BLOCK, NOK
-
61201825 VALVE, REED, ASSYVALVE, REED, ASSY
-
75411521 O-RING, LIPSEALO-RING, LIPSEAL
-
87052258 THERMOSTAT-120ШF W/O BYPASSTHERMOSTAT-120ШF W/O BYPASS
-
95630992 COVER-THERMOSTAT, M6 BLEED LGCOVER-THERMOSTAT, M6 BLEED LG
-
107516818 SCREWSCREW
-
117555998 WASHER, FLATWASHER, FLAT
-
127517679 SCREW, M6X1.0 X 13, SL/HX/FL-ZSCREW, M6X1.0 X 13, SL/HX/FL-Z
-
137517534 SCREW, M8X1.25X60SCREW, M8X1.25X60
-
147516822 SCREWSCREW
-
154010398 SENSOR-THERMISTER, ESX8477ASENSOR-THERMISTER, ESX8477A
-
165631201-366 COVER-HEAD 81MM 700 RED E-COATCOVER-HEAD 81MM 700 RED E-COAT
-
175411294 SEAL, RUBBER, HEADSEAL, RUBBER, HEAD
-
185410917 O-RINGO-RING
-
193021210 HEAD-CYL 81MM, TWIN SNOW, EVHEAD-CYL 81MM, TWIN SNOW, EV
-
205410931 O-RINGO-RING
-
215410932 O-RINGO-RING
-
221202091 VALVE-GUILLOTINE GEN 3.5,700EVVALVE-GUILLOTINE GEN 3.5,700EV
-
235812241 GASKET-BASE TO CYL EXH VALVEGASKET-BASE TO CYL EXH VALVE
-
241202216 BASE EXH VALVE DOM ASSYBASE EXH VALVE DOM ASSY
-
255132950 WASHER-BELLOWS, EXH VALVE, DOMWASHER-BELLOWS, EXH VALVE, DOM
-
265412056 BELLOWS-FABRIC POLYESTERBELLOWS-FABRIC POLYESTER
-
275631152 CAP/NUT,BELLOWS-EXH VALVE DOMCAP/NUT,BELLOWS-EXH VALVE DOM
-
287041786-08 SPRING-COMP, GEN 3.5EV, (GREEN/YELLOW)SPRING-COMP, GEN 3.5EV, (GREEN/YELLOW)
-
295434175 HOUSING-BELLOWS EXH VALVE BUSHHOUSING-BELLOWS EXH VALVE BUSH
-
307516820 SCREWSCREW
-
317517932 SCR-M6X1.0X50.0 HX/FL-YDSCR-M6X1.0X50.0 HX/FL-YD
-
323021203 CYLINDER-81MM SNO EVCYLINDER-81MM SNO EV
-
335811538 GASKET, CYL.BASEGASKET, CYL.BASE
-
347547013 NUTNUT
-
355521398-96 CONDUIT, FLEX (.75'' ID)CONDUIT, FLEX (.75'' ID)
-
365411536 HOSE, BYPASSHOSE, BYPASS
-
377081030 CLAMP-BYPASS NORMA #24-15CLAMP-BYPASS NORMA #24-15
-
387052222 FITTING, 1/2ID.HOSEFITTING, 1/2ID.HOSE
