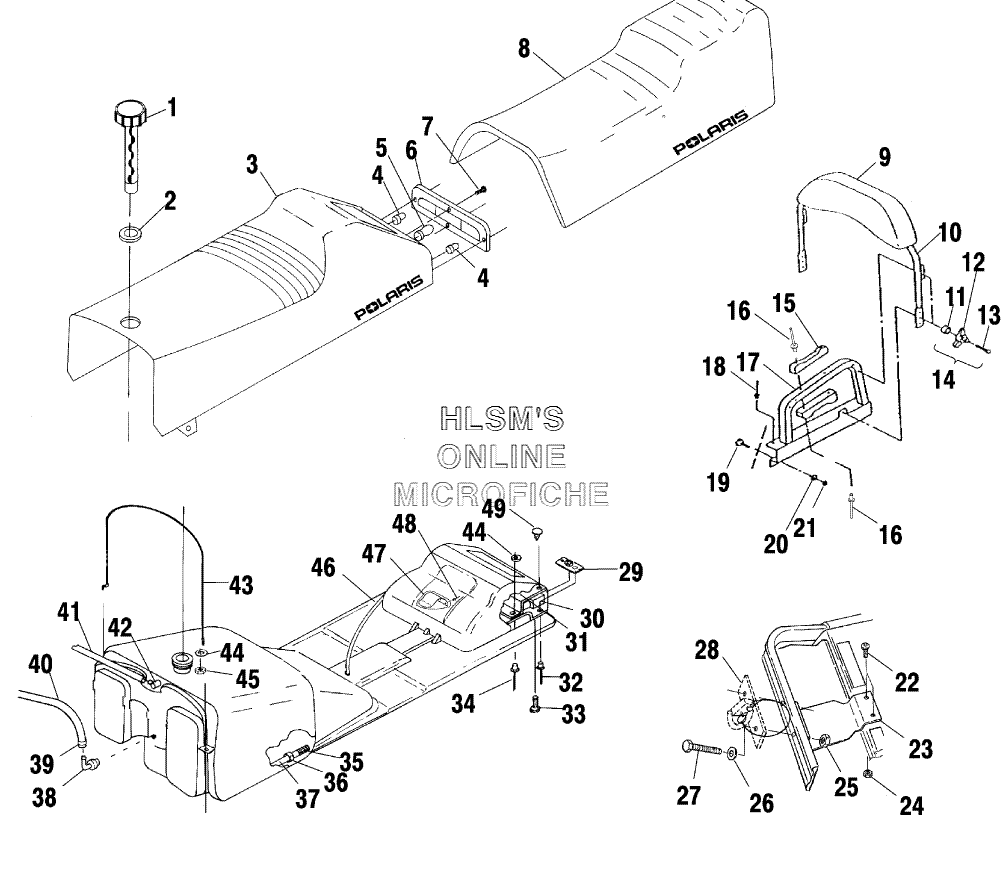

SEAT W/ GAS TANK ASSEMBLY для Polaris 700 SKS (S02SS7CS) - 2002 года выпуска
-
№АртикулНазвание
-
12511248 CAP, GAS W/GAUGECAP, GAS W/GAUGE
-
15810513 GASKET, GAS CAPGASKET, GAS CAP
-
25410842 GROMMET, FUEL TANKGROMMET, FUEL TANK
-
32682727 SEAT, LONG ASSY. (INCL. 4-38, 41-43)SEAT, LONG ASSY. (INCL. 4-38, 41-43)
-
32682745 SEAT COVER ASSY.SEAT COVER ASSY.
-
44030024 BULB, TAILLIGHTBULB, TAILLIGHT
-
54030045 BULB, BRAKELIGHTBULB, BRAKELIGHT
-
65430423 LENS, TAILLIGHTLENS, TAILLIGHT
-
77511840 SCREWSCREW
-
125630386-067 KNOB, BACKRESTKNOB, BACKREST
-
297542147 NUT, RETAINER-WELDNUT, RETAINER-WELD
-
305433341 HOUSING, TAILLIGHTHOUSING, TAILLIGHT
-
315431436 COVER, TAILLIGHT PROTECTORCOVER, TAILLIGHT PROTECTOR
-
327621301 RIVETRIVET
-
337517371 SCREWSCREW
-
347621464 RIVETRIVET
-
357052301 PICK-UP, FUEL W/FILTER (105 MICRN)PICK-UP, FUEL W/FILTER (105 MICRN)
-
367080402 RING, COMPRESSIONRING, COMPRESSION
-
378350019-600 FUEL LINE (ETHER)FUEL LINE (ETHER)
-
387052143 FITTING, OUT (90 DEG. DOUBLE)FITTING, OUT (90 DEG. DOUBLE)
-
397080307 CLAMPCLAMP
-
408350018-600 TUBING, ETHER ERETHNE (160CM SVC)TUBING, ETHER ERETHNE (160CM SVC)
-
418450061-600 FUELLINE (3MMX7MM)FUELLINE (3MMX7MM)
-
427052095 FITTING (90 DEG 1/8'')FITTING (90 DEG 1/8'')
-
437080559 CABLE, TANK RETENTIONCABLE, TANK RETENTION
-
447555746 BURR, RIVETBURR, RIVET
-
457541925 NUTNUT
-
462460398 HARNESS, TAILLIGHTHARNESS, TAILLIGHT
-
475243185 RETAINER CLIP, TOOL POUCHRETAINER CLIP, TOOL POUCH
-
487621472 RIVETRIVET
-
497670097 CLIP, DARTCLIP, DART
