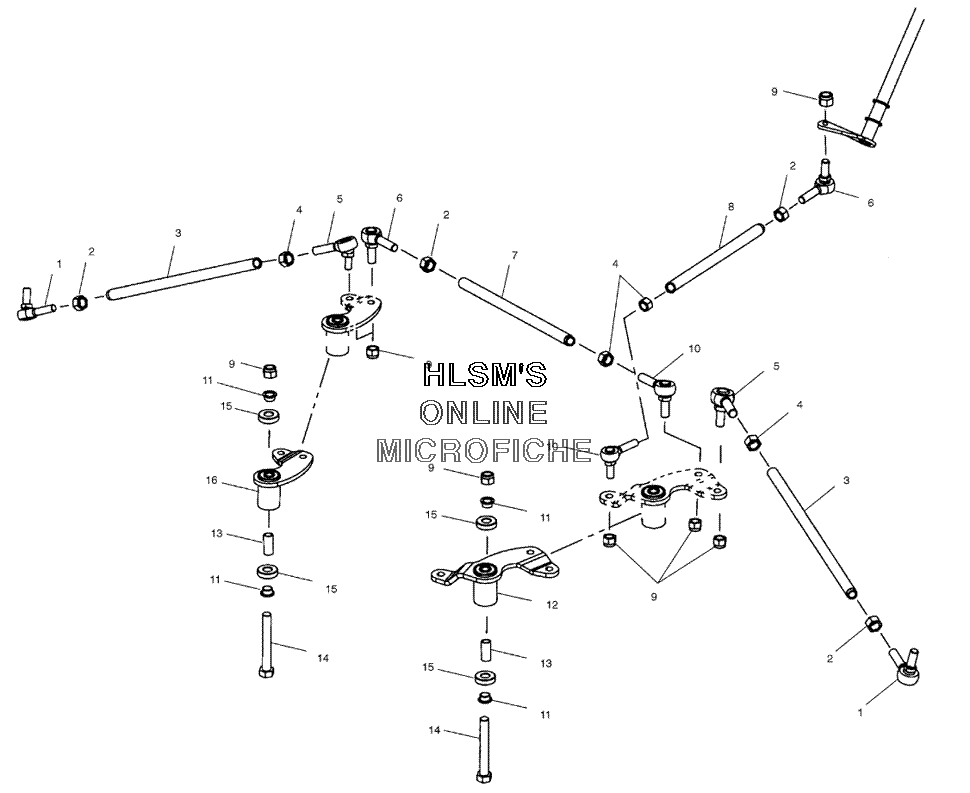

STEERING LINKAGE для Polaris 700 RMK 144 STOCK (S02NK7CSA) - 2002 года выпуска`
-
№АртикулНазвание
-
17061086 ROD-END 3/8, 50Ш, 1.00 (RIGHT)ROD-END 3/8, 50Ш, 1.00 (RIGHT)
-
27542401 NUT, HEX (RIGHT)NUT, HEX (RIGHT)
-
35333937 ROD-TIE RODROD-TIE ROD
-
47542424 NUT (LEFT)NUT (LEFT)
-
57061085 ROD-END 3/8, 50Ш, .750 (LEFT)ROD-END 3/8, 50Ш, .750 (LEFT)
-
67061076 ROD END-3/8 (RIGHT), HI-ANGLE, PRROD END-3/8 (RIGHT), HI-ANGLE, PR
-
75333772 ROD, STEERING RACK, 11.50ROD, STEERING RACK, 11.50
-
85333773-067 ROD, DRAGLINK, 12.50, STEELROD, DRAGLINK, 12.50, STEEL
-
97542439 NUT, NYLOKNUT, NYLOK
-
107061075 ROD END-3/8 (LEFT), HI-ANGLE, PRROD END-3/8 (LEFT), HI-ANGLE, PR
-
115132106 BUSHING-REDUCER, 12MM TO .385BUSHING-REDUCER, 12MM TO .385
-
121820957 PITMAN ARM ASSY. (INCL. 11, 13, 15)PITMAN ARM ASSY. (INCL. 11, 13, 15)
-
135132495 SPACER-TUBE PITMAN/IDLER ARMSSPACER-TUBE PITMAN/IDLER ARMS
-
147512435 SCREWSCREW
-
153514320 BEARING-BALL, 600ILLUBEARING-BALL, 600ILLU
-
161820959 IDLER ARM ASSY. (INCL. 11, 13, 15)IDLER ARM ASSY. (INCL. 11, 13, 15)
