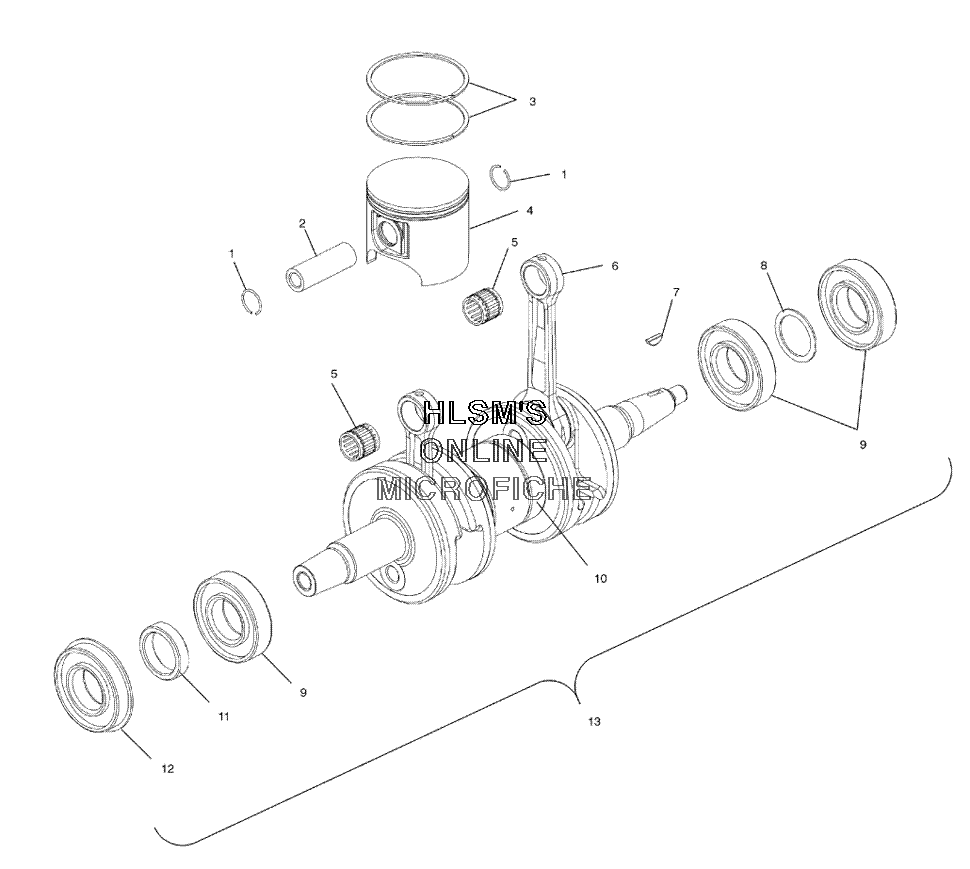

PISTON AND CRANKSHAFT для Polaris 700 RMK 144 STOCK (S02NK7CSA) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    3022950 CIRCLIP, PISTON, 20MM. (2)
    CIRCLIP, PISTON, 20MM. (2)
  • 3
    2200895 PISTON RINGS KIT, 81MM
    PISTON RINGS KIT, 81MM
  • 4
    2201358 PISTON ASSY., 81MM 700 GRAFL (INCL. 1, 2, 3)
    PISTON ASSY., 81MM 700 GRAFL (INCL. 1, 2, 3)
  • 5
    3584001 BEARING
    BEARING
  • 6
    2201953 CONN ROD KIT W/BUR PIN (INCL. ROD, PIN, BEARING, WASHERS)
    CONN ROD KIT W/BUR PIN (INCL. ROD, PIN, BEARING, WASHERS)
  • 7
    7721117 KEY, WOODRUFF
    KEY, WOODRUFF
  • 8
    7555905 BUSHING
    BUSHING
  • 9
    3585503 BEARING, BALL
    BEARING, BALL
  • 10
    3514318 BEARING, BALL
    BEARING, BALL
  • 11
    5131899 SPACER
    SPACER
  • 12
    3514310 BEARING, BALL, EXTRACE
    BEARING, BALL, EXTRACE
  • 13
    2201848 CRANKSHAFT KIT 2@68X136 BUR (INCL. 8-12)
    CRANKSHAFT KIT 2@68X136 BUR (INCL. 8-12)
