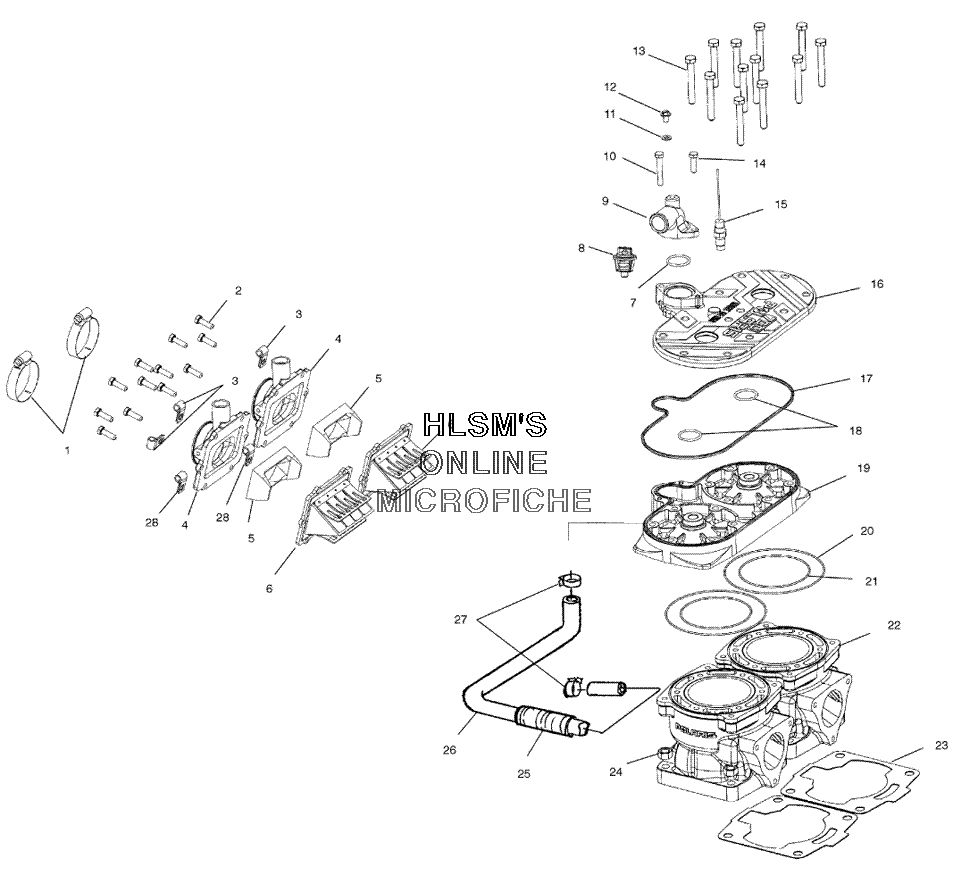

CYLINDER ASSEMBLY для Polaris 700 RMK 144 STOCK (S02NK7CSA) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    7080681 CLAMP, HOSE, SS,
    CLAMP, HOSE, SS,
  • 2
    7517398 SCREW,
    SCREW,
  • 3
    7080683 CLAMP, HOSE
    CLAMP, HOSE
  • 4
    1253327 ADAPTER, CARBURETOR, 40MM
    ADAPTER, CARBURETOR, 40MM
  • 5
    5433151 STUFFER-REED BLOCK, NOK
    STUFFER-REED BLOCK, NOK
  • 6
    1201825 VALVE, REED, ASSY.
    VALVE, REED, ASSY.
  • 7
    5411521 O-RING, LIPSEAL
    O-RING, LIPSEAL
  • 8
    7052258 THERMOSTAT-120ШF W/O BYPASS
    THERMOSTAT-120ШF W/O BYPASS
  • 9
    5630992 COVER-THERMOSTAT M6 BLEED MACH
    COVER-THERMOSTAT M6 BLEED MACH
  • 10
    7516818 SCREW
    SCREW
  • 11
    7555998 WASHER, FLAT
    WASHER, FLAT
  • 12
    7517679 SCREW, M6X1.0 X 13, SL/HX/FL-Z
    SCREW, M6X1.0 X 13, SL/HX/FL-Z
  • 13
    7517534 SCREW, M8X1.25X60
    SCREW, M8X1.25X60
  • 14
    7516822 SCREW
    SCREW
  • 15
    4010251 SENSOR-THERMISTER, ESX8477A
    SENSOR-THERMISTER, ESX8477A
  • 16
    5631201-093 CYLINDER HEAD COVER
    CYLINDER HEAD COVER
  • 17
    5411294 SEAL, RUBBER, HEAD
    SEAL, RUBBER, HEAD
  • 18
    5410917 O-RING
    O-RING
  • 19
    3021210 HEAD-CYL 81MM 3/8 DETON
    HEAD-CYL 81MM 3/8 DETON
  • 20
    5410931 O-RING-4.98X5.129X.07-1.489
    O-RING-4.98X5.129X.07-1.489
  • 21
    5410932 O-RING
    O-RING
  • 22
    3021203 CYLINDER-81MM SNO EV
    CYLINDER-81MM SNO EV
  • 23
    5811538 GASKET, CYL.BASE
    GASKET, CYL.BASE
  • 24
    7547013 NUT
    NUT
  • 25
    5521398-96 CONDUIT, FLEX(.75"ID)
    CONDUIT, FLEX(.75"ID)
  • 26
    5411536 HOSE, BYPASS
    HOSE, BYPASS
  • 27
    7080810 CLAMP-3 TONG .810-.970
    CLAMP-3 TONG .810-.970
  • 28
    7080880 CLAMP-HOSE, .625 DIA VNL COATED
    CLAMP-HOSE, .625 DIA VNL COATED
