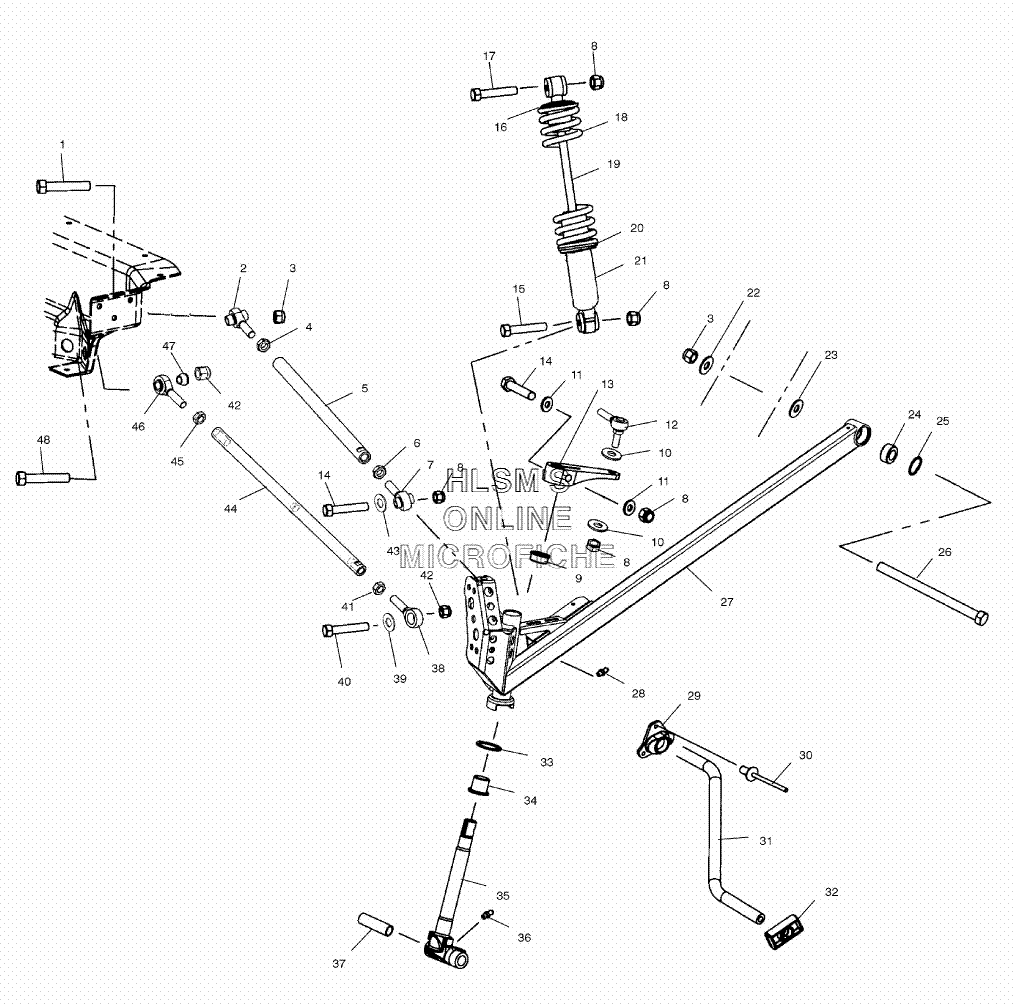

SUSPENSION - FRONT для Polaris 700 RMK 136 (S02NJ7CS) - 2002 года выпуска
-
№АртикулНазвание
-
17517980 BOLTBOLT
-
27061081 ROD END, RADIUS (LEFT)ROD END, RADIUS (LEFT)
-
37547066 NUT, NYLOKNUT, NYLOK
-
47547117 NUTNUT
-
55133543-385 TUBE, RADIUS ROD (UPPER)TUBE, RADIUS ROD (UPPER)
-
67542520 NUT JAMNUT JAM
-
77061061 ROD END, RADIUSROD END, RADIUS
-
87542439 NUT, NYLOKNUT, NYLOK
-
93573909 BUSHING, FLANGEBUSHING, FLANGE
-
107555797 WASHERWASHER
-
117555832 WASHERWASHER
-
127061086 ROD, END (RIGHT)ROD, END (RIGHT)
-
135133060 ARM, STEERING MACHINEDARM, STEERING MACHINED
-
147517583 SCREWSCREW
-
157515433 BOLTBOLT
-
165020618 RETAINER, SPRING SLOTTEDRETAINER, SPRING SLOTTED
-
177515415 BOLTBOLT
-
187041551-067 SPRING, COMPRESSIONSPRING, COMPRESSION
-
197042107 SHOCK, IFSSHOCK, IFS
-
205431734 RING, SPRING PRELOAD ADJ.RING, SPRING PRELOAD ADJ.
-
211500063 RETAINER, SPRING BODYRETAINER, SPRING BODY
-
227555820 WASHERWASHER
-
235132364 CUP, TRAILING ARM MOUNTCUP, TRAILING ARM MOUNT
-
247061042 BEARING, SPHERICALBEARING, SPHERICAL
-
257710437 RING, RETAININGRING, RETAINING
-
267512099 BOLTBOLT
-
271821201-293 TRAILING ARM ASSY. (LEFT/RED) (INCL. 24, 25)TRAILING ARM ASSY. (LEFT/RED) (INCL. 24, 25)
-
271821202-293 TRAILING ARM ASSY. (RIGHT/RED) (INCL. 24, 25)TRAILING ARM ASSY. (RIGHT/RED) (INCL. 24, 25)
-
287080433 ZERK, FITTING THREADEDZERK, FITTING THREADED
-
295433814 BUSHING, TORSION BARBUSHING, TORSION BAR
-
307621452 RIVETRIVET
-
315245217-067 BAR, TORSION (BLACK)BAR, TORSION (BLACK)
-
325433885 SLIDE, TORSION BARSLIDE, TORSION BAR
-
337556509 WASHER SPECIALWASHER SPECIAL
-
343574208 BUSHING, SPINDLE HOUSINGBUSHING, SPINDLE HOUSING
-
356230225-067 SHAFT, SPINDLE W/STEER STOP (BLACK)SHAFT, SPINDLE W/STEER STOP (BLACK)
-
367080306 FITTING, LUBE W/BALL CHECKFITTING, LUBE W/BALL CHECK
-
375010158 BUSHING, PIVOTBUSHING, PIVOT
-
387061052 ROD END, RADIUS (RIGHT/LOWER)ROD END, RADIUS (RIGHT/LOWER)
-
397556213 WASHERWASHER
-
407517906 BOLTBOLT
-
417542711 NUT, JAMNUT, JAM
-
427547065 NUT, NYLOKNUT, NYLOK
-
437556153 WASHERWASHER
-
445132953 TUBE, RADIUS ROD (LOWER)TUBE, RADIUS ROD (LOWER)
-
457547028 NUT, JAM (LEFT)NUT, JAM (LEFT)
-
467061087 ROD END, RADIUS (LEFT/LOWER)ROD END, RADIUS (LEFT/LOWER)
-
475132454 BUSHING, SPACERBUSHING, SPACER
-
487517981 BOLTBOLT
