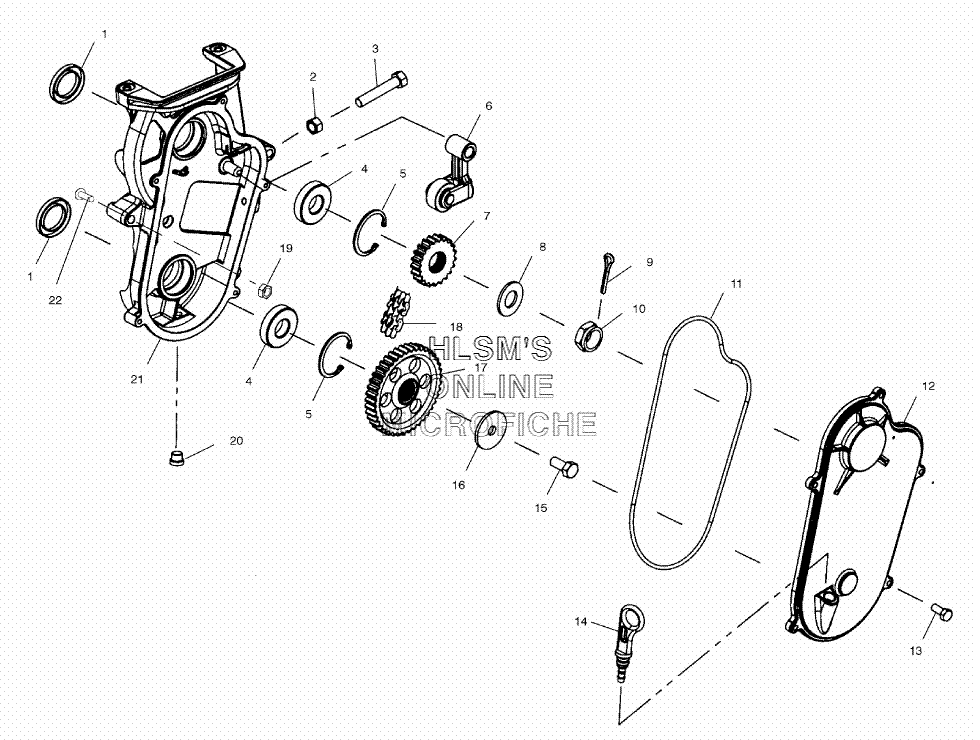

CHAINCASE ASSEMBLY для Polaris 700 RMK 136 (S02NJ7CS) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    3610030 SEAL, OIL
    SEAL, OIL
  • 2
    5132237 NUT, CHAIN ADJUSTER
    NUT, CHAIN ADJUSTER
  • 3
    7512470 SCREW
    SCREW
  • 4
    3514309 BEARING, BALL
    BEARING, BALL
  • 5
    7718406 RING, RETAINING
    RING, RETAINING
  • 6
    1332213 TIGHTENER, CHAINCASE
    TIGHTENER, CHAINCASE
  • 6
    3553002 BEARING
    BEARING
  • 6
    5630123 WHEEL, C/C IDLER
    WHEEL, C/C IDLER
  • 6
    7558702 WASHER, THRUST
    WASHER, THRUST
  • 6
    7662210 PIN, CHAIN TIGHTENER
    PIN, CHAIN TIGHTENER
  • 7
    3221097 SPROCKET SPLINE (21 TEETH, 3/4W)
    SPROCKET SPLINE (21 TEETH, 3/4W)
  • 8
    7571620 WASHER, SLOTTED
    WASHER, SLOTTED
  • 9
    7661401 COTTER, PIN
    COTTER, PIN
  • 10
    7542811 NUT
    NUT
  • 11
    5411497 GASKET, O-RING CHAINCASE
    GASKET, O-RING CHAINCASE
  • 12
    5132368 COVER, CHNCASE
    COVER, CHNCASE
  • 13
    7512242 SCREW
    SCREW
  • 14
    1332250 DIPSTICK ASSY., W/MAGNET
    DIPSTICK ASSY., W/MAGNET
  • 15
    7515350 SCREW
    SCREW
  • 16
    7571618 WASHER
    WASHER
  • 17
    3222101 SPROCKET SPLINE, (41 TEETH)
    SPROCKET SPLINE, (41 TEETH)
  • 18
    3221109 CHAIN (74P, 3/4W)
    CHAIN (74P, 3/4W)
  • 19
    7542451 NUT, NYLOC
    NUT, NYLOC
  • 20
    7052115 PLUG
    PLUG
  • 21
    5132773 CHAINCASE
    CHAINCASE
  • 22
    7515477 BOLT
    BOLT
