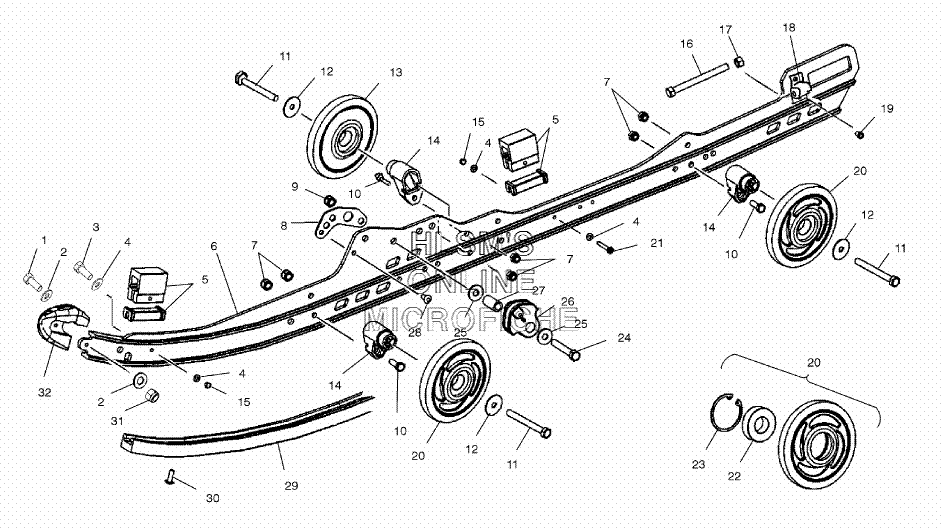

RAIL ASSEMBLY W/ IDLER WHEELS для Polaris 700 RMK 136 (S02NJ7CS) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    7512007 SCREW
    SCREW
  • 2
    7555792 WASHER
    WASHER
  • 3
    7510504 SCREW
    SCREW
  • 4
    7555783 WASHER
    WASHER
  • 5
    5521498 BUMPER, JOUNCE REAR
    BUMPER, JOUNCE REAR
  • 5
    5432946 LINER, BUMPER
    LINER, BUMPER
  • 6
    1541668 RAIL ASSY. 136 (LEFT) (INCL. 1, 2, 3, 4, 5, 6, 18, 19, 31, 32)
    RAIL ASSY. 136 (LEFT) (INCL. 1, 2, 3, 4, 5, 6, 18, 19, 31, 32)
  • 6
    1541669 RAIL ASSY. 136 (RIGHT) (INCL. 1, 2, 3, 4, 5, 6, 18, 19, 31, 32)
    RAIL ASSY. 136 (RIGHT) (INCL. 1, 2, 3, 4, 5, 6, 18, 19, 31, 32)
  • 7
    7542324 NUT
    NUT
  • 8
    5245411 BRACKET, RAIL REINF
    BRACKET, RAIL REINF
  • 9
    7542439 NUT, NYLOK
    NUT, NYLOK
  • 10
    7515317 BOLT
    BOLT
  • 11
    7515346 BOLT
    BOLT
  • 12
    7556179 WASHER, SPRING
    WASHER, SPRING
  • 13
    1590317 WHEEL ASSY., BOGIE
    WHEEL ASSY., BOGIE
  • 14
    5631065 BLOCK, WHEEL MOUNT
    BLOCK, WHEEL MOUNT
  • 15
    7541925 NUT
    NUT
  • 16
    7517227 SCREW
    SCREW
  • 17
    7542404 NUT
    NUT
  • 18
    5130530 BLOCK, IDLER BOLT ADJ.
    BLOCK, IDLER BOLT ADJ.
  • 19
    7621501 RIVET
    RIVET
  • 20
    1590318-293 WHEEL ASSY. (RED) (INCL. 22, 23)
    WHEEL ASSY. (RED) (INCL. 22, 23)
  • 21
    7510504 SCREW
    SCREW
  • 22
    3514303 BEARING (1 PER WHEEL)
    BEARING (1 PER WHEEL)
  • 23
    7718407 RING, RETAINING (1 PER WHEEL)
    RING, RETAINING (1 PER WHEEL)
  • 24
    7515438 BOLT
    BOLT
  • 25
    7555893 WASHER, FLAT
    WASHER, FLAT
  • 26
    5434334 GUIDE, SPRING SQUARE
    GUIDE, SPRING SQUARE
  • 26
    7661123 PIN, CLEVIS
    PIN, CLEVIS
  • 26
    7661644 PIN, HITCH
    PIN, HITCH
  • 27
    5333948 SPACER
    SPACER
  • 28
    7661845 RIVET
    RIVET
  • 29
    5521580-309 HI, FAX
    HI, FAX
  • 30
    7515199 SCREW
    SCREW
  • 31
    7541925 NUT
    NUT
  • 32
    5434355 CAP, RAIL TIP
    CAP, RAIL TIP
