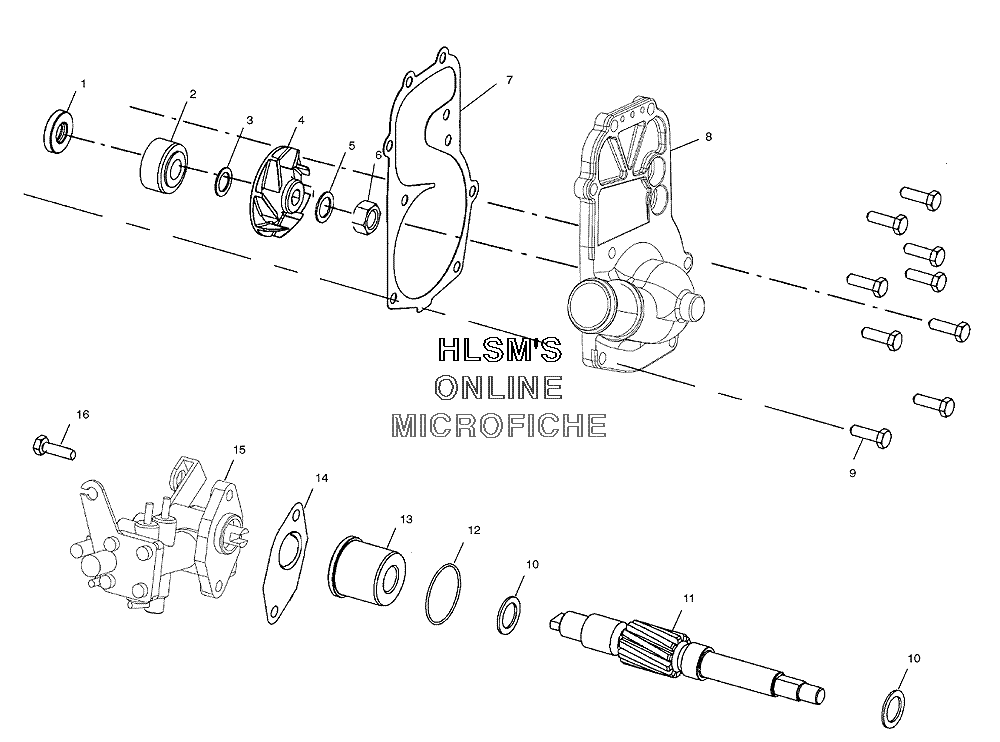

WATER PUMP/OIL PUMP для Polaris 600 XC SP M-10 F/O (S02NE6ES) - 2002 года выпуска
-
№АртикулНазвание
-
15411197 SEAL, TYPE S ARSSEAL, TYPE S ARS
-
23610067 SEALSEAL
-
37556006 WASHER FLATWASHER FLAT
-
45432330 IMPELLERIMPELLER
-
57555874 WASHER FLATWASHER FLAT
-
67546804 NUT, HEXAGON NYLOKNUT, HEXAGON NYLOK
-
75811601 GASKET, WATER PUMP COVERGASKET, WATER PUMP COVER
-
85630920 COVER WATER PUMP, HI FLOWCOVER WATER PUMP, HI FLOW
-
97516822 SCREWSCREW
-
107555977 WASHER THRUSTWASHER THRUST
-
115131855 DRIVESHAFT, WATER/OIL PUMPDRIVESHAFT, WATER/OIL PUMP
-
125411196 O-RINGO-RING
-
135010391 BEARING, PUMP SHAFT FLANGEDBEARING, PUMP SHAFT FLANGED
-
145811789 GASKETGASKET
-
152540097 OIL PUMP ASSYOIL PUMP ASSY
-
167517277 SCREWSCREW
