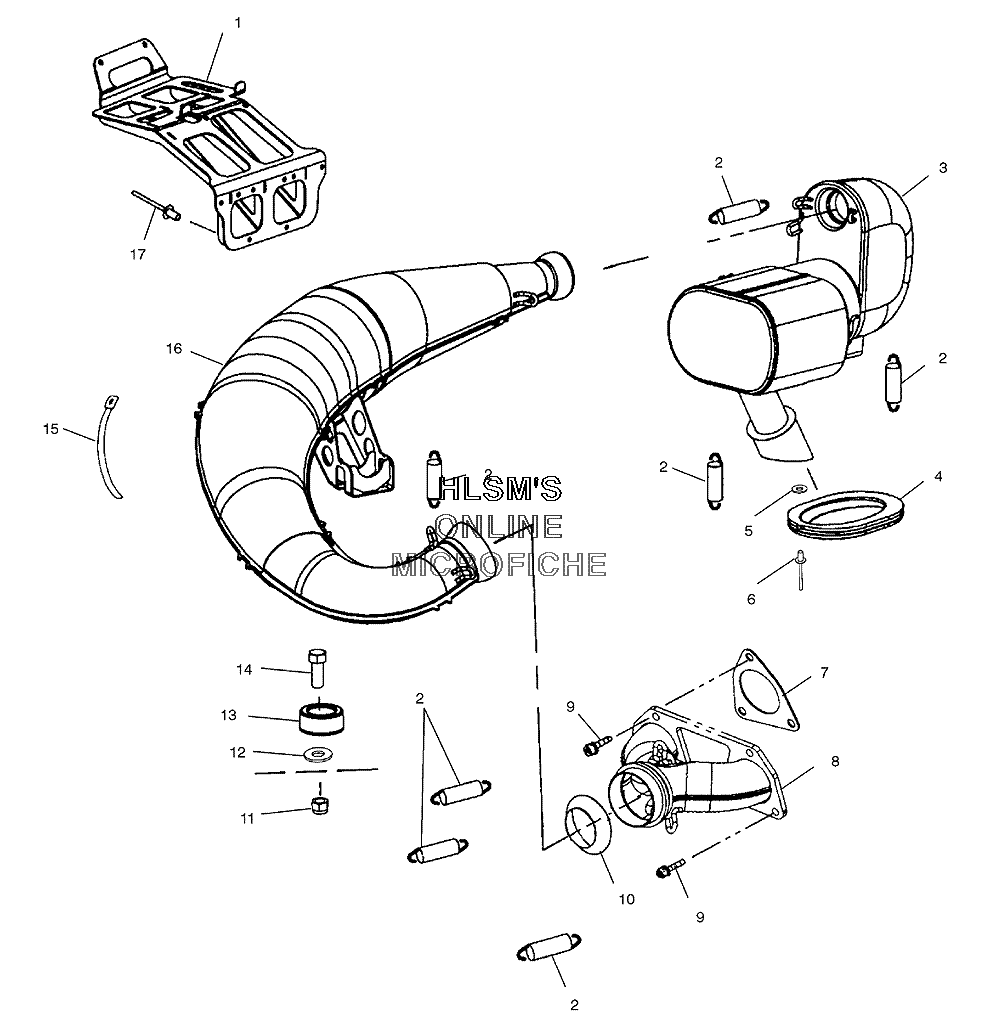

EXHAUST SYSTEM для Polaris 600 XC SP M-10 F/O (S02NE6ES) - 2002 года выпуска
-
№АртикулНазвание
-
11261008-029 WELD BRACKET CHASSIS/RESONATORWELD BRACKET CHASSIS/RESONATOR
-
27041687 SPRINGSPRING
-
31261130-029 WELD RESONATOR (BLACK)WELD RESONATOR (BLACK)
-
45411684 BOOT, EXHAUST OUTLETBOOT, EXHAUST OUTLET
-
57555904 WASHERWASHER
-
67621467 RIVET BLINDRIVET BLIND
-
75811838 GASKET EXHAUSTGASKET EXHAUST
-
81261046-029 MANIFOLD (BLACK)MANIFOLD (BLACK)
-
97517322 SCREWSCREW
-
103610046 SEAL, EXHAUST SOCKETSEAL, EXHAUST SOCKET
-
117547180 NUT FLANGED, 3/8-16 NYLON-ZNUT FLANGED, 3/8-16 NYLON-Z
-
127555815 WASHER FLATWASHER FLAT
-
135433576 DAMPENER-VIBRATIONSDAMPENER-VIBRATIONS
-
147517935 SCREW HEXAGON SOCKET CS ZY3SCREW HEXAGON SOCKET CS ZY3
-
157080812 CLAMP, WORM DRIVE (.44 X 3.75)CLAMP, WORM DRIVE (.44 X 3.75)
-
157080813 CLAMP WORM DRIVE (.44 X 4.25)CLAMP WORM DRIVE (.44 X 4.25)
-
157080811 CLAMP WORM DRIVE DIA (.44 X 6.50)CLAMP WORM DRIVE DIA (.44 X 6.50)
-
161261007 TUNED PIPE, ASSYTUNED PIPE, ASSY
-
161261048-029 TUNED PIPE, WELD (BLACK)TUNED PIPE, WELD (BLACK)
-
165244398 COVER, TUNED PIPE (TOP)COVER, TUNED PIPE (TOP)
-
165244399 COVER, TUNED PIPE (BOTTOM)COVER, TUNED PIPE (BOTTOM)
-
165830198 MATTE, SOUNDMATTE, SOUND
-
165830207 MATTE, SOUND TOPMATTE, SOUND TOP
-
177661637 RIVET INTERLOCK, ZRIVET INTERLOCK, Z
