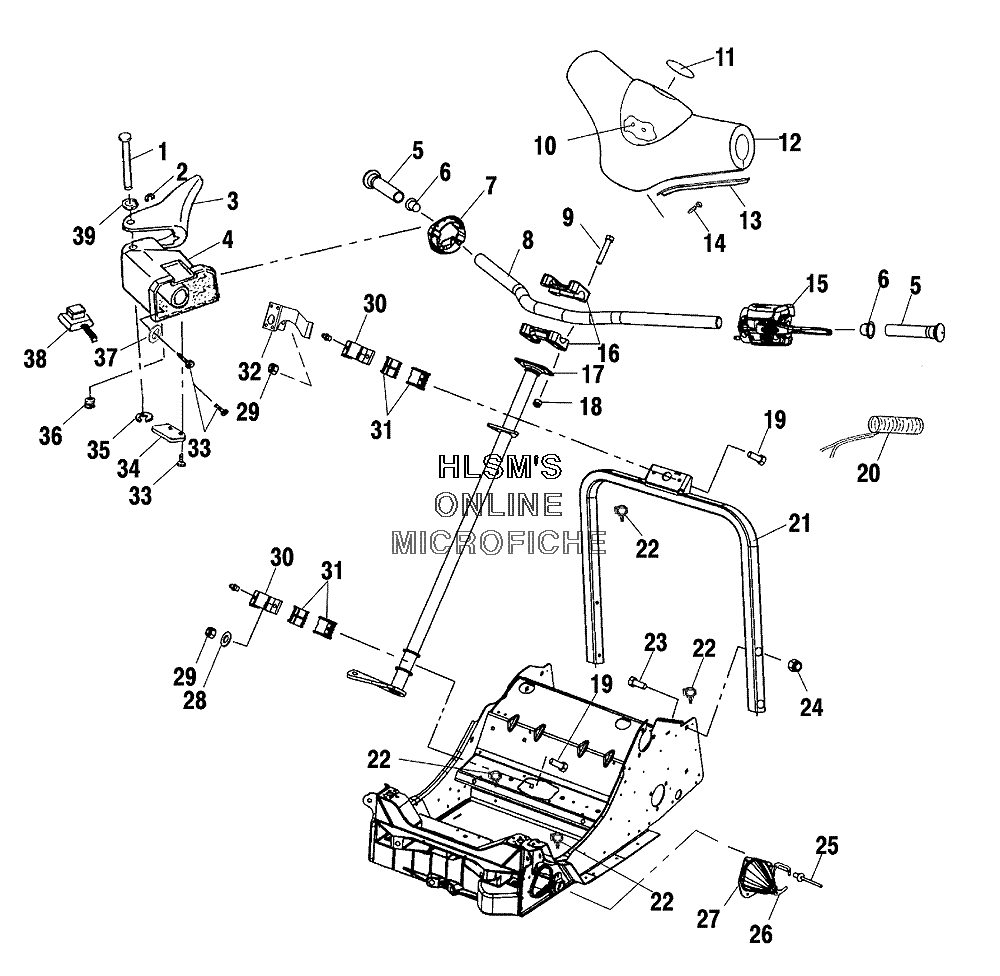

HANDLEBAR ASSEMBLY для Polaris 600 XC SP M-10 F/O (S02NE6ES) - 2002 года выпуска
-
№АртикулНазвание
-
17661624 PIN RETAININGPIN RETAINING
-
27710503 RING RETAININGRING RETAINING
-
35432970 THROTTLE, LEVER (35.5MM)THROTTLE, LEVER (35.5MM)
-
32010171 ASSY LEVER HEATER HI/LO 35.5MMASSY LEVER HEATER HI/LO 35.5MM
-
45431592 BLOCK, THROTTLE/BRAKEBLOCK, THROTTLE/BRAKE
-
55432634 GRIP, HANDLEBARGRIP, HANDLEBAR
-
65431096 PLUGPLUG
-
75433345 ADAPTER-BLOCK, THROTTLEADAPTER-BLOCK, THROTTLE
-
85243355-067 HANDLEBAR (BLACK)HANDLEBAR (BLACK)
-
97517238 SCREWSCREW
-
107670106 NUT PUSH ON, .170-.180-YNUT PUSH ON, .170-.180-Y
-
115434179 EMBLEM "STAR" PALM BEZEL, HANDLEBAREMBLEM "STAR" PALM BEZEL, HANDLEBAR
-
125433159-070 COVER HANDLEBAR (BLACK)COVER HANDLEBAR (BLACK)
-
135433160-070 SLIDE HANDLEBAR COVER (BLACK)SLIDE HANDLEBAR COVER (BLACK)
-
144010287 CLIP, DART NYLON (BLACK)CLIP, DART NYLON (BLACK)
-
165630187-067 BLOCK, HANDLEBAR (BLACK)BLOCK, HANDLEBAR (BLACK)
-
171820965-067 WELD POST, STEERING (BLACK)WELD POST, STEERING (BLACK)
-
187542122 NUT NYLOKNUT NYLOK
-
197517579 BOLT CARR 5/16-X1"GR5 Y LOBOLT CARR 5/16-X1"GR5 Y LO
-
202460677 HEATER, GRIP, LO/MED/HIHEATER, GRIP, LO/MED/HI
-
211013602-067 WELD STEERING HOOP, REV (BLACK) (EDGE)WELD STEERING HOOP, REV (BLACK) (EDGE)
-
211013262-067 STEERING HOOP (BLACK) (M-10)STEERING HOOP (BLACK) (M-10)
-
224020139 CLIP (ROSEBUD)CLIP (ROSEBUD)
-
237512377 BOTL CARRIAGEBOTL CARRIAGE
-
247542343 NUT, FLANGENUT, FLANGE
-
257621433 RIVETRIVET
-
265244470 PLATE, TIE ROD BOOTPLATE, TIE ROD BOOT
-
275433532 BOOT, TIE ROD (LEFT)BOOT, TIE ROD (LEFT)
-
275433533 BOOT, TIE ROD (RIGHT)BOOT, TIE ROD (RIGHT)
-
287558402 WASHER FLATWASHER FLAT
-
297542324 NUT, NYLOKNUT, NYLOK
-
305131841 BRACKET STEERING POST MODULEBRACKET STEERING POST MODULE
-
307080510 FITTING, ZERK (90 DEG)FITTING, ZERK (90 DEG)
-
315432785 BUSHINGBUSHING
-
325244829 BRACKET CONSOLE SUPPORTBRACKET CONSOLE SUPPORT
-
337511848 SCREWSCREW
-
345432261 HOLDER WIREHOLDER WIRE
-
357710401 RING RETAININGRING RETAINING
-
367512465 SCREW SETSCREW SET
-
377555727 WASHERWASHER
-
384110106 SWITCH, AUXILIARY SHUT-OFFSWITCH, AUXILIARY SHUT-OFF
-
397555730 WASHERWASHER
