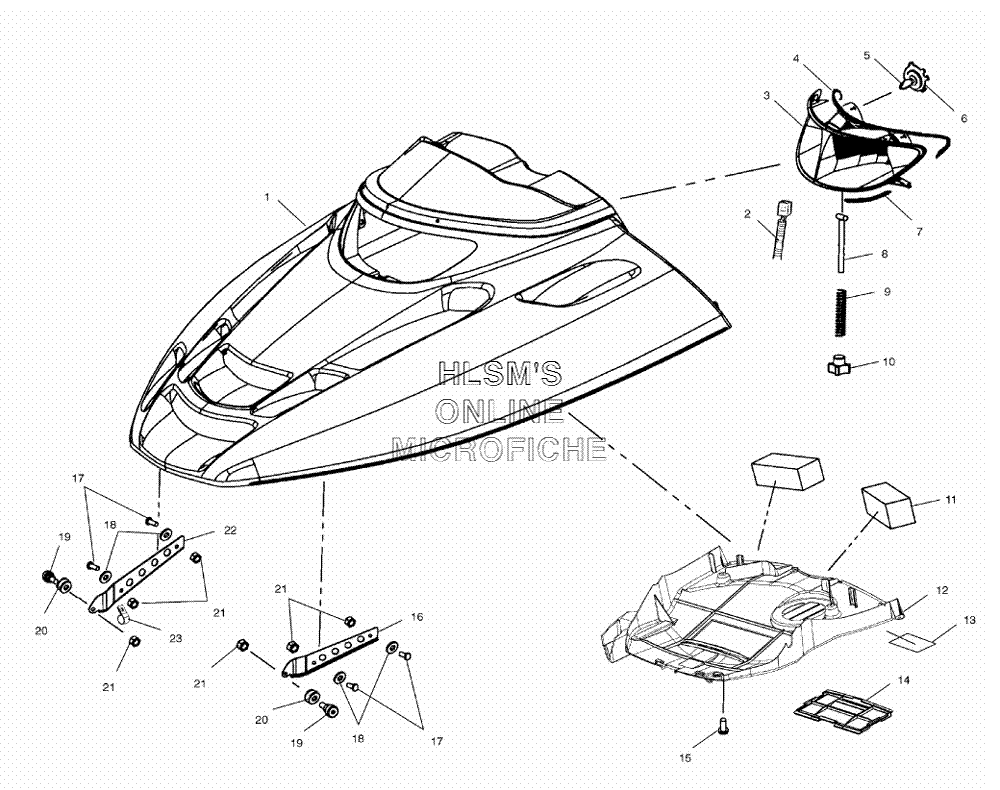

HOOD ASSEMBLY W/ HEADLIGHT для Polaris 500 INDY (S02NB4BS) - 2002 года выпуска
-
№АртикулНазвание
-
12632473-177 HOOD ASSY., EDGE (2H, FUJI, PROD) (BLK) (INCL. FOAM AND FOIL)HOOD ASSY., EDGE (2H, FUJI, PROD) (BLK) (INCL. FOAM AND FOIL)
-
22460791 HARNESS, HEADLIGHT EDGE, COMMONHARNESS, HEADLIGHT EDGE, COMMON
-
32410132 HEADLAMP ASSY., 2 BULB EDGE (INCL. BULBS)HEADLAMP ASSY., 2 BULB EDGE (INCL. BULBS)
-
45812175 FOAM HEADLIGHT SEAL EDGE (TOP)FOAM HEADLIGHT SEAL EDGE (TOP)
-
52870448 BULB, QUARTZ HEADLIGHTBULB, QUARTZ HEADLIGHT
-
64032063 RETAINER, HEADLIGHT BULBRETAINER, HEADLIGHT BULB
-
75812174 FOAM HEADLIGHT SEAL EDGE (BOTTOM)FOAM HEADLIGHT SEAL EDGE (BOTTOM)
-
87517872 BOLT TEE ADJUSTER (2.25)BOLT TEE ADJUSTER (2.25)
-
97041954 SPRING HEADLIGHT ADJUSTSPRING HEADLIGHT ADJUST
-
107080887 KNOB, HEADLIGHT ADJUST, LOCKINGKNOB, HEADLIGHT ADJUST, LOCKING
-
115811793 FOAM, PREFILTERFOAM, PREFILTER
-
122632491 PLENUM ASSY., FOILPLENUM ASSY., FOIL
-
125812324 FOIL PLENUM, EDGEFOIL PLENUM, EDGE
-
125811948 FOIL (4.5X1.0)FOIL (4.5X1.0)
-
137079197 DECAL SUSP.SET, EDGE (UPPER)DECAL SUSP.SET, EDGE (UPPER)
-
145433660 COVER, HEADLIGHT ACCESSCOVER, HEADLIGHT ACCESS
-
157512068 SCREWSCREW
-
165243567-067 HINGE (UPPER/LEFT/BLK)HINGE (UPPER/LEFT/BLK)
-
177512240 BOLTBOLT
-
187558301 WASHERWASHER
-
197512113 SCREWSCREW
-
205332403 SPACER, HINGESPACER, HINGE
-
217542122 NUT LOCKNUT LOCK
-
225243568-067 HINGE (UPPER/RIGHT/BLK)HINGE (UPPER/RIGHT/BLK)
-
237080683 CLAMP, HOSECLAMP, HOSE
