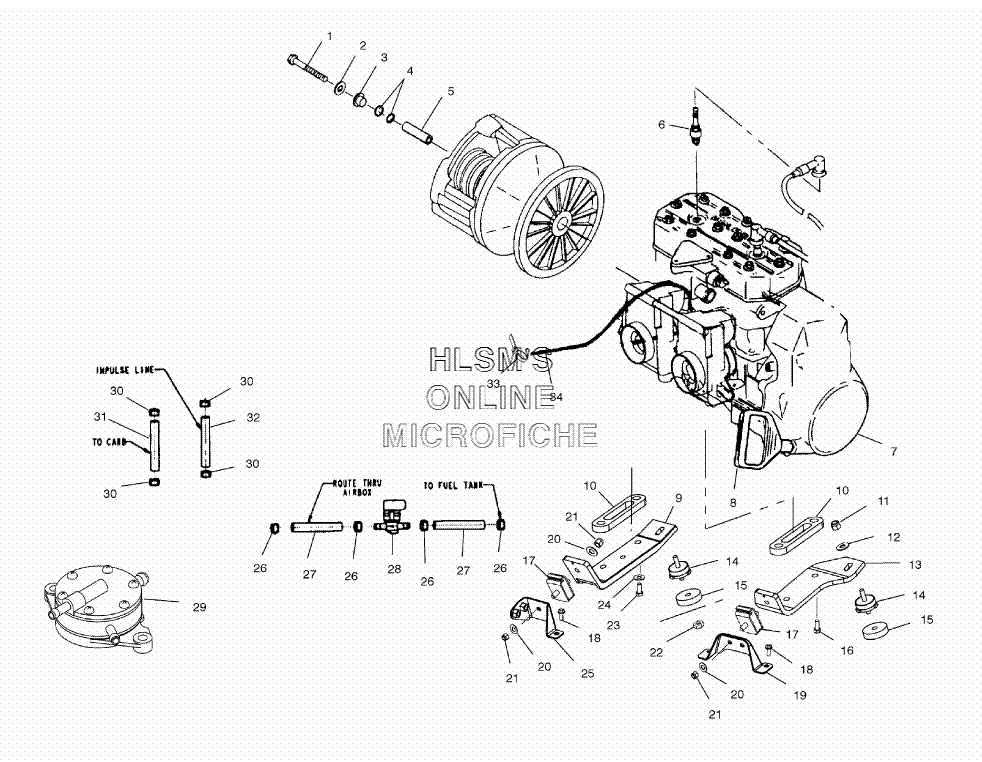

ENGINE MOUNTING W/ SHORT BLOCK для Polaris 500 INDY (S02NB4BS) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    7512565 BOLT
    BOLT
  • 2
    7575202 WASHER LOCK
    WASHER LOCK
  • 3
    5010278 WASHER, CLUTCH RETAINER
    WASHER, CLUTCH RETAINER
  • 4
    5410507 O-RING
    O-RING
  • 5
    5020513 SPACER, CLUTCH BOLT
    SPACER, CLUTCH BOLT
  • 6
    3070166 SPARKPLUG (RN3C)
    SPARKPLUG (RN3C)
  • 7
    3086877 ENGINE (SHORT BLOCK) (SEE FOOT NOTE)
    ENGINE (SHORT BLOCK) (SEE FOOT NOTE)
  • 8
    5431499-070 HANDLE RECOIL (BLK)
    HANDLE RECOIL (BLK)
  • 9
    5245473 STRAP ENGINE MOUNT (500) (LEFT)
    STRAP ENGINE MOUNT (500) (LEFT)
  • 10
    5245021 SPACER ENGINE (500 FUJI) (.38)
    SPACER ENGINE (500 FUJI) (.38)
  • 11
    7542451 NUT, NYLOCK
    NUT, NYLOCK
  • 12
    7555893 WASHER
    WASHER
  • 13
    5245019 STRAP ENGINE MOUNT (RIGHT) (500 FUJI)
    STRAP ENGINE MOUNT (RIGHT) (500 FUJI)
  • 14
    3021220 MOUNT ENGINE (3/8 16)
    MOUNT ENGINE (3/8 16)
  • 15
    5245117 SPACER ENGINE MOUNT (.44)
    SPACER ENGINE MOUNT (.44)
  • 16
    7517399 SCREW
    SCREW
  • 17
    3021206 MOUNT ENGINE (3/8 16)
    MOUNT ENGINE (3/8 16)
  • 18
    7517854 SCREW
    SCREW
  • 19
    5245044 BRACKET ENGINE MOUNT, FORMED (RIGHT)
    BRACKET ENGINE MOUNT, FORMED (RIGHT)
  • 20
    7555806 WASHER
    WASHER
  • 21
    7547008 NUT, FLEX LOCK
    NUT, FLEX LOCK
  • 22
    7547180 NUT, FLANGED (3/8 16 NYLON Z)
    NUT, FLANGED (3/8 16 NYLON Z)
  • 23
    7517442 BOLT
    BOLT
  • 24
    7553101 WASHER LOCK
    WASHER LOCK
  • 25
    1013397 WELD ENGINE MOUNT BRACKET (LEFT)
    WELD ENGINE MOUNT BRACKET (LEFT)
  • 26
    7080307 CLAMP
    CLAMP
  • 27
    8350018-600 TUBING, ETHER ERETHNE (160CM)
    TUBING, ETHER ERETHNE (160CM)
  • 28
    7052249 VALVE FUEL, PLASTIC (90 DEG) (1/4 HOSE)
    VALVE FUEL, PLASTIC (90 DEG) (1/4 HOSE)
  • 29
    3087012 FUEL PUMP ASSY.
    FUEL PUMP ASSY.
  • 30
    7080003 CLAMP, HOSE
    CLAMP, HOSE
  • 31
    8350017-600 FUEL LINE, ETHER (5/16'') (RED)
    FUEL LINE, ETHER (5/16'') (RED)
  • 32
    8450040-600 FUEL LINE (1/4 ID 600 CM.)
    FUEL LINE (1/4 ID 600 CM.)
  • 33
    7080138 CABLE TIE
    CABLE TIE
  • 34
    7080770 CABLE, THROTTLE, SINGLE, RACK CARB.
    CABLE, THROTTLE, SINGLE, RACK CARB.
