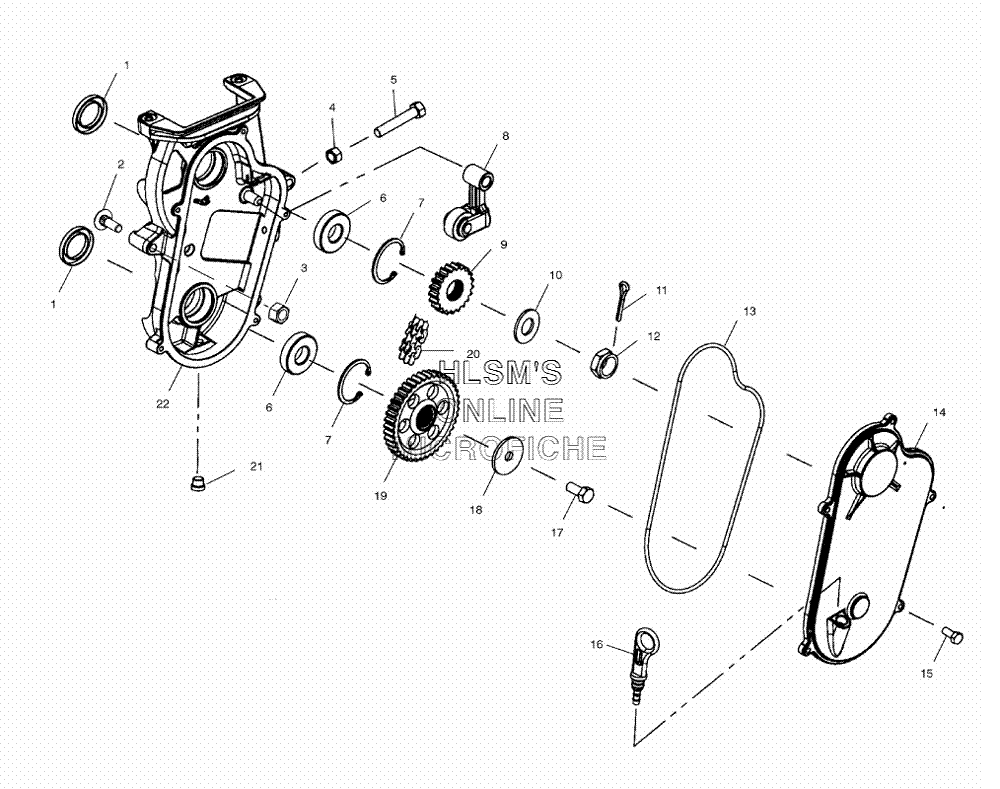

CHAINCASE ASSEMBLY для Polaris 500 INDY (S02NB4BS) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    3610030 SEAL, OIL
    SEAL, OIL
  • 2
    7515477 BOLT
    BOLT
  • 3
    7542451 NUT, NYLOCK
    NUT, NYLOCK
  • 4
    5132237 NUT CHAIN ADJUSTER (3/8 16)
    NUT CHAIN ADJUSTER (3/8 16)
  • 5
    7512470 SCREW
    SCREW
  • 6
    3514309 BEARING, BALL
    BEARING, BALL
  • 7
    7718406 RING, RETAINING
    RING, RETAINING
  • 8
    1332213 TIGHTENER, CHAINCASE
    TIGHTENER, CHAINCASE
  • 8
    3553002 BEARING
    BEARING
  • 8
    5630123 WHEEL, C/C IDLER
    WHEEL, C/C IDLER
  • 8
    7558702 WASHER THRUST
    WASHER THRUST
  • 8
    7662210 PIN, CHAIN TIGHTENER
    PIN, CHAIN TIGHTENER
  • 9
    3221097 SPROCKET, HV, PM (21 TEETH) (3/4W) (15 SPL)
    SPROCKET, HV, PM (21 TEETH) (3/4W) (15 SPL)
  • 10
    7571620 WASHER, SLOTTED
    WASHER, SLOTTED
  • 11
    7661401 COTTER PIN
    COTTER PIN
  • 12
    7542811 NUT
    NUT
  • 13
    5411497 GASKET, O-RING CHAINCASE
    GASKET, O-RING CHAINCASE
  • 14
    5132368 COVER, CHAINCASE, ALUMINUM (7.92 CD)
    COVER, CHAINCASE, ALUMINUM (7.92 CD)
  • 15
    7512242 SCREW
    SCREW
  • 16
    1332250 DIPSTICK ASSY. W/MAGNET, EDGE
    DIPSTICK ASSY. W/MAGNET, EDGE
  • 17
    7517979 SCREW
    SCREW
  • 18
    7571618 WASHER
    WASHER
  • 19
    3222099 SPROCKET, HYVO, PM (40 TEETH) (15T SPL)
    SPROCKET, HYVO, PM (40 TEETH) (15T SPL)
  • 20
    3221109 CHAIN, HYVO (74P) (3/4W)
    CHAIN, HYVO (74P) (3/4W)
  • 21
    7052115 PLUG
    PLUG
  • 22
    5132773 CHAINCASE, ALUMINUM (7.92 CD)
    CHAINCASE, ALUMINUM (7.92 CD)
