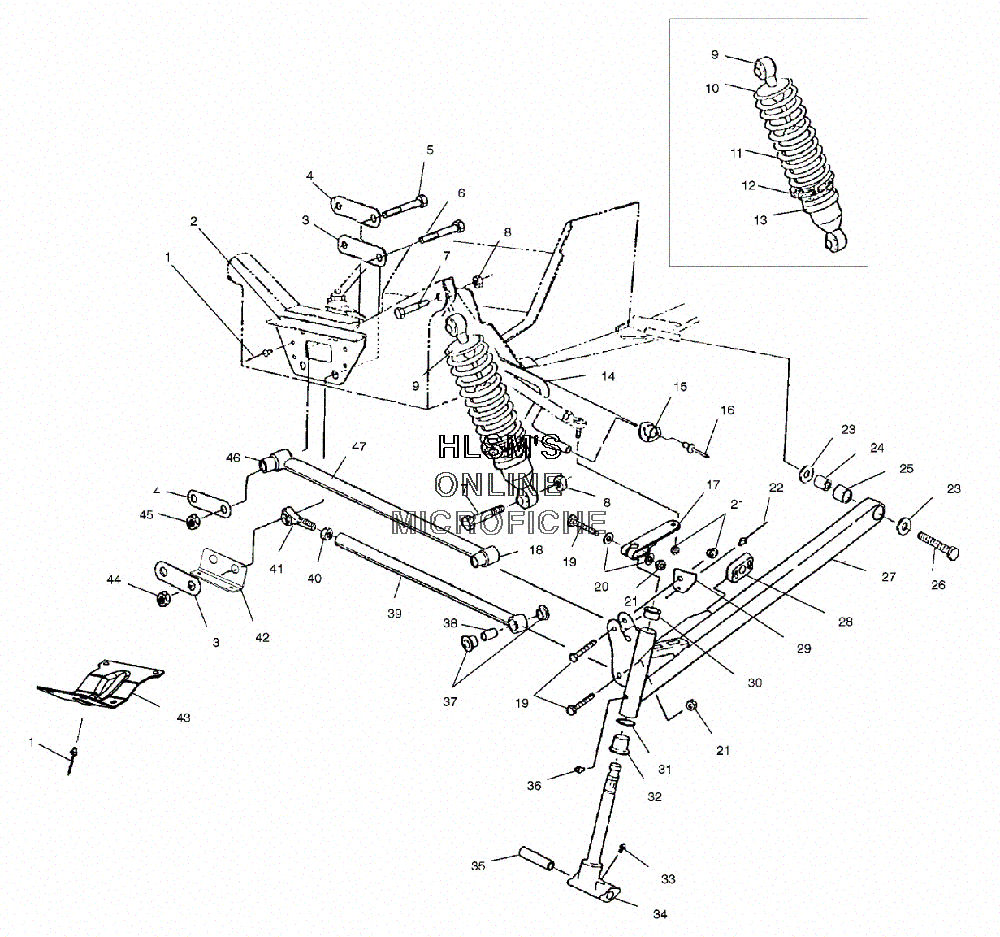

SUSPENSION - FRONT для Polaris 500 CLASSIC TOURING (S02ST4BS) - 2002 года выпуска`
-
№АртикулНазвание
-
17661637 RIVET, INTERLOCKRIVET, INTERLOCK
-
25242117 BRACE, BULKHEAD (FRONT)BRACE, BULKHEAD (FRONT)
-
35211345 STRAP, SPACER (BOTTOM)STRAP, SPACER (BOTTOM)
-
45211344 STRAP, SPACER (TOP)STRAP, SPACER (TOP)
-
57512582 BOLTBOLT
-
67512684 BOLTBOLT
-
77515415 BOLTBOLT
-
87542439 NUT, NYLOKNUT, NYLOK
-
97041503 SHOCK, GAS IFS SELECTSHOCK, GAS IFS SELECT
-
105630580 RETAINER, SPRING SLOTTEDRETAINER, SPRING SLOTTED
-
117041551-067 SPRING, COMPRESSIONSPRING, COMPRESSION
-
125431734 RING, SPRING PRELOAD ADJUSTRING, SPRING PRELOAD ADJUST
-
131500063 RETAINER, SPRING BODY THREADEDRETAINER, SPRING BODY THREADED
-
145224748-067 BAR, SWAY (BLACK)BAR, SWAY (BLACK)
-
155432038 BUSHING, SWAY BARBUSHING, SWAY BAR
-
167621477 RIVETRIVET
-
175241560-244 ARM, STEERINGARM, STEERING
-
185411099 BUSHING, RADIUS ROD PIVOT (3/8)BUSHING, RADIUS ROD PIVOT (3/8)
-
197517583 SCREWSCREW
-
207555832 WASHERWASHER
-
217542403 NUT LOCKNUT LOCK
-
227661130 RIVETRIVET
-
237555721 WASHERWASHER
-
245010310 TUBE, BUSHINGTUBE, BUSHING
-
255410872 PIVOT, TRAILLING ARMPIVOT, TRAILLING ARM
-
267512557 BOLTBOLT
-
271821081 TRAILING ARM ASSY (LEFT/SILVER) (INCL. 24, 25)TRAILING ARM ASSY (LEFT/SILVER) (INCL. 24, 25)
-
271821082 TRAILING ARM ASSY (RIGHT/SILVER) (INCL. 24, 25)TRAILING ARM ASSY (RIGHT/SILVER) (INCL. 24, 25)
-
285432561 SLIDE, SWAYBAR (5/8)SLIDE, SWAYBAR (5/8)
-
295241569-244 STOP, STEERING (LEFT)STOP, STEERING (LEFT)
-
295241570-244 STOP, STEERING (RIGHT)STOP, STEERING (RIGHT)
-
303573909 BUSHING, FLANGEBUSHING, FLANGE
-
317556509 WASHER SPECIALWASHER SPECIAL
-
323574208 BUSHING, SPINDLE HOUSINGBUSHING, SPINDLE HOUSING
-
337080306 FITTING, LUBE W/BALL CHECKFITTING, LUBE W/BALL CHECK
-
346230102-067 SHAFT, SPINDLE TRAILING (BLACK)SHAFT, SPINDLE TRAILING (BLACK)
-
355010158 BUSHING, PIVOTBUSHING, PIVOT
-
367080433 ZERK, FITTING THREADEDZERK, FITTING THREADED
-
375431486 BUSHING, RADIUS ROD PIVOT (OUTER)BUSHING, RADIUS ROD PIVOT (OUTER)
-
385010127 BUSHING, RADIUS RODBUSHING, RADIUS ROD
-
391822383-244 WELD, RADIUS ROD (LOWER)WELD, RADIUS ROD (LOWER)
-
407542711 NUT, JAMNUT, JAM
-
417061052 ROD END, RADIUS (LOWER/RIGHT)ROD END, RADIUS (LOWER/RIGHT)
-
425242578 BRACKET, RADIUS ROD (BOTTOM)BRACKET, RADIUS ROD (BOTTOM)
-
435242575-067 BRACE, PAN (LOWER)BRACE, PAN (LOWER)
-
447542703 NUT FLEXNUT FLEX
-
457542503 NUT, LOCKNUT, LOCK
-
465411095 BUSHING, PIVOT (7/16)BUSHING, PIVOT (7/16)
-
471821084 RADIUS ROD ASSY., FIXED (UPPER)RADIUS ROD ASSY., FIXED (UPPER)
