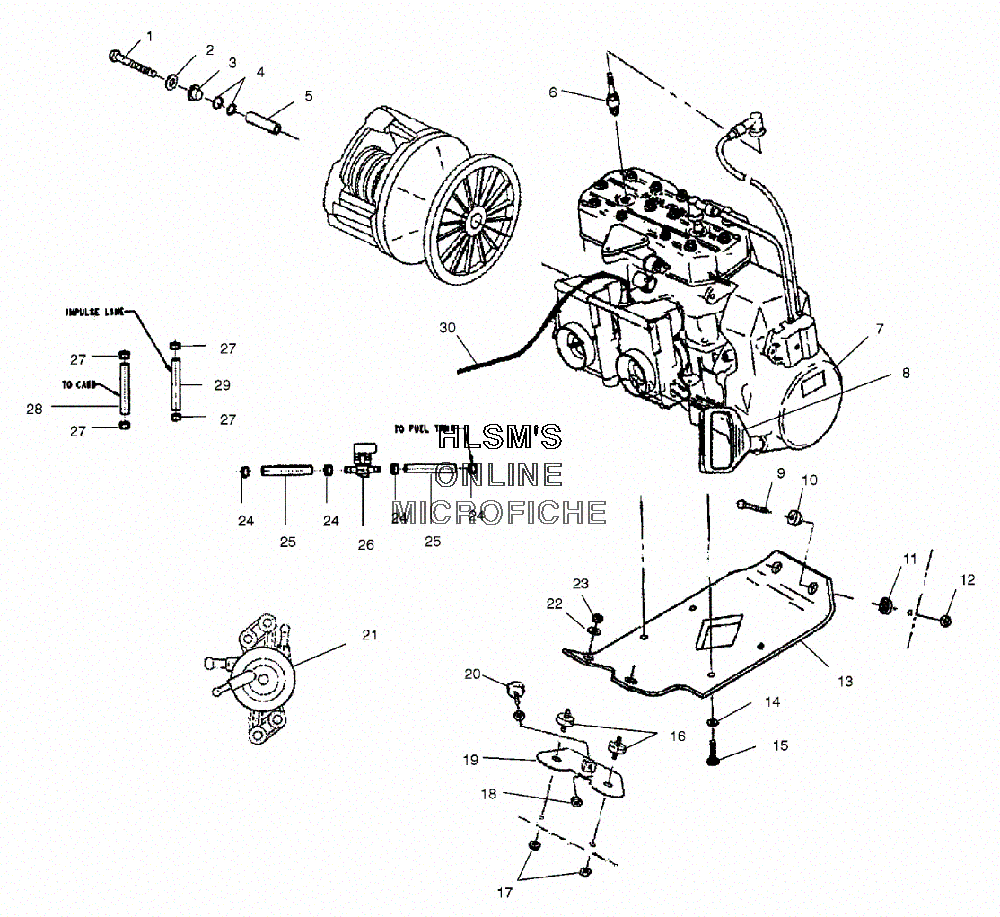

ENGINE MOUNTING W/ SHORT BLOCK для Polaris 500 CLASSIC TOURING (S02ST4BS) - 2002 года выпуска
-
№АртикулНазвание
-
17512565 BOLTBOLT
-
27575202 WASHER LOCKWASHER LOCK
-
35010278 WASHER, CLUTCH RETAINERWASHER, CLUTCH RETAINER
-
45410507 O-RINGO-RING
-
55020513 SPACER, CLUTCH BOLTSPACER, CLUTCH BOLT
-
63070166 SPARKPLUG (RN3C)SPARKPLUG (RN3C)
-
73086508 ENGINE, SHORT BLOCKENGINE, SHORT BLOCK
-
85431499-070 HANDLE, RECOIL (BLACK)HANDLE, RECOIL (BLACK)
-
97512530 SCREWSCREW
-
105411685 MOUNT, ENGINE RUBBER (TOP)MOUNT, ENGINE RUBBER (TOP)
-
115411686 MOUNT, ENGINE RUBBER (BOTTOM)MOUNT, ENGINE RUBBER (BOTTOM)
-
127542522 NUT, FLANGENUT, FLANGE
-
135131772 PLATE, MOTOR MOUNTPLATE, MOTOR MOUNT
-
147553101 WASHER LOCKWASHER LOCK
-
157512539 BOLTBOLT
-
163110061 MOUNT, ENGINEMOUNT, ENGINE
-
177547008 NUT, FLEXLOCKNUT, FLEXLOCK
-
187542414 NUT, HEXAGONNUT, HEXAGON
-
191012608 LIMITER, TORQUELIMITER, TORQUE
-
203110063 STOP, TORQUE (1.94 DIA)STOP, TORQUE (1.94 DIA)
-
213086998 FUEL PUMP ASSYFUEL PUMP ASSY
-
227555893 WASHERWASHER
-
237542451 NUT, NYLOCNUT, NYLOC
-
247080307 CLAMPCLAMP
-
258350018-600 TUBING, ETHER ERETHNE (160CM)TUBING, ETHER ERETHNE (160CM)
-
267052248 VALVE, FUEL (1/4'')VALVE, FUEL (1/4'')
-
277080003 CLAMP, HOSECLAMP, HOSE
-
288350017-600 FUEL LINE, ETHER (5/16'') (RED)FUEL LINE, ETHER (5/16'') (RED)
-
298450040-600 FUEL LINE (1/4 ID 600 CM.)FUEL LINE (1/4 ID 600 CM.)
-
307080770 CABLE, THROTTLECABLE, THROTTLE
