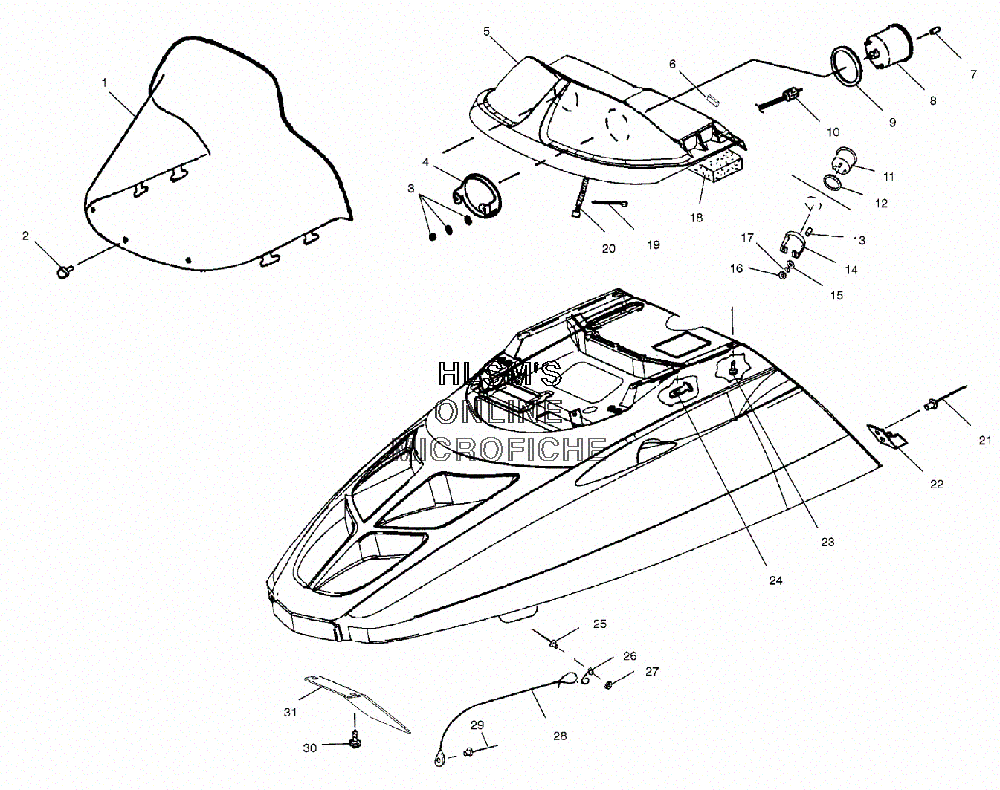

HOOD ASSEMBLY W/ WINDSHIELD для Polaris 500 CLASSIC TOURING (S02ST4BS) - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    5433667 WINDSHIELD 17''
    WINDSHIELD 17''
  • 2
    7621509 RIVET, PLASTIC LOC.
    RIVET, PLASTIC LOC.
  • 3
    3280158 NUT
    NUT
  • 3
    3280156 WASHER, SPLIT LOCK
    WASHER, SPLIT LOCK
  • 3
    3280157 WASHER, FLAT
    WASHER, FLAT
  • 4
    3280210 BRACKET, TACH/SPEEDOMETER (5'')
    BRACKET, TACH/SPEEDOMETER (5'')
  • 5
    2632188 INSTR, HOUSING, CLASSIC TRGW/REV (INCL. WARNING DECALS)
    INSTR, HOUSING, CLASSIC TRGW/REV (INCL. WARNING DECALS)
  • 6
    4040011 INDICATOR 'TEMP' WARNING
    INDICATOR 'TEMP' WARNING
  • 6
    2460876 HARNESS, JUMPER TEMP LIGHT
    HARNESS, JUMPER TEMP LIGHT
  • 7
    3280186 KNOB, TRIP ODOMETER THREADED (LEFT)
    KNOB, TRIP ODOMETER THREADED (LEFT)
  • 8
    3280328 SPEEDOMETER (5'') (120MPH) (WHITE)
    SPEEDOMETER (5'') (120MPH) (WHITE)
  • 8
    4030015 BULB TAILLIGHT/TACH/SPEEDOMETER
    BULB TAILLIGHT/TACH/SPEEDOMETER
  • 9
    3280209 CUSHION, TACH/SPEEDOMETER RUBBER
    CUSHION, TACH/SPEEDOMETER RUBBER
  • 10
    3280341 CABLE, SPEEDOMETER (90 IN)
    CABLE, SPEEDOMETER (90 IN)
  • 11
    3280334 GUAGE, FUEL 2'' BACKLIT
    GUAGE, FUEL 2'' BACKLIT
  • 11
    4060139 FUSE
    FUSE
  • 12
    3280230 CUSHION, FUELGAUGE RUBBER
    CUSHION, FUELGAUGE RUBBER
  • 13
    3280228 SPACER, BRACKET (FUELGAUGE)
    SPACER, BRACKET (FUELGAUGE)
  • 14
    3280229 BRACKET, FUELGAUGE (2'')
    BRACKET, FUELGAUGE (2'')
  • 15
    3280231 WASHER
    WASHER
  • 16
    3280232 NUT
    NUT
  • 17
    3280233 WASHER, SPLITLOCK
    WASHER, SPLITLOCK
  • 18
    5811625 FOAM, PREFILTER
    FOAM, PREFILTER
  • 19
    7080138 STRAP PANDUIT
    STRAP PANDUIT
  • 20
    2460732 HARNESS, HEADLIGHT
    HARNESS, HEADLIGHT
  • 21
    7621334 RIVET
    RIVET
  • 22
    5430733 CUP, HOOD LATCH
    CUP, HOOD LATCH
  • 23
    7517441 SCREW
    SCREW
  • 24
    5410970 RETAINER, WINDSHIELD
    RETAINER, WINDSHIELD
  • 25
    7661084 RIVET
    RIVET
  • 26
    5242893 CLIP, PIGTAIL
    CLIP, PIGTAIL
  • 27
    7555904 BURR, RIVET
    BURR, RIVET
  • 28
    7080764 CABLE, HOOD HYBRID
    CABLE, HOOD HYBRID
  • 29
    7621402 POP RIVET
    POP RIVET
  • 30
    7512068 SCREW
    SCREW
  • 31
    5243393 DEFLECTOR, AIR
    DEFLECTOR, AIR
