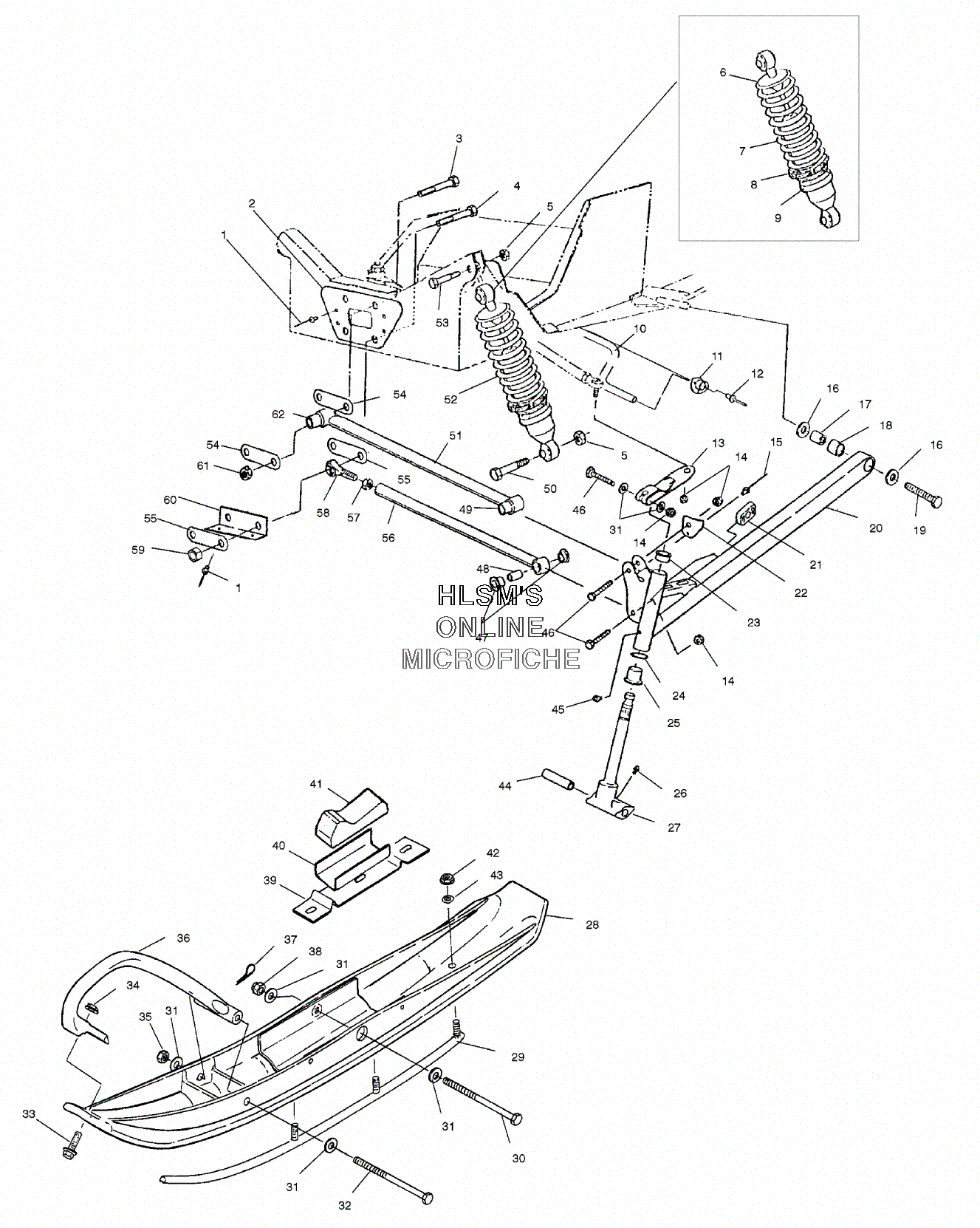

SUSPENSION - FRONT W/ SKI для Polaris TRAIL RMK (S01SR5BS) - 2001 года выпуска
-
№АртикулНазвание
-
17661637 RIVET, INTERLOCK ZRIVET, INTERLOCK Z
-
25211589-067 BRACE, BLKHD/STRG (BLACK)BRACE, BLKHD/STRG (BLACK)
-
37512582 BOLTBOLT
-
47512684 BOLTBOLT
-
57542439 NUT, NYLOKNUT, NYLOK
-
65630580 RETAINER, SPRING, SLOTTEDRETAINER, SPRING, SLOTTED
-
77041552-067 SPRING, COMP, IFSSPRING, COMP, IFS
-
85431734 RING, SPRING PRELOAD ADJUSTRING, SPRING PRELOAD ADJUST
-
91500063 RETAINER, SPRING, BODY, THREADEDRETAINER, SPRING, BODY, THREADED
-
105224757-067 BAR SWAY-38X7,9/16,BLKBAR SWAY-38X7,9/16,BLK
-
115432412 BUSHING, SWAY BARBUSHING, SWAY BAR
-
127621477 RIVET,RIVET,
-
135241560-067 ARM, STRG, BLKARM, STRG, BLK
-
147542403 NUT LOCKNUT LOCK
-
157661643 RIVET-3/16-.214-.420RIVET-3/16-.214-.420
-
167555721 WASHERWASHER
-
175010310 TUBE, BUSHINGTUBE, BUSHING
-
185410872 PIVOT, TRLG.ARM, RUBBERPIVOT, TRLG.ARM, RUBBER
-
197512557 BOLTBOLT
-
201822506 TRAILING ARM ASSY. (INCL. 17, 18) (LEFT, BLACK)TRAILING ARM ASSY. (INCL. 17, 18) (LEFT, BLACK)
-
201822507 TRAILING ARM BULK ASSY. (INCL. 17, 18) (RIGHT)TRAILING ARM BULK ASSY. (INCL. 17, 18) (RIGHT)
-
215432674 SLIDE, SWAYBAR, 9/16SLIDE, SWAYBAR, 9/16
-
225241569-067 STOP, STEERING (BLACK/LEFT)STOP, STEERING (BLACK/LEFT)
-
225241570-067 STOP, STEERING (BLACK/RIGHT)STOP, STEERING (BLACK/RIGHT)
-
233573909 BUSHING, FLANGEBUSHING, FLANGE
-
247556509 WASHER SPECIALWASHER SPECIAL
-
253574208 BUSHING, SPINDLE HOUSINGBUSHING, SPINDLE HOUSING
-
267080306 FITTING, LUBE. W/BALL CHECKFITTING, LUBE. W/BALL CHECK
-
276230102-067 SHAFT, SPINDLE TRAILING (BLACK)SHAFT, SPINDLE TRAILING (BLACK)
-
281820783-070 COMP, SKI BLANK, W/SS SDL (BLACK)COMP, SKI BLANK, W/SS SDL (BLACK)
-
292872566 SKAG, 3'' 90Ш COMP (PAIR)SKAG, 3'' 90Ш COMP (PAIR)
-
307512596 SCREWSCREW
-
317555832 WASHERWASHER
-
327515514 BOLTBOLT
-
337515307 BOLTBOLT
-
347542321 NUT LOCKNUT LOCK
-
357542452 NUT FLEXLOCNUT FLEXLOC
-
365434165-070 TOE, PLASTIC SKI (BLACK)TOE, PLASTIC SKI (BLACK)
-
377661209 PIN, COTTERPIN, COTTER
-
387542438 NUT, CASTLENUT, CASTLE
-
395241912-067 SUPPORT, SKI RUBBER (BLACK)SUPPORT, SKI RUBBER (BLACK)
-
405243824 RETAINER, SKI RUBBERRETAINER, SKI RUBBER
-
415411094 STOP, SKI RUBBERSTOP, SKI RUBBER
-
427542324 NUTNUT
-
437555843 WASHER, WROUGHTWASHER, WROUGHT
-
445010158 BUSHING, PIVOTBUSHING, PIVOT
-
457080433 ZERK, FITTING, THREADEDZERK, FITTING, THREADED
-
467517583 SCREWSCREW
-
475431486 BUSH, RADIUS ROD PIVOT (OUTER)BUSH, RADIUS ROD PIVOT (OUTER)
-
485010127 BUSHING RADIUS RODBUSHING RADIUS ROD
-
495411099 BUSHING, RADIUS ROD PIVOT, 3/8BUSHING, RADIUS ROD PIVOT, 3/8
-
507515433 BOLTBOLT
-
511822420 ROD, RADIUS UP., FIXEDROD, RADIUS UP., FIXED
-
527041544 SHOCK, GAS, IFSSHOCK, GAS, IFS
-
537515415 BOLTBOLT
-
545211344 STRAP, SPACER (TOP)STRAP, SPACER (TOP)
-
555211345 STRAP, SPACER (BOTTOM)STRAP, SPACER (BOTTOM)
-
561822444-067 ROD, RADIUS (LOWER/BLACK)ROD, RADIUS (LOWER/BLACK)
-
577542711 NUT, JAMNUT, JAM
-
587061027 ROD END, RADIUS (RIGHT/LOWER)ROD END, RADIUS (RIGHT/LOWER)
-
597542703 NUT FLEXNUT FLEX
-
605242578 BRACKET, RADIUS ROD (BOTTOM)BRACKET, RADIUS ROD (BOTTOM)
-
617542503 NUT, LOCKNUT, LOCK
-
625411095 BUSHING, PIVOT, 7/16BUSHING, PIVOT, 7/16
