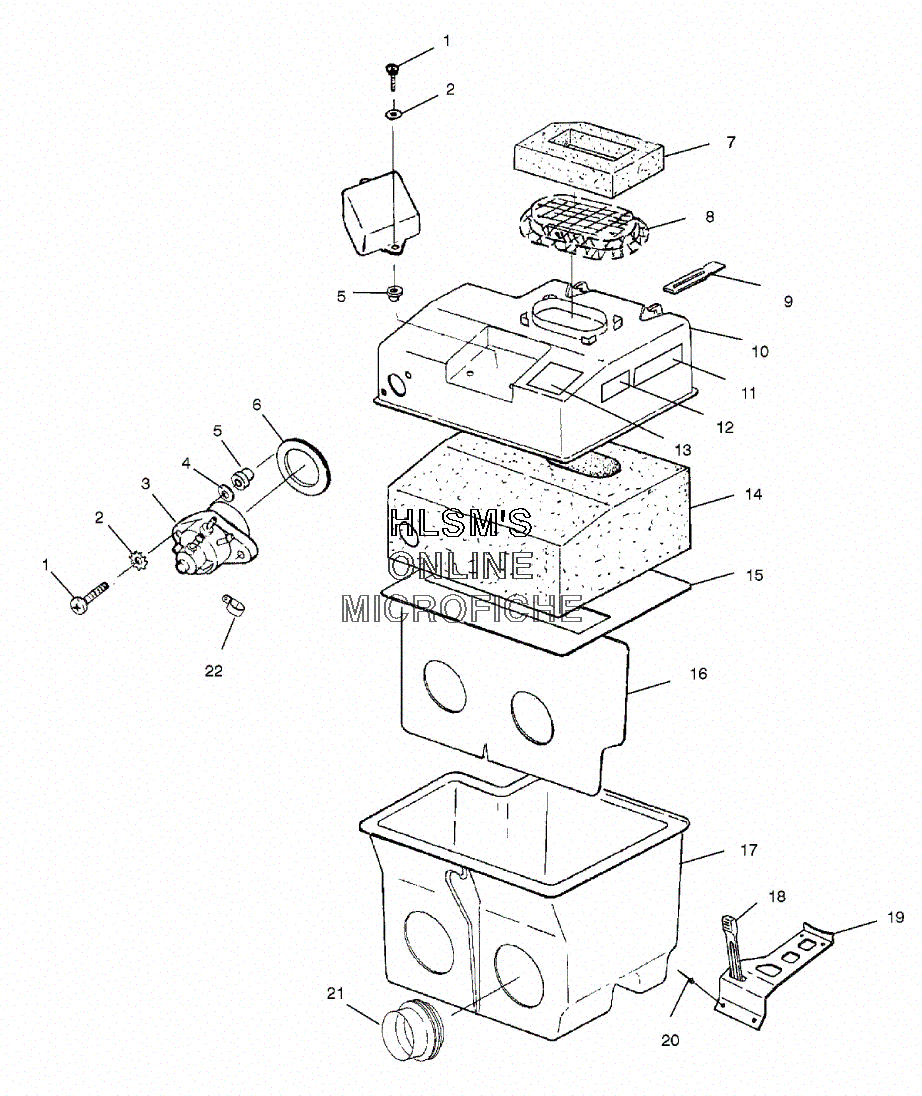

AIR BOX для Polaris TRAIL RMK (S01SR5BS) - 2001 года выпуска
-
№АртикулНазвание
-
17512222 SCREWSCREW
-
27552604 WASHERWASHER
-
47555843 WASHER, WROUGHTWASHER, WROUGHT
-
57541923 NUT, WELLNUT, WELL
-
65410982 GROMMET, ACCS.GROMMET, ACCS.
-
75811606 FOAM, AIRBOX, CHIMNEY HYB.FOAM, AIRBOX, CHIMNEY HYB.
-
85243219 MESH, WIRE FORMEDMESH, WIRE FORMED
-
95411075 RETAINER, TABRETAINER, TAB
-
105433591 TOP, SILENCER INTAKE, ACCSTOP, SILENCER INTAKE, ACCS
-
117073820 DECAL, ADJUST DRIVEN CLUTCHDECAL, ADJUST DRIVEN CLUTCH
-
127073426 DECAL, GREASINGDECAL, GREASING
-
137075351 DECAL, CAUTION, AIRBOXDECAL, CAUTION, AIRBOX
-
145811648 FOAM, AIRBOX, TOP, ACCS.FOAM, AIRBOX, TOP, ACCS.
-
155850134 PLATE, SILENCER INTAKEPLATE, SILENCER INTAKE
-
165850139 PLATE, SILENCER INTAKE, VERT.PLATE, SILENCER INTAKE, VERT.
-
175432928 SILENCER, INTAKE DRILLEDSILENCER, INTAKE DRILLED
-
185411129 STRAP, TIE, DOWNSTRAP, TIE, DOWN
-
195241691 BRAKET, SILENCER MOUNT (LOWER)BRAKET, SILENCER MOUNT (LOWER)
-
207661637 RIVET, INTERLOCK ZRIVET, INTERLOCK Z
-
215411467 BOOT, CARBBOOT, CARB
-
227080683 CLAMP, HOSECLAMP, HOSE
