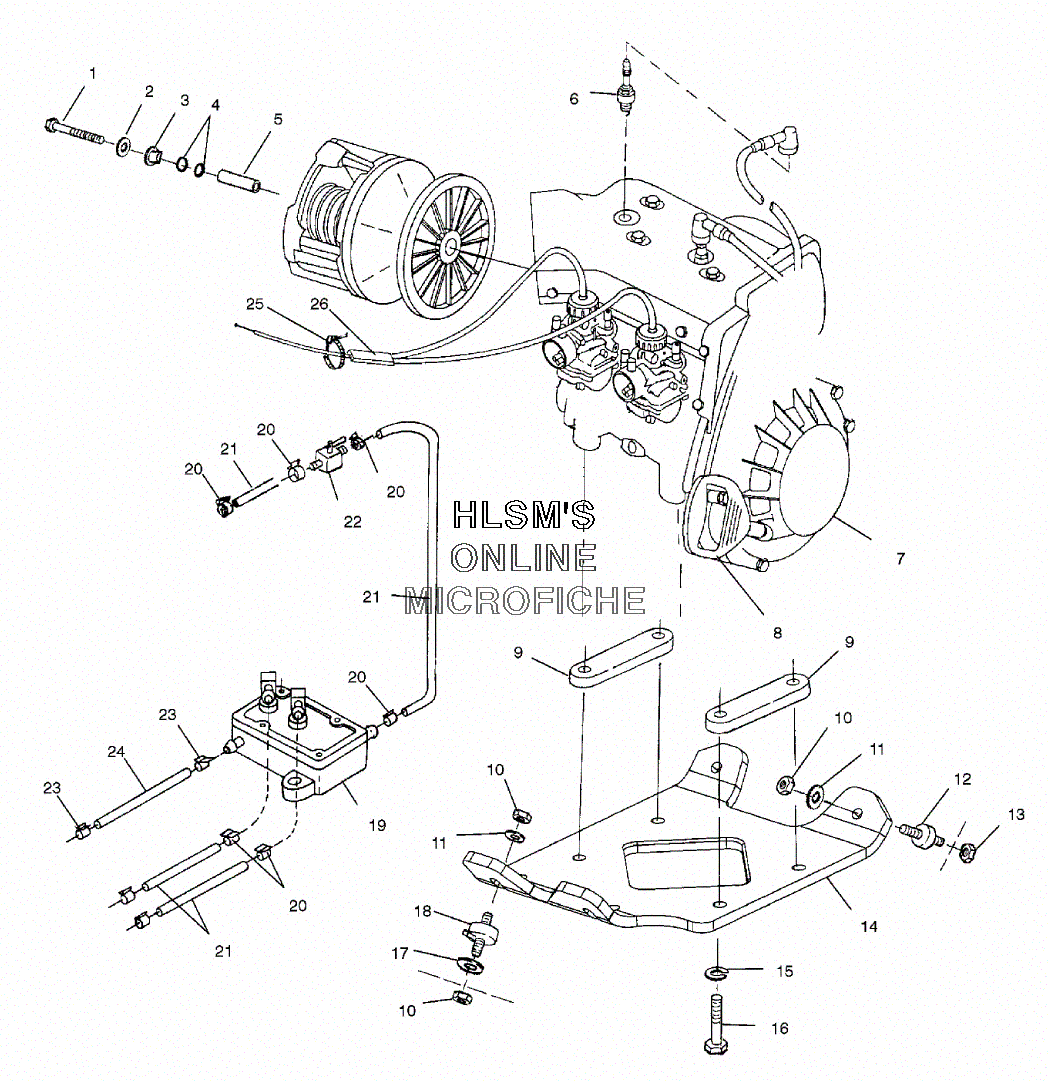

ENGINE MOUNTING W/ SHORT BLOCK для Polaris TRAIL RMK (S01SR5BS) - 2001 года выпуска
-
№АртикулНазвание
-
17517776 SCREWSCREW
-
27575202 WASHER LOCKWASHER LOCK
-
35010287 WASHER, CLUTCH RETAINWASHER, CLUTCH RETAIN
-
45410507 O-RINGO-RING
-
55020513 SPACER, CLUTCH BOLTSPACER, CLUTCH BOLT
-
63070163 SPARKPLUG BR9ESSPARKPLUG BR9ES
-
73085618 ENGINE SHORT BLOCKENGINE SHORT BLOCK
-
85431499 HANDLE, RECOIL (BLACK)HANDLE, RECOIL (BLACK)
-
95243195 SPACER, ENGINE, .50SPACER, ENGINE, .50
-
107547008 NUT, FLEXLOCKNUT, FLEXLOCK
-
117555893 WASHERWASHER
-
123021099 MOUNT, ENGINE 3/8-16, 3-TABMOUNT, ENGINE 3/8-16, 3-TAB
-
137542402 NUT FLEX LOCNUT FLEX LOC
-
145132001 PLATE, MOTOR MOUNTPLATE, MOTOR MOUNT
-
157553101 WASHER LOCKWASHER LOCK
-
157553101 WASHER LOCKWASHER LOCK
-
167517442 BOLTBOLT
-
177555915 WASHER, FLATWASHER, FLAT
-
183110062 MOUNT, ENGINEMOUNT, ENGINE
-
207080307 CLAMPCLAMP
-
218350018-600 TUBING, ETHER ERETHNE 160CM SVCTUBING, ETHER ERETHNE 160CM SVC
-
227052219 VALVE, FUEL SHUT-OFF, FANVALVE, FUEL SHUT-OFF, FAN
-
237080003 CLAMP, HOSECLAMP, HOSE
-
248450040-600 FUEL LINE, 1/4 ID (600 CM.)FUEL LINE, 1/4 ID (600 CM.)
-
257080138 STRAP PANDUITSTRAP PANDUIT
-
267080888 CABLE, THROTTLECABLE, THROTTLE
