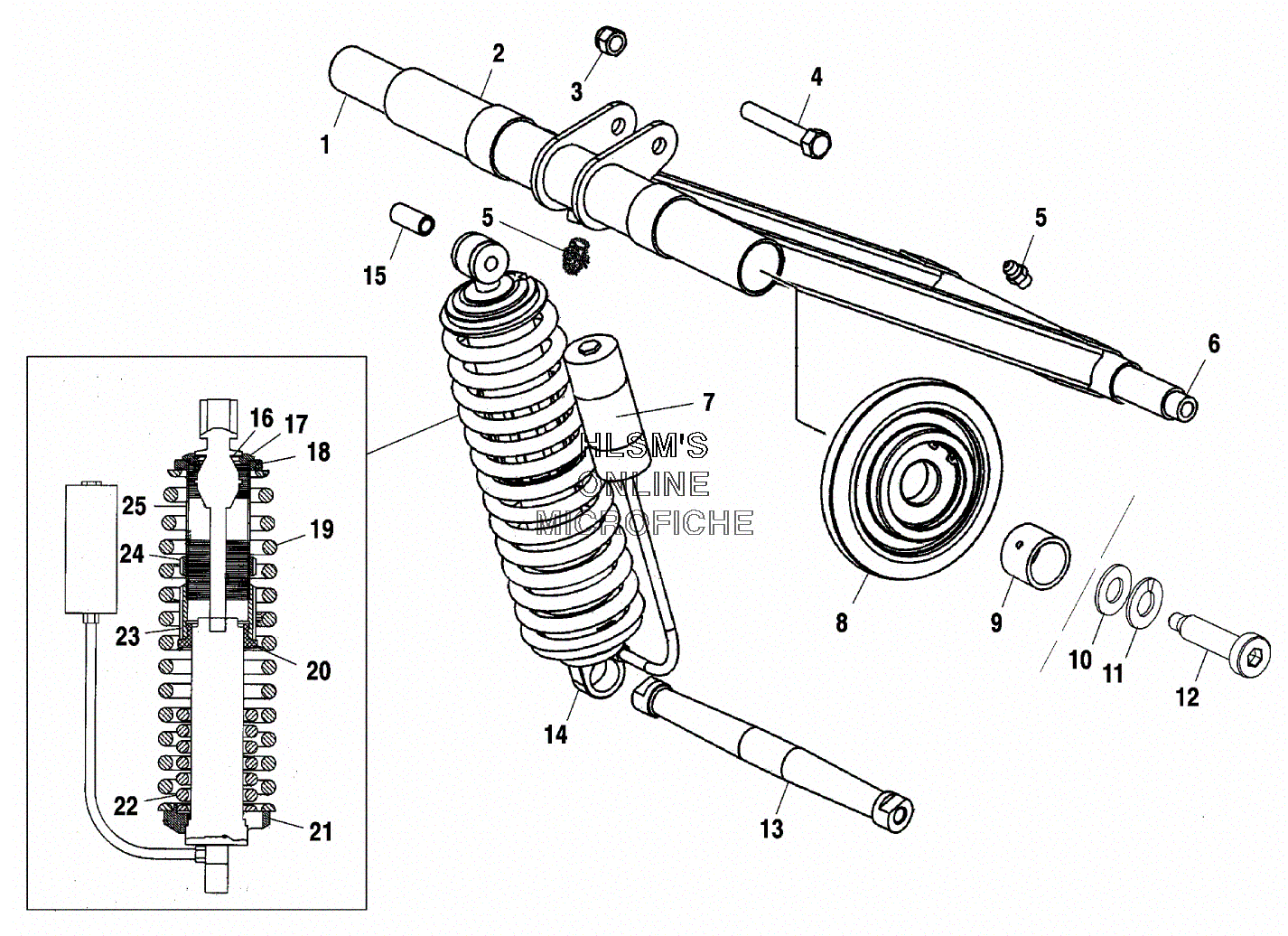

SUSPENSION - REAR TORQUE ARM ASSEMBLY для Polaris 800 LE (S01ND8BS) - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    5132578 SHAFT, TORQUE ARM (UPPER)
    SHAFT, TORQUE ARM (UPPER)
  • 2
    1541527-216 WELD, TORQUE ARM (YELLOW)
    WELD, TORQUE ARM (YELLOW)
  • 3
    7542439 NUT, NYLOK
    NUT, NYLOK
  • 4
    7515415 BOLT
    BOLT
  • 5
    7080424 FITTING, LUBE
    FITTING, LUBE
  • 6
    5133093 SHAFT, RTA LOWER
    SHAFT, RTA LOWER
  • 7
    7079432 DECAL (FOX)
    DECAL (FOX)
  • 8
    1590308 WHEEL ASSY.
    WHEEL ASSY.
  • 8
    3514330 BEARING
    BEARING
  • 8
    7710486 WHEEL ASSY.
    WHEEL ASSY.
  • 9
    5132582 COLLAR, BEARING LOCK (REAR)
    COLLAR, BEARING LOCK (REAR)
  • 9
    7512257 SCREW SET
    SCREW SET
  • 10
    7555984 WASHER
    WASHER
  • 11
    7552614 WASHER, LOCK
    WASHER, LOCK
  • 12
    7517815 SCREW
    SCREW
  • 14
    7042216 SHOCK, REAR TRACK
    SHOCK, REAR TRACK
  • 15
    5333905 SLEEVE
    SLEEVE
  • 16
    5244747 CAP, ICE
    CAP, ICE
  • 17
    5020618 RETAINER, SPRING SLOTTED
    RETAINER, SPRING SLOTTED
  • 18
    5132645 NUT, PRELOAD
    NUT, PRELOAD
  • 19
    7041935-216 SPRING, REAR SHOCK (YELLOW)
    SPRING, REAR SHOCK (YELLOW)
  • 20
    5433882 BUSHING, OVER LOAD DEPRESSOR
    BUSHING, OVER LOAD DEPRESSOR
  • 21
    5133032 RETAINER, REAR SPRING
    RETAINER, REAR SPRING
  • 22
    7041936-067 SPRING (REAR/BLACK)
    SPRING (REAR/BLACK)
  • 23
    5132625 RING, ADJUSTER
    RING, ADJUSTER
  • 24
    5132643 NUT, RING ADJUSTER
    NUT, RING ADJUSTER
  • 25
    5132794 SLEEVE, OVERLOAD DEPRESSOR
    SLEEVE, OVERLOAD DEPRESSOR
